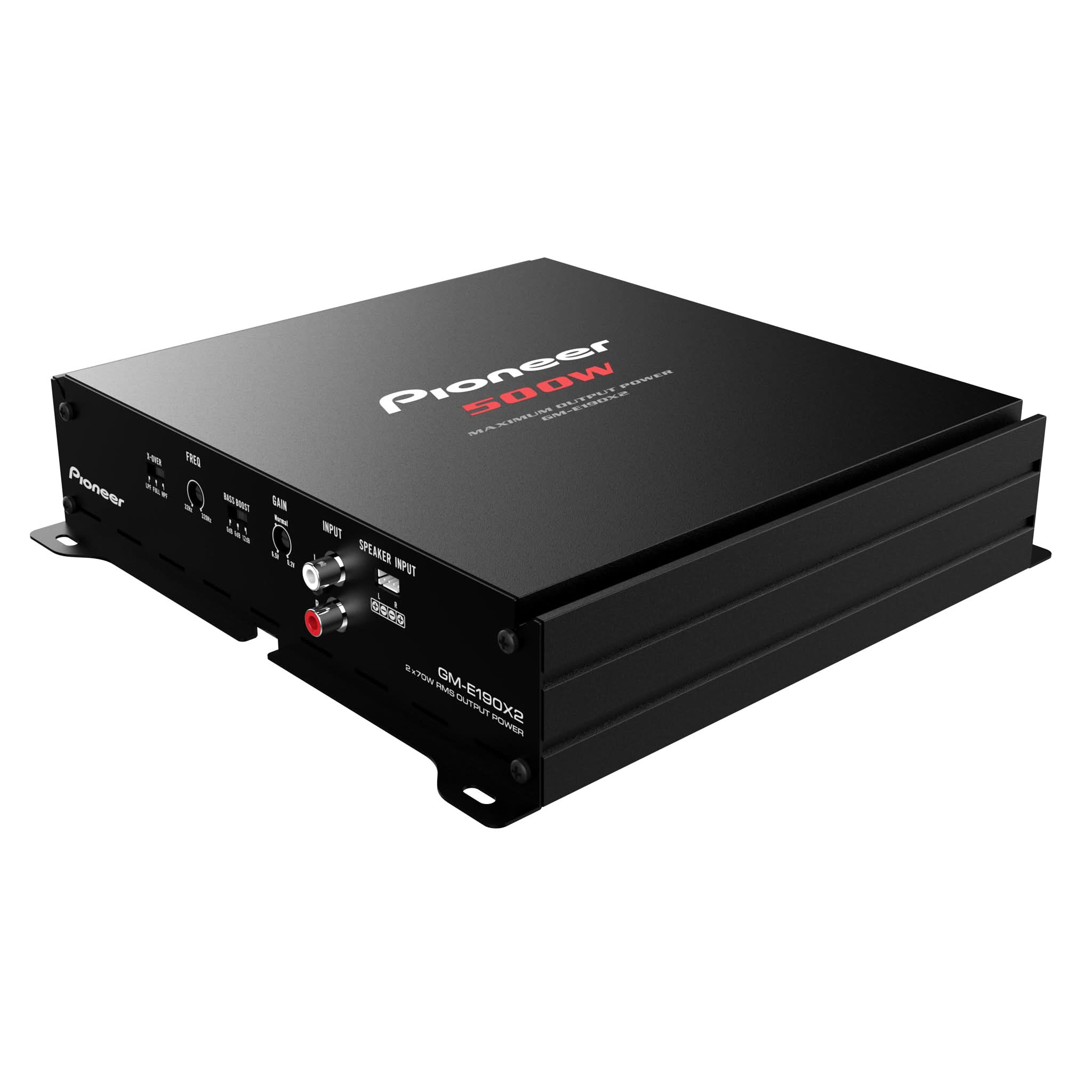

2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier
Features
500 Max Power (Bridged 4 ohm)
Variable High Pass and Low-Pass Filters
Adjustable Bass Boost
Improved Design Circuitry
| Bridgable Yes | Grounding System Negative |
| Power Source 14.4v | Protection Control system Yes |
| Terminal Type Screw | Unit Weight 4 lbs 1 oz |
| Avg Current Consumption (Amps X #Ch) 5A x 2-channel – 4 ohm, 7.5A x Mono channel – 4 ohm bridged, 7.5A x 2-channel – 2 ohm | Bass Boost 50 Hz – Frequency, 0 dB, 6 dB, 12 dB – Level |
| Continuous-Power-Output 70w x 2-channel – 4 ohm, 95w x 2-channel – 2 ohm, 190w x Mono channel – 4 ohm bridged | Crossover Network Channel LPF – 32 Hz to 320 Hz (A/B Ch), HPF – 32 Hz to 320 Hz (A/B Ch) |
| Crossover Network Channel Slope -12db/oct (A/B CH) | Frequency Response Channel 10 Hz to 40 kHz (+0 dB, -3 dB) |
| Maximum Power Output 125w x 2-channel – 4 ohm, 500 W x Mono Channel – 4 ohm bridged | Speaker Line Input Sensor Yes |
