1-Channel – Class D, 2400 W Max Power – Digital Amplifier
Features
1200W x 1 RMS @ 1 ohm (1%THD)
800W x 1 RMS @ 2 ohms (1%THD)
500W x 1 RMS @ 4 ohms (1%THD)
Variable Low-Pass Filters
Gold-plated RCA Terminals
Wired Bass Remote included
- GM-DX874
4-Channel – Hi-Res Certified, Class FD, 1200 W Max Power – Digital Amplifier $220.00$270.00 Add to Compare
- GM-A6704
4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $140.00 Add to Compare
- GM-DX871
1-Channel – Class D, 1600 W Max Power – Digital Amplifier $200.00$250.00 Add to Compare
- GM-A3702
2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier $85.00 Add to Compare
- GM-A5702
2-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $130.00 Add to Compare
- GM-A4704
4-Channel – Class AB, 520 W Max Power – Bridgeable Amplifier $130.00 Add to Compare
- GM-DX975
5-Channel – Hi-Res Certified, Class FD, 2000 W Max Power – Digital Amplifier $550.00 Add to Compare
- GM-DX104
4-Channel – Hi-Res Certified, Class FD, 400 W Max Power – Digital Compact Amplifier $270.00 Add to Compare
- GM-E190X2
2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier $100.00 Add to Compare
- GM-E360X4
4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $124.00 Add to Compare

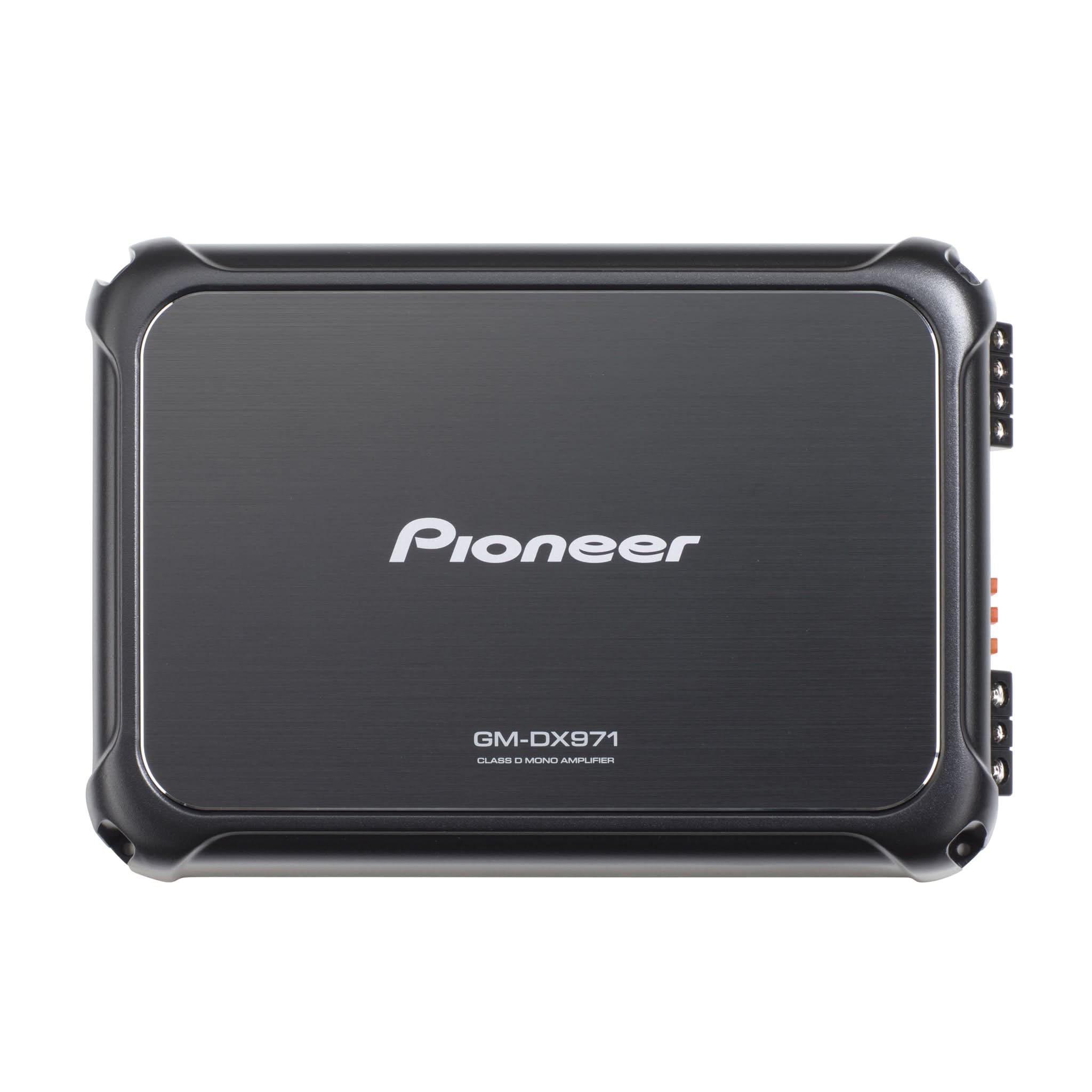

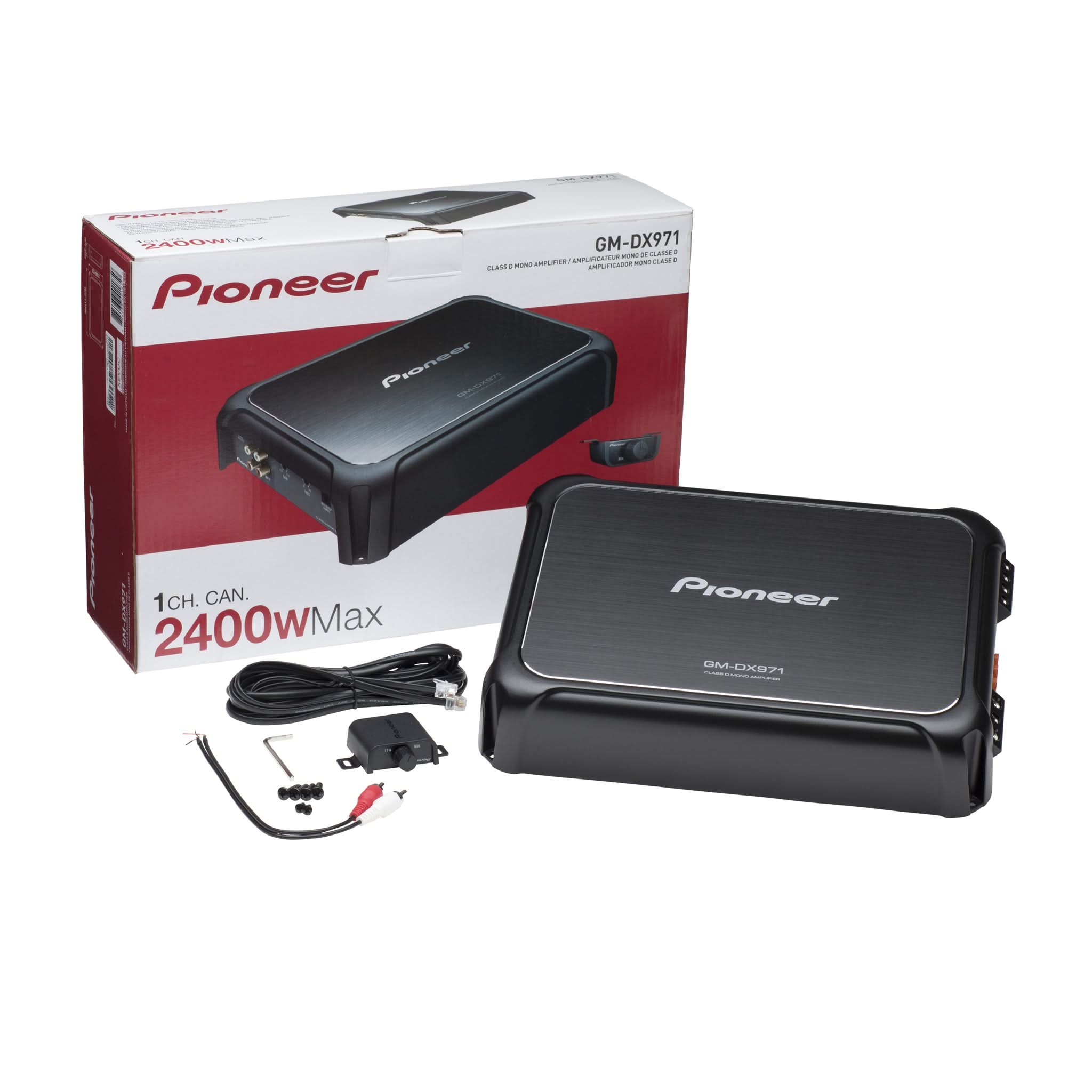

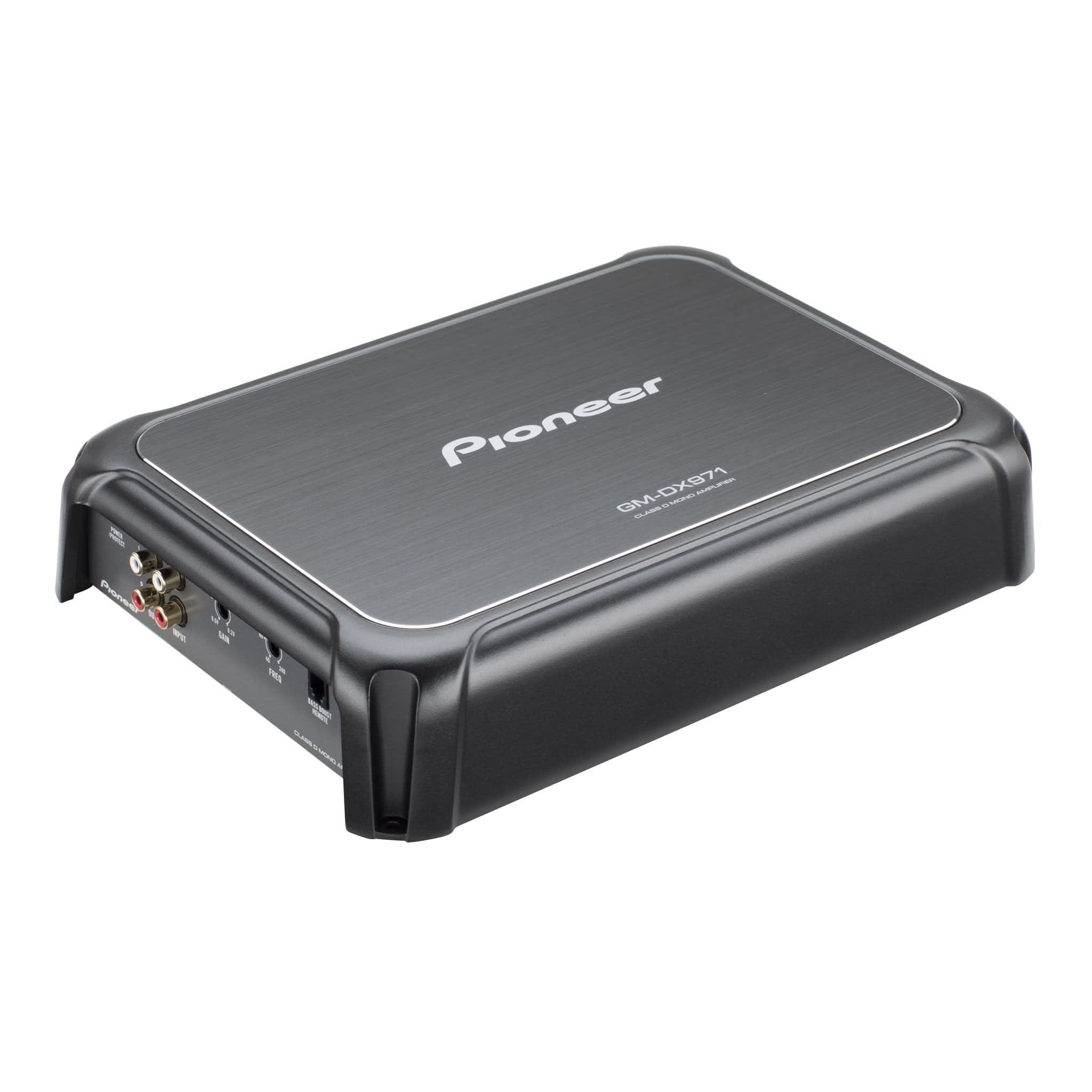

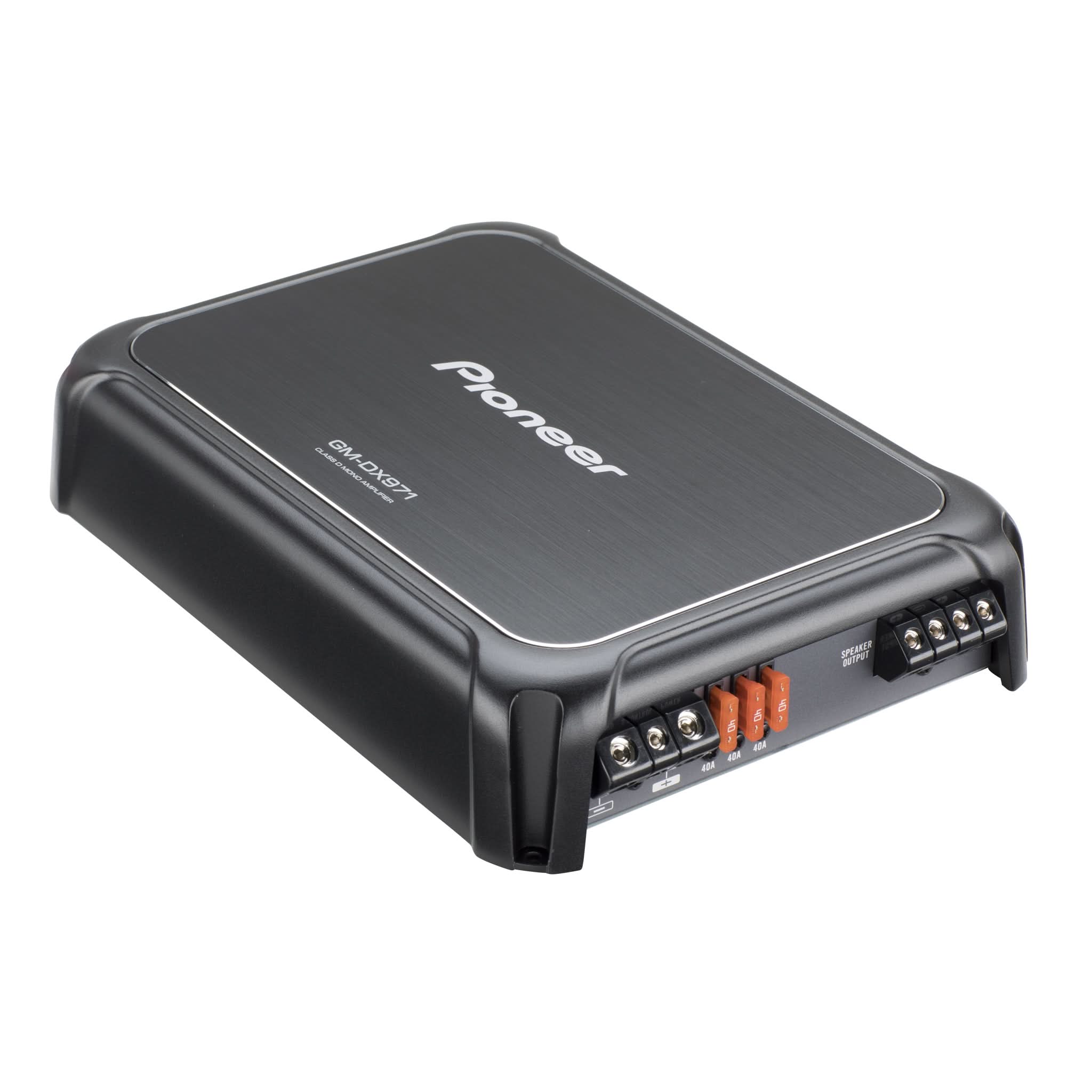

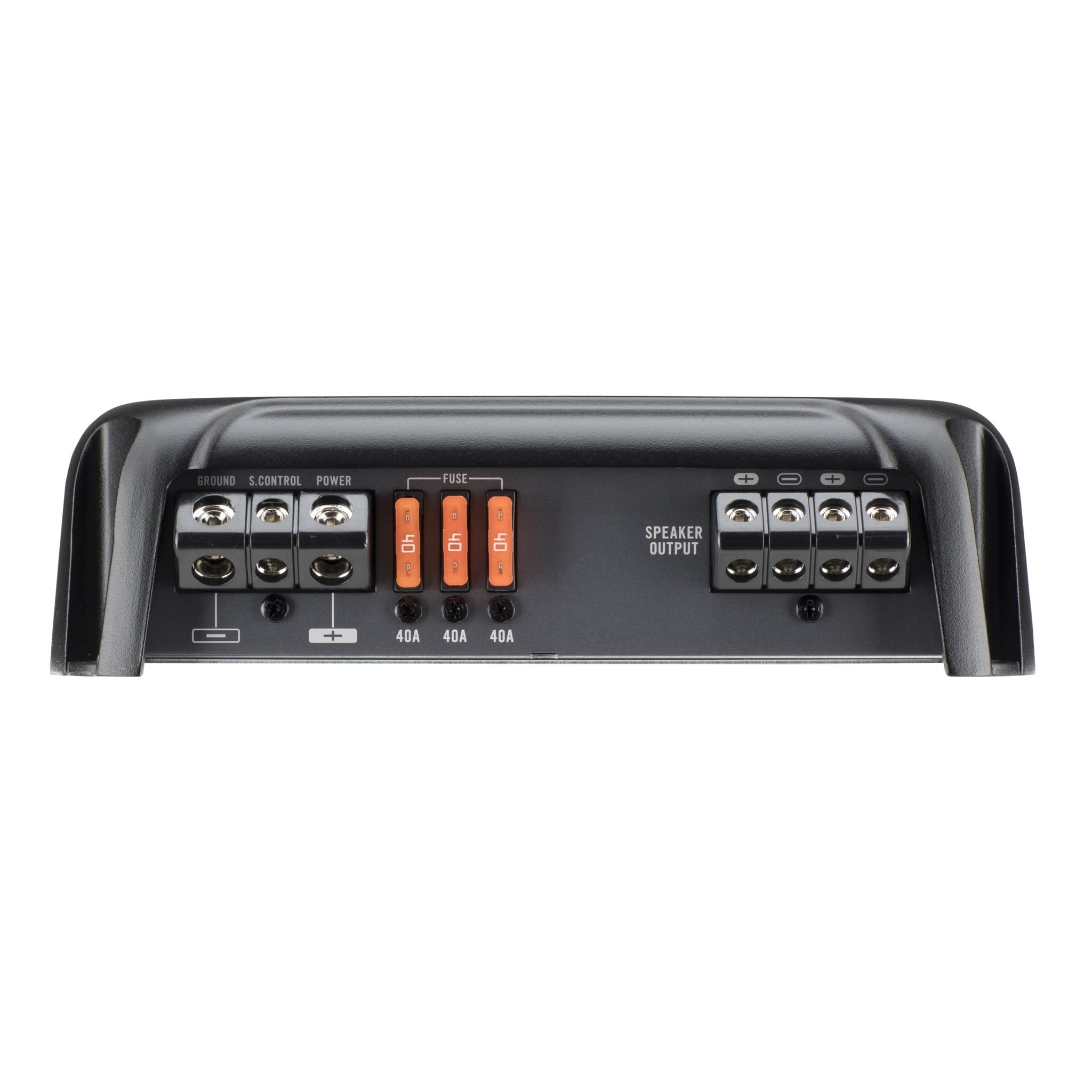

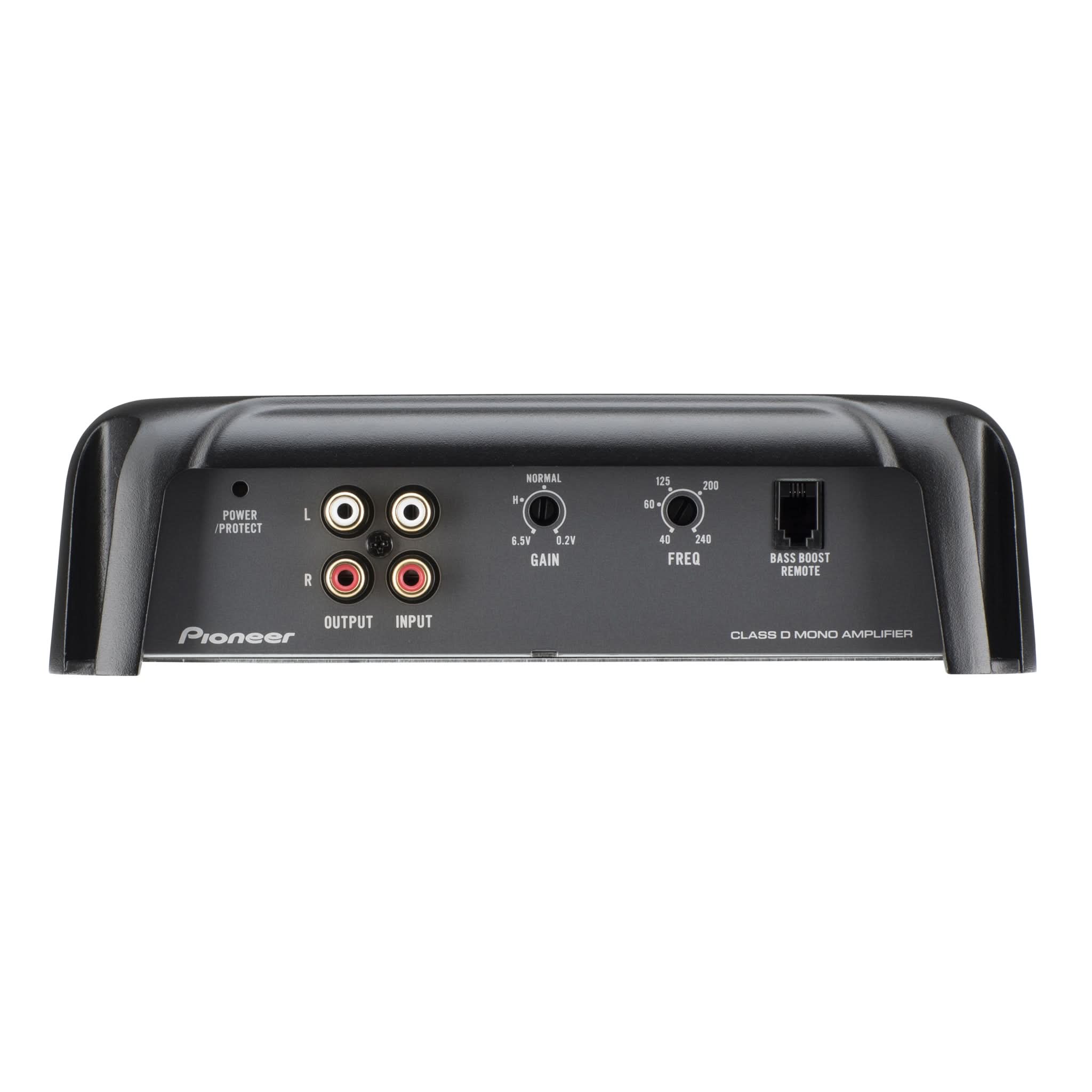

GM-DX971
Regular price $470.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Bass Boost Remote Yes | Class D |
| Grounding System Negative | High Quality Audio Components Yes |
| Power Source 14.4V (10.8 V to 15.1 V allowable) | Protection Control system Yes |
| Terminal Type Block | Unit Weight 6.8 lbs |
| Allowable Load Impedance 1 ohm to 8 ohm allowable | Avg Current Consumption (Amps X #Ch) 3.5 A x 1-Channel – 4 Ohm, 7.5 A x 1-Channel – 1 Ohm, 5.1 A x 1-Channel – 2 Ohm |
| Bass Boost 50 Hz – Frequency | Continuous-Power-Output 500 W x 1-Channel – 4 Ohm, 1200 W x 1-Channel – 1 Ohm, 800 W x 1-Channel – 2 Ohm |
| Crossover Network Subwoofer Channel LPF – 40Hz-240Hz | Crossover Network Subwoofer Slope -12 dB/oct |
| Frequency Response – Sub Channel 10 Hz to 240 Hz | Fuse Rating 40A x 3 |
| Maximum Power Output 1000 W x 1-Channel (4 Ohm), 2400 W x 1-Channel (1 ohm) | Rca Inputs 1-Channel (Mono) |
| Speaker Line Input Sensor Yes | Thd – Subwoofer =/< 1% ( 20 Hz to 240 Hz) |
