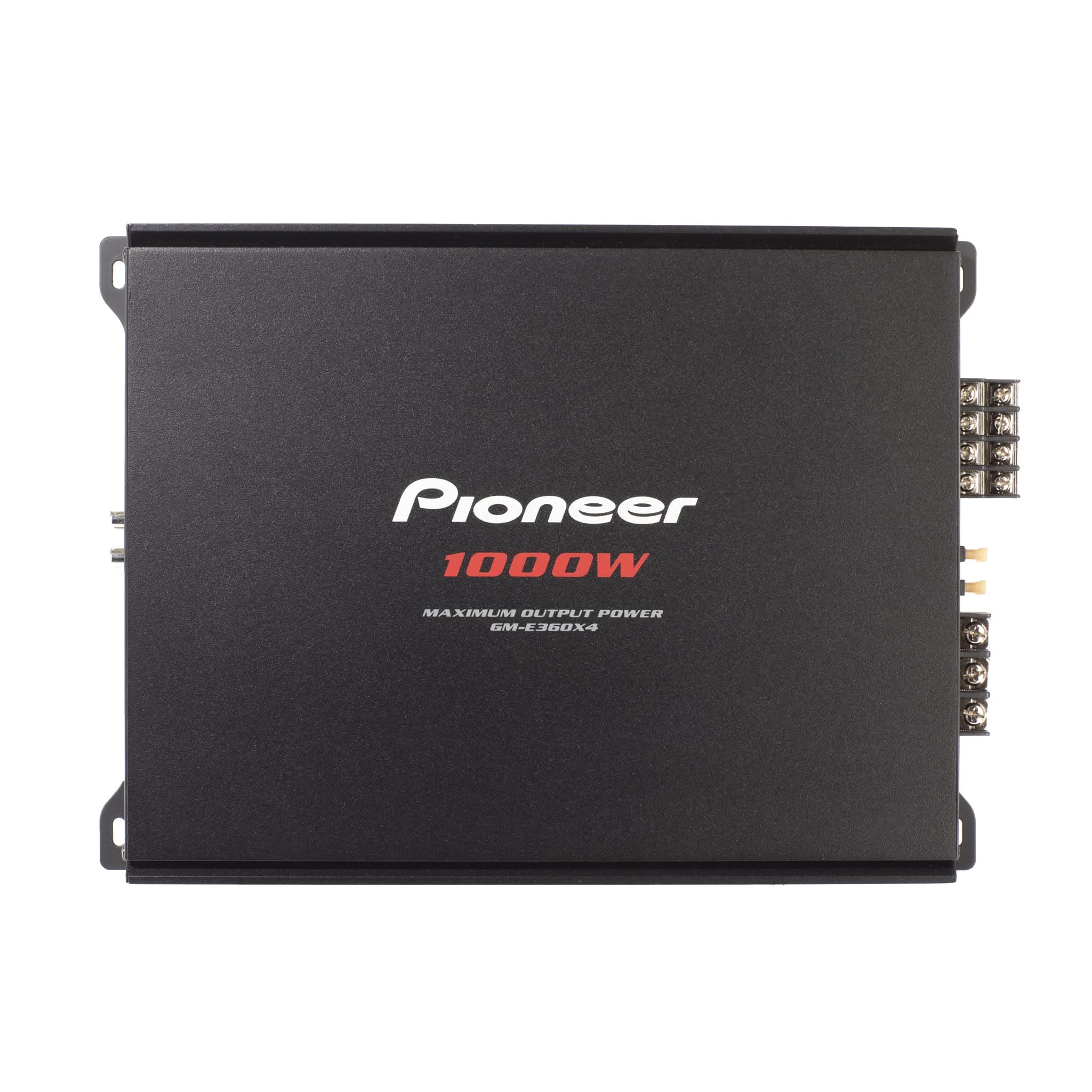

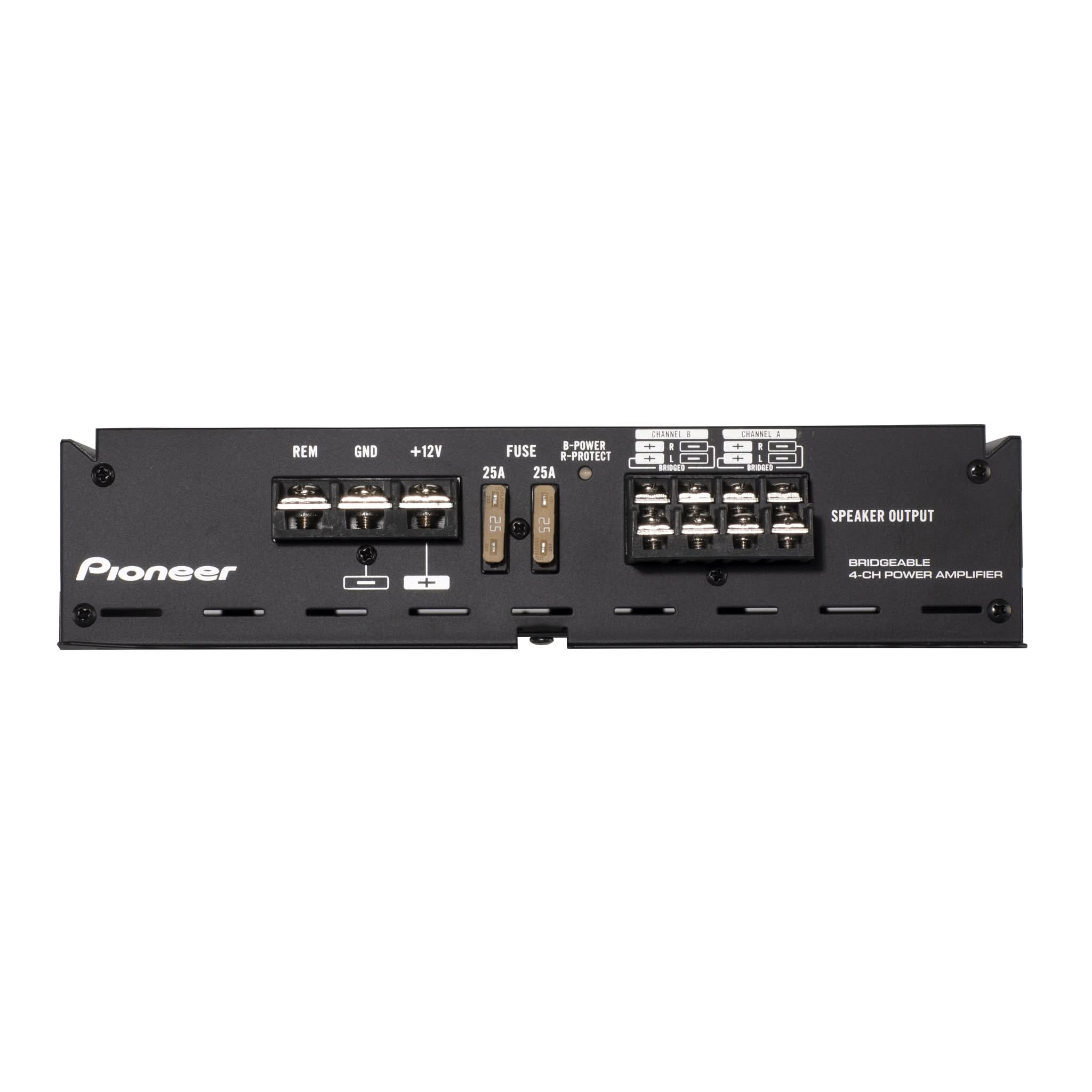

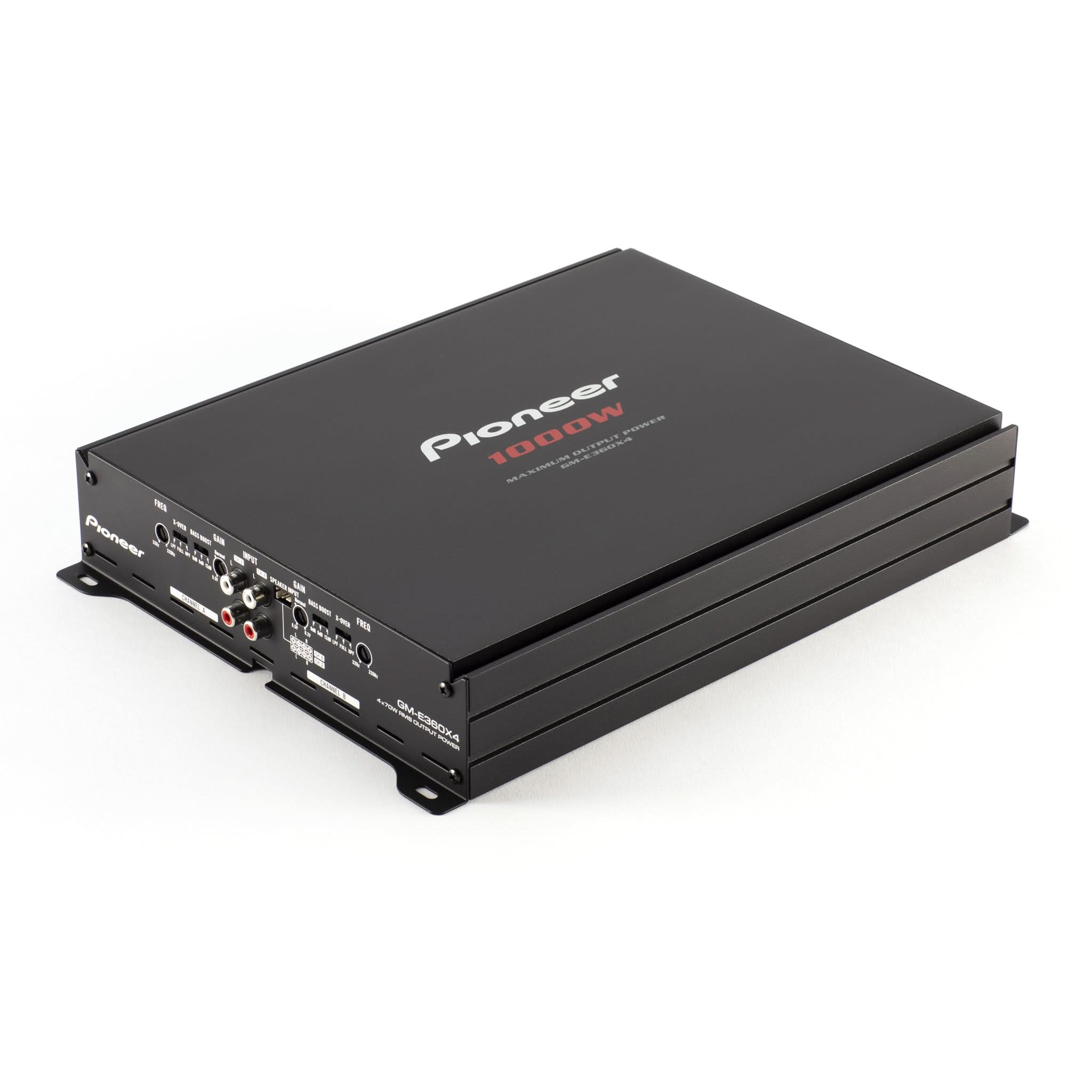

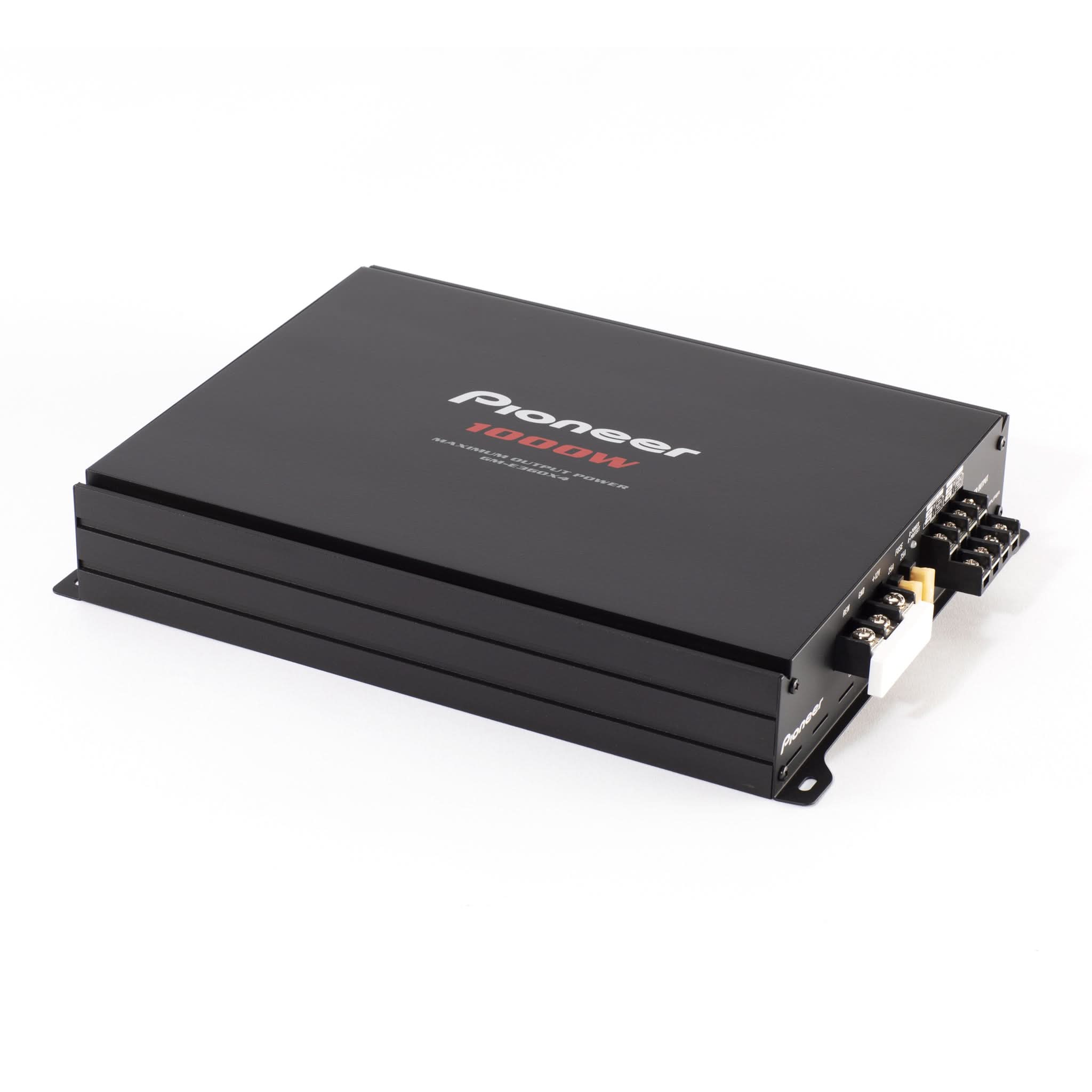

4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier
Features
1000 Max Power
Variable High Pass and Low-Pass Filters
Adjustable Bass Boost
Improved Design Circuitry
| Bridgable Yes | Grounding System Negative |
| Power Source 14.4v | Protection Control system Yes |
| Terminal Type Screw | Unit Weight 5 lbs 10 oz |
| Avg Current Consumption (Amps X #Ch) 10 A x 4-Channel – 4 Ohm, 15 A x 4-Channel – 2 Ohm, 15 A x 2-Channel – 4 Ohm | Bass Boost 50 Hz – Frequency, 0 dB, 6 dB, 12 dB – Level |
| Continuous-Power-Output 70 W x 4-Channel – 4 Ohm, 90 W x 4-Channel – 2 Ohm, 150 W x 2-Channel – 4 Ohm Bridged | Crossover Network Channel LPF – 32 Hz to 320 Hz (A/B Ch), HPF – 32 Hz to 320 Hz (A/B Ch) |
| Crossover Network Channel Slope -12db/oct (A/B CH) | Frequency Response Channel 10 Hz to 40 kHz (+0 dB, -3 dB) |
| Maximum Power Output 125 W x 4-Channel (4 Ohm), 500 W x 2-Channel (4 Ohm Bridged) | Speaker Line Input Sensor Yes |
