5-Channel – Hi-Res Certified, Class FD, 2000 W Max Power – Digital Amplifier
Features
Hi-Res Audio Certified
75Wx4 RMS + 350Wx1 RMS @ 4 ohms (1%THD)
150Wx4 MAX + 700Wx1 MAX @ 4 ohms (1%THD)
Variable High Pass and Low-Pass Filters
Gold-plated RCA Terminals
Wired Bass Remote included
- GM-DX874
4-Channel – Hi-Res Certified, Class FD, 1200 W Max Power – Digital Amplifier $220.00$270.00 Add to Compare
- GM-A6704
4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $140.00 Add to Compare
- GM-DX871
1-Channel – Class D, 1600 W Max Power – Digital Amplifier $200.00$250.00 Add to Compare
- GM-A3702
2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier $85.00 Add to Compare
- GM-A5702
2-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $130.00 Add to Compare
- GM-DX971
1-Channel – Class D, 2400 W Max Power – Digital Amplifier $470.00 Add to Compare
- GM-A4704
4-Channel – Class AB, 520 W Max Power – Bridgeable Amplifier $130.00 Add to Compare
- GM-DX104
4-Channel – Hi-Res Certified, Class FD, 400 W Max Power – Digital Compact Amplifier $270.00 Add to Compare
- GM-E190X2
2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier $100.00 Add to Compare
- GM-E360X4
4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $124.00 Add to Compare

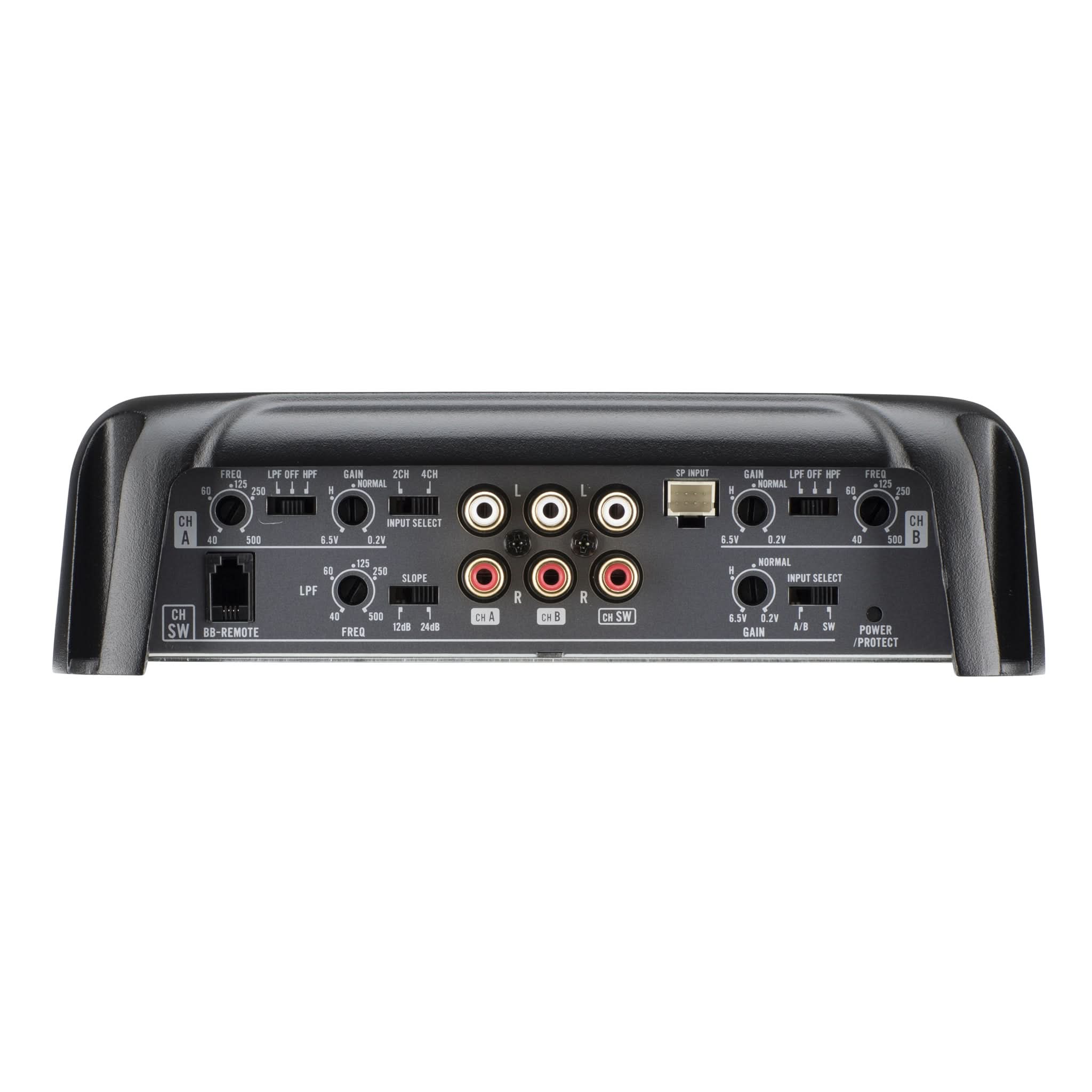

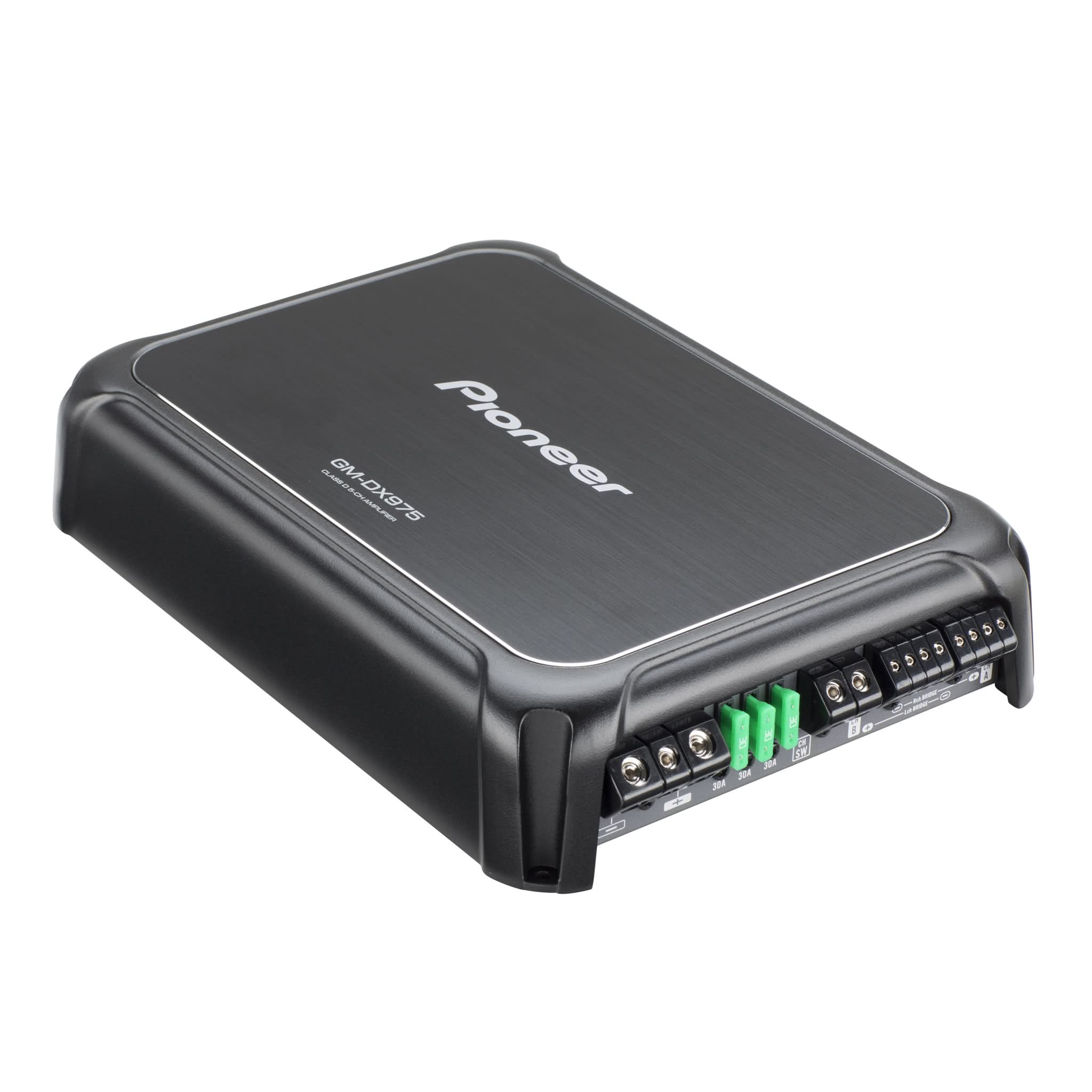

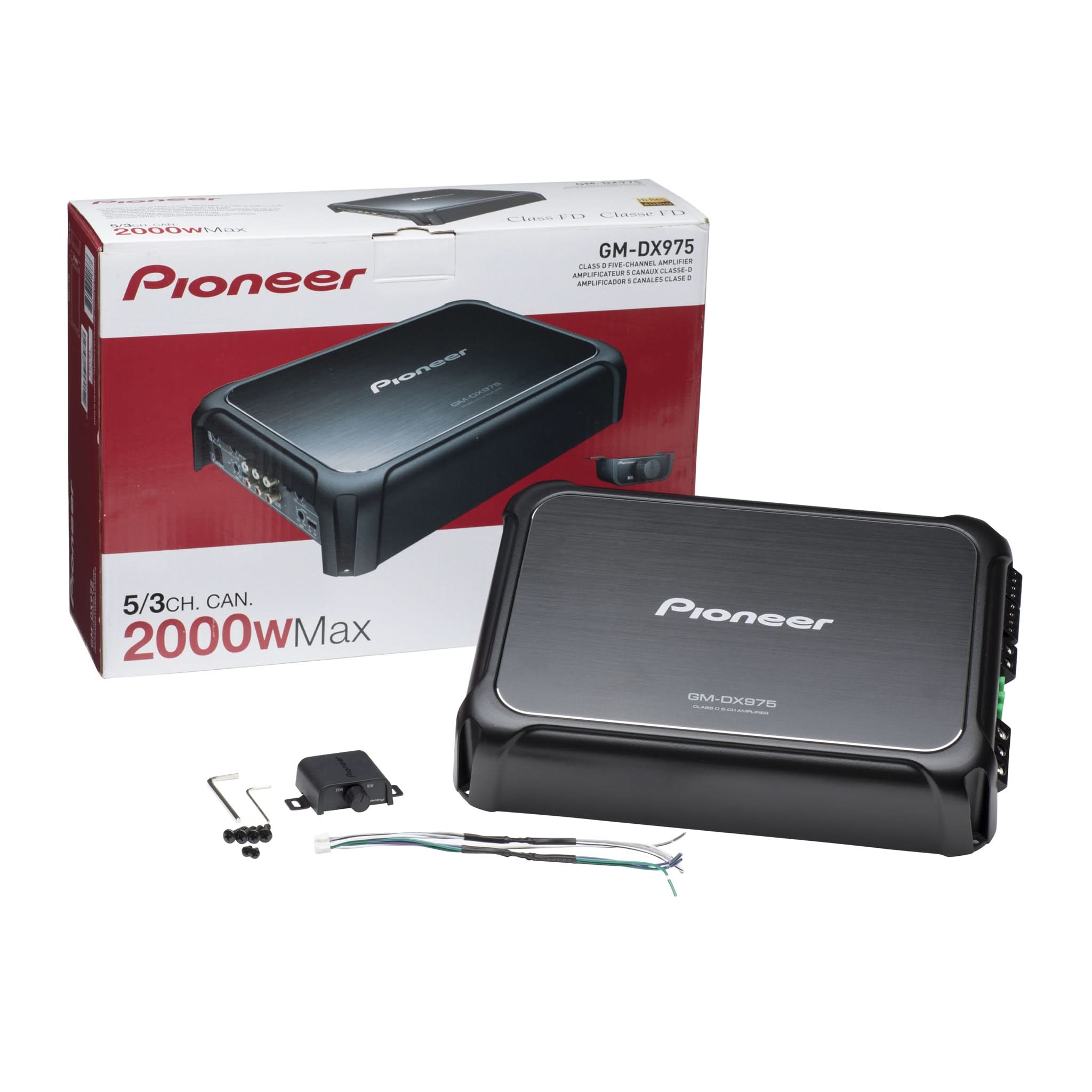

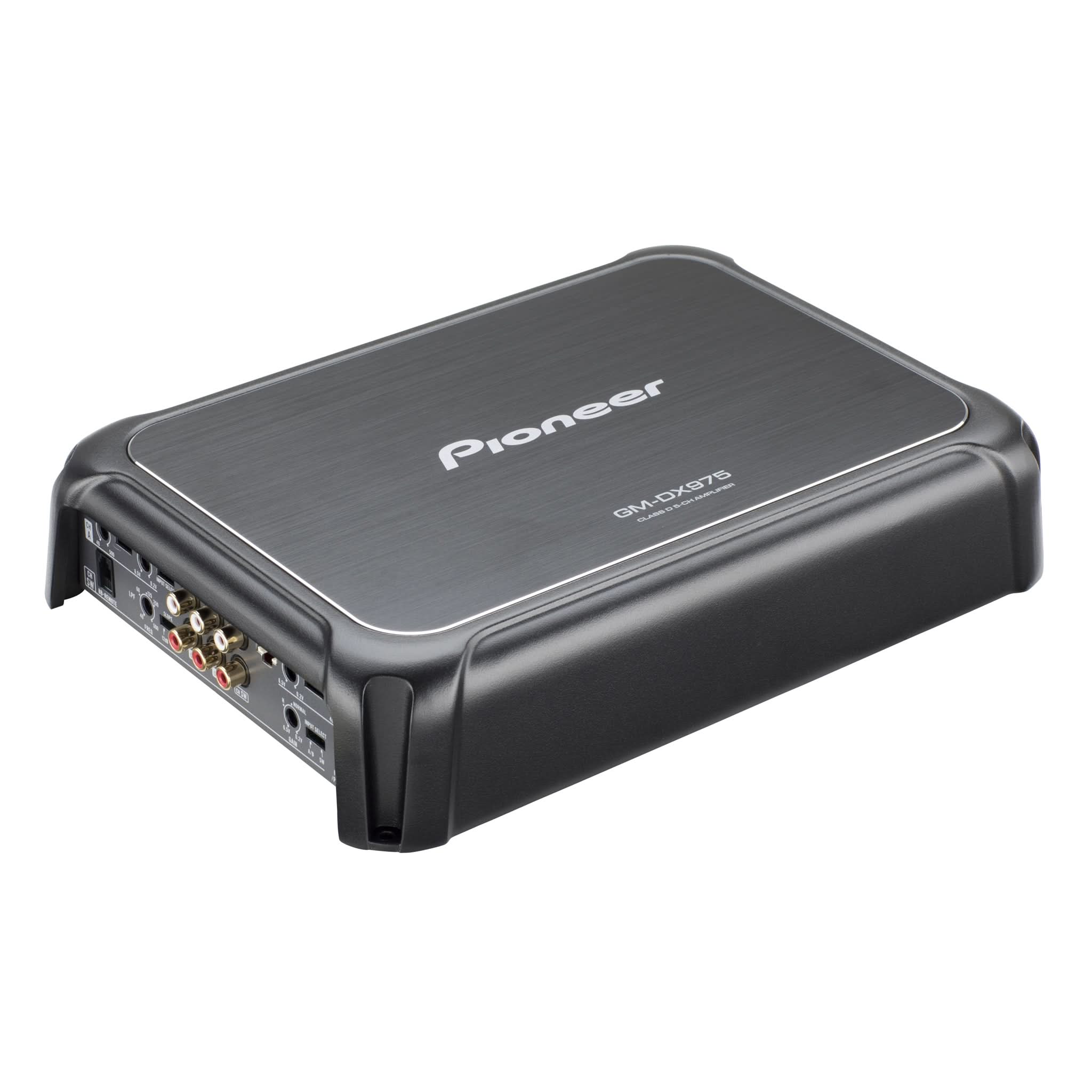

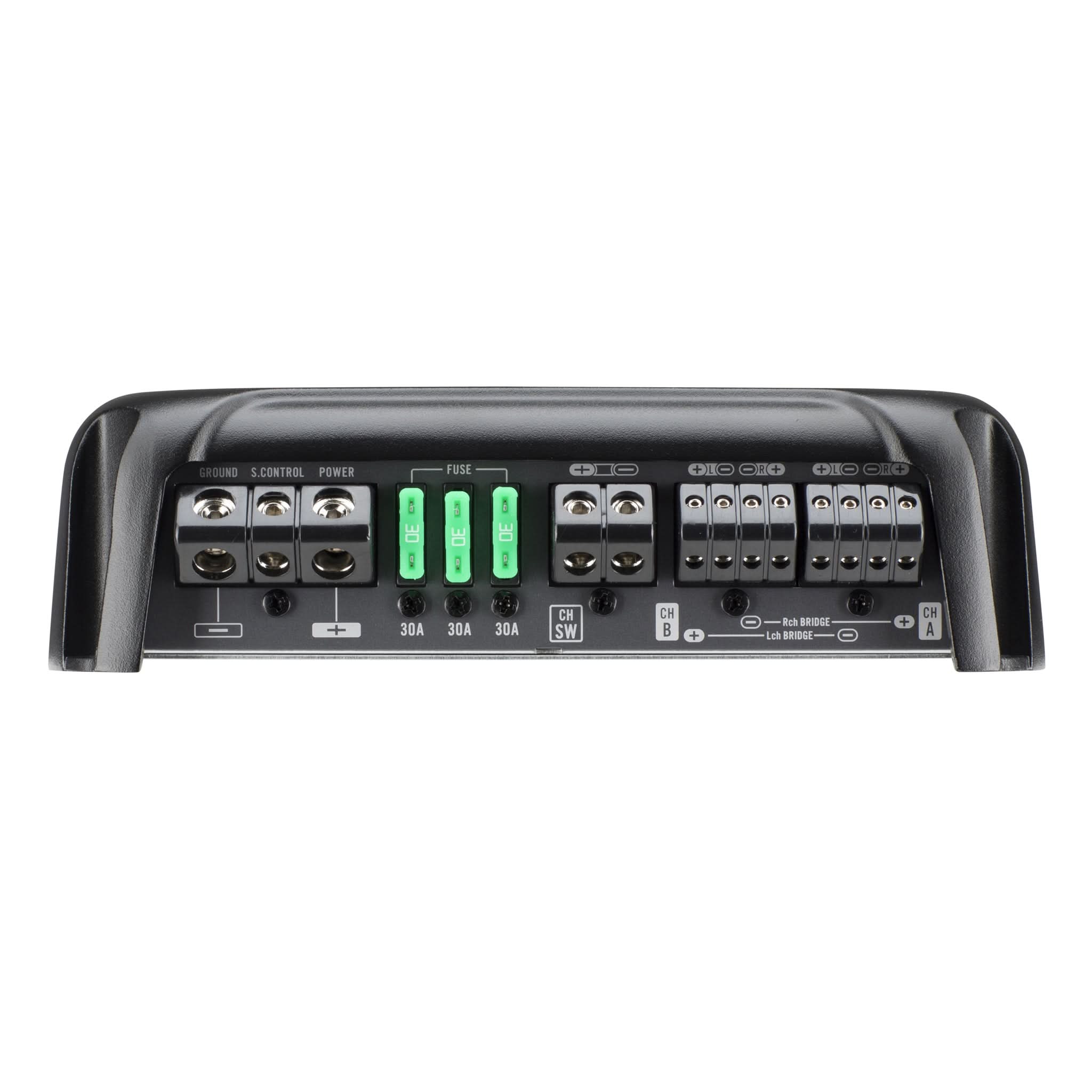

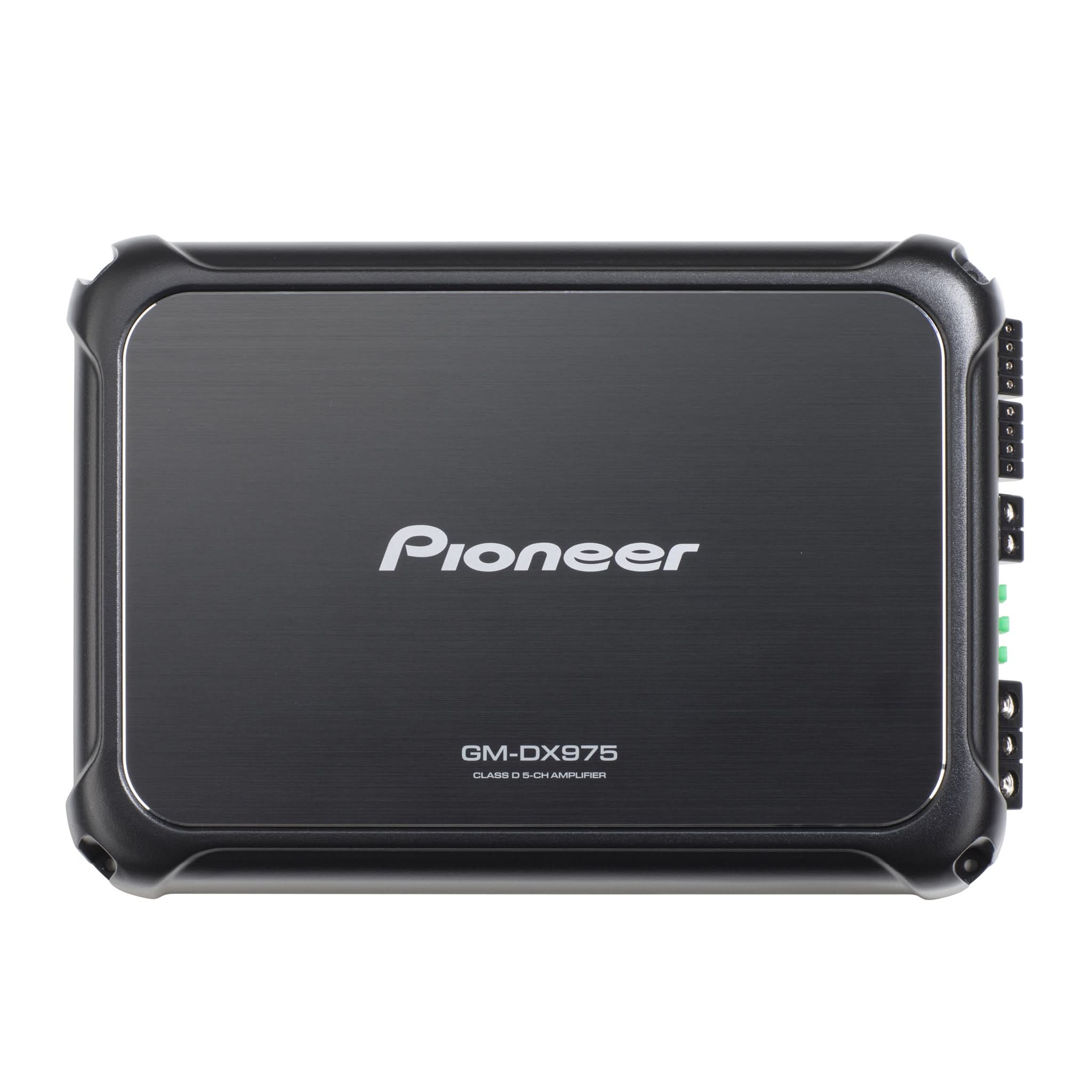

GM-DX975
Regular price $550.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Bass Boost Remote Yes | Bridgable Yes |
| Class D | Grounding System Negative |
| High Quality Audio Components Yes | Power Source 14.4V (10.8 V to 15.1 V allowable) |
| Protection Control system Yes | Terminal Type Block |
| Unit Weight 7.3 lbs |
| Allowable Load Impedance 2 ohm to 8 ohm allowable | Avg Current Consumption (amps x #ch) 5.2 A x 5-Channel – 4 Ohm |
| Bass Boost 50 Hz – Frequency | Continuous-Power-Output 75 W x 4-Channel + 350 W x 1-Channel – 4 Ohm,100 W x 4-Channel + 600 W x 1-Channel – 2 Ohm,200 W x 2-Channel + 350 W x 1-Channel – 4 Ohm Bridged |
| Crossover Network Channel HPF – A/B Ch 40Hz-500Hz,LPF – A/B Ch 40Hz-500Hz | Crossover Network Channel Slope -12db/oct (A/B CH) |
| Crossover Network Subwoofer Channel LPF – 40 Hz to 500 Hz | Crossover Network Subwoofer Slope -12dB, 24 dB/oct |
| Frequency Response Channel 10 Hz to 50 kHz (+0dB,-3dB) A/B Ch | Frequency Response – Sub Channel 10 Hz to 500 Hz |
| Fuse Rating 30A x 3 | Maximum Power Output 150 W x 4-Channel + 700 W x 1-Channel (4 Ohm) |
| RCA Inputs 5-Channel | Speaker Line input Sensor Yes |
| THD – Subwoofer =/< 1% ( 20 Hz to 240 Hz) |
