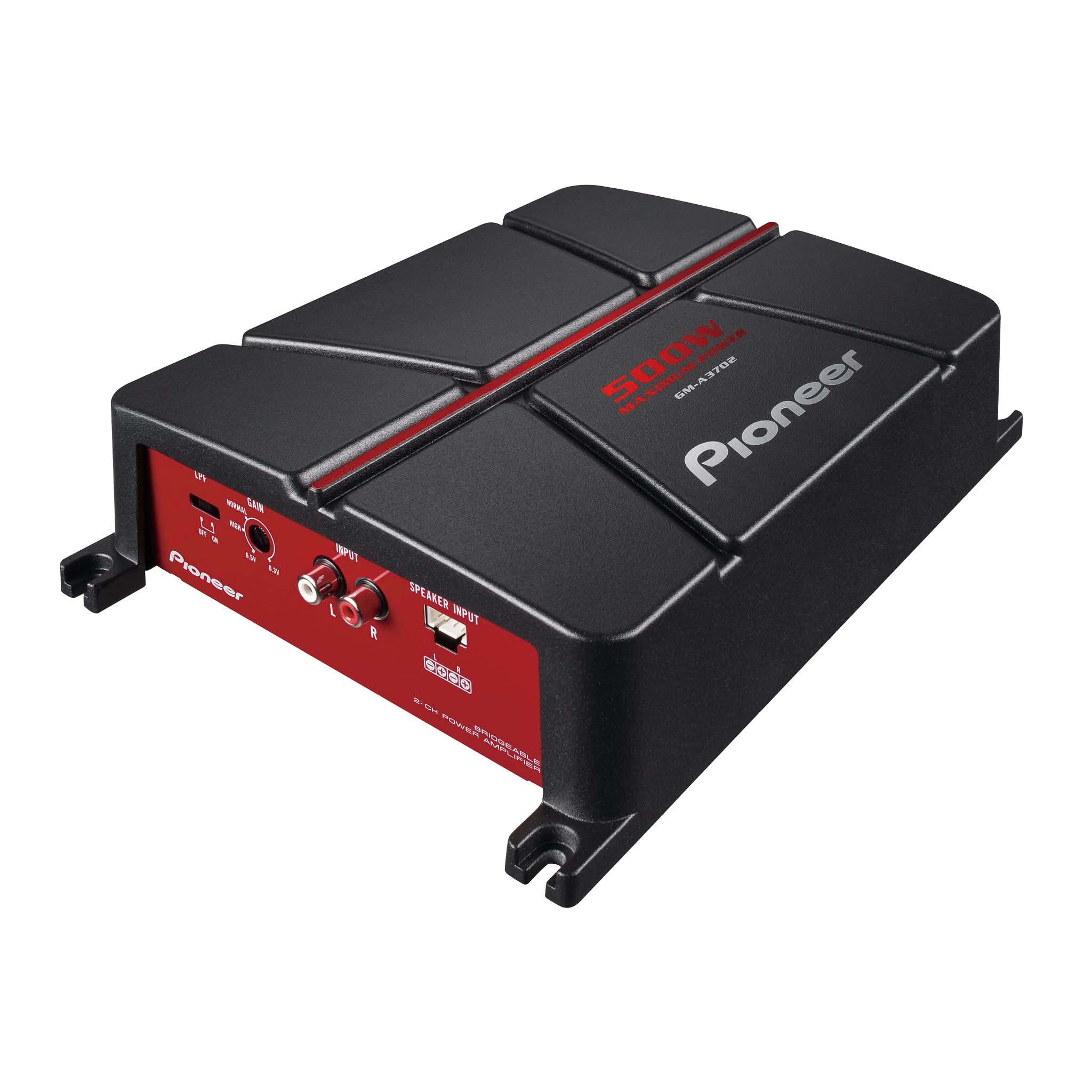

2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier
Features
Total of 500 Watts Maximum Power
60Wx2 RMS @ 4 ohms (1%THD)
170Wx2 MAX @ 4 ohms (1%THD)
Automatic signal sensing and Turn-On
Built-in active filter (switchable)
Adjustable bass boost
- GM-DX874
4-Channel – Hi-Res Certified, Class FD, 1200 W Max Power – Digital Amplifier $220.00$270.00 Add to Compare
- GM-A6704
4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $140.00 Add to Compare
- GM-DX871
1-Channel – Class D, 1600 W Max Power – Digital Amplifier $200.00$250.00 Add to Compare
- GM-A5702
2-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $130.00 Add to Compare
- GM-DX971
1-Channel – Class D, 2400 W Max Power – Digital Amplifier $470.00 Add to Compare
- GM-A4704
4-Channel – Class AB, 520 W Max Power – Bridgeable Amplifier $130.00 Add to Compare
- GM-DX975
5-Channel – Hi-Res Certified, Class FD, 2000 W Max Power – Digital Amplifier $550.00 Add to Compare
- GM-DX104
4-Channel – Hi-Res Certified, Class FD, 400 W Max Power – Digital Compact Amplifier $270.00 Add to Compare
- GM-E190X2
2-Channel – Class AB, 500 W Max Power – Bridgeable Amplifier $100.00 Add to Compare
- GM-E360X4
4-Channel – Class AB, 1000 W Max Power – Bridgeable Amplifier $124.00 Add to Compare
GM-A3702
Regular price $85.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Bridgable Yes | Class A/B |
| Grounding System Negative | Power Source 14.4V (10.8 V to 15.1 V allowable) |
| Protection Control system Yes | Terminal Type Screw |
| Unit Weight 3.1 lbs |
| Allowable Load Impedance 2 ohm to 8 ohm allowable | Avg Current Consumption (Amps X #Ch) 4 A x 2-Channel – 4 Ohm, 6.5 A x 1-Channel – 4 Ohm |
| Continuous-Power-Output 60 W x 2-Channel – 4 Ohm, 95 W x 2-Channel – 2 Ohm, 190 W x 1-Channel – 4 Ohm Bridged | Crossover Network Channel LPF – A CH 80Hz |
| Crossover Network Channel Slope -12db/oct (A/B CH) | Frequency Response Channel 10Hz to 70kHz (+0dB,-3dB) A/B Ch |
| Fuse Rating 25 A | Maximum Power Output 170 W x 2-Channel (4 Ohm), 250 W x 2-Channel (2 Ohm), 500 W (4 ohm Bridged) |
| Rca Inputs 2-Channel | Rms Power Output 60Wx2 RMS @ 4 ohms (1%THD) |
| Speaker Line Input Sensor Yes |
