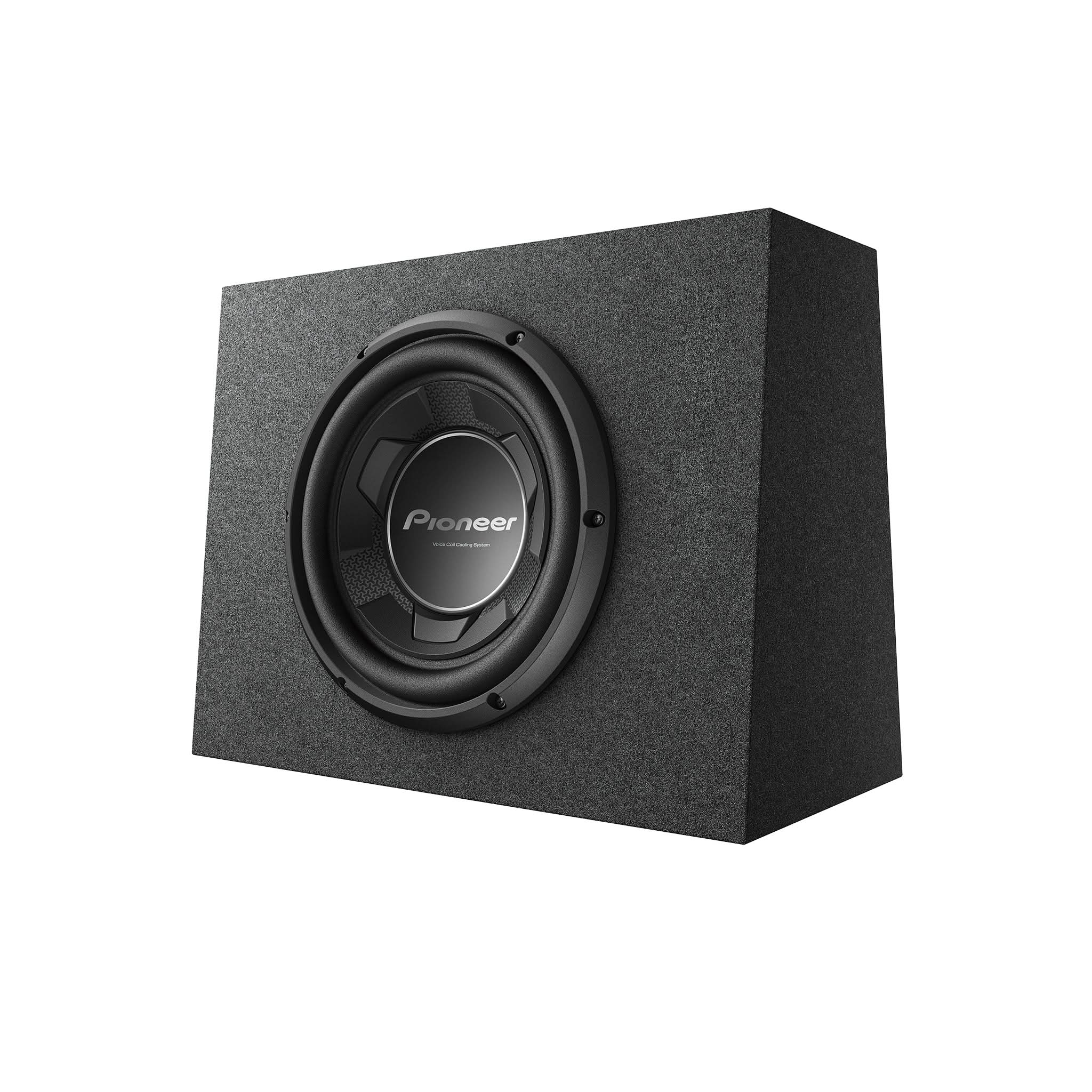

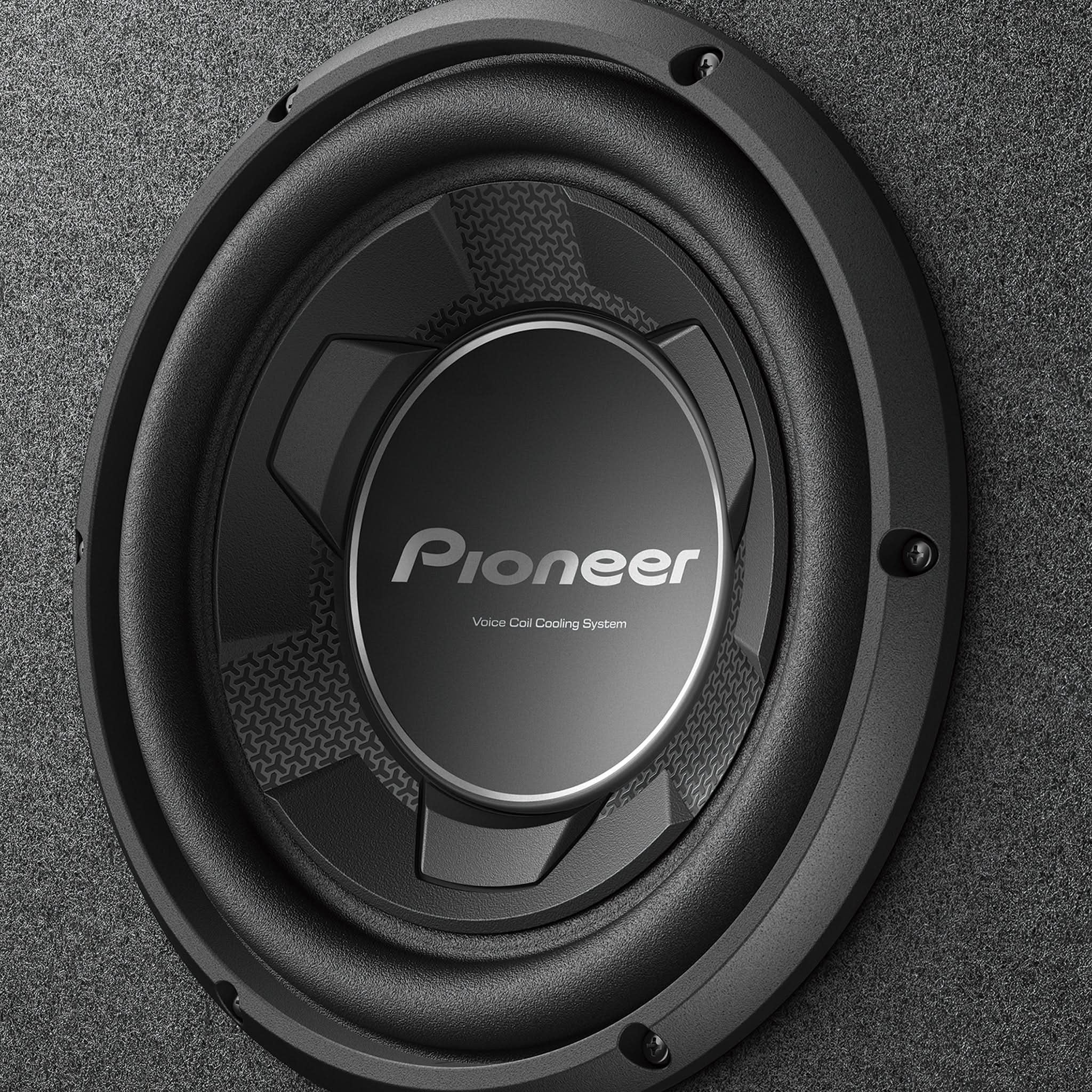

10″ – 1100 W Max Power, Single 4-ohm Voice Coil, IMPP™ cone – Pre-loaded Subwoofer
Features
1100 Watts Max. Power / 250 Watts Nominal Power
10″ IMPP™ Composite Cone

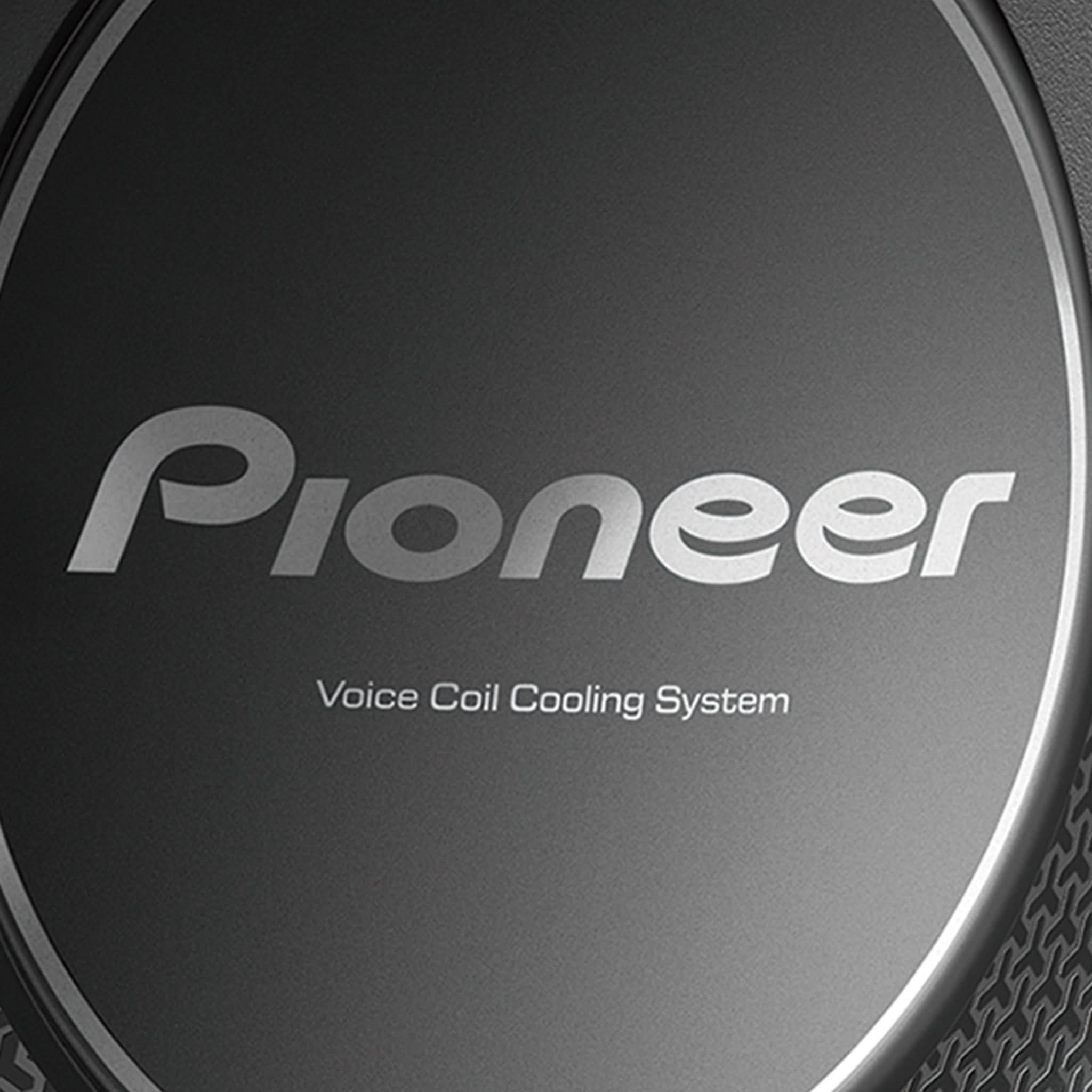

Pioneer VCCS (Voice-Coil Cooling System)
Frequency range: 20 Hz to 3.7 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 73 dB (1W/1M)
Box dimensions (WxHxD) : 17.625″ (448mm) x 13.5″ (343mm) x 9.25″ (235mm)
Trapezoidal shape to match rear seat angle
- TS-W3020PRO
12″ – 3500 W Max Power, Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare
- TS-WX010A
Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare
- TS-WX140DA
Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare
- TS-WX1010A
10″ – 1100 W pre-loaded subwoofer, sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare
- TS-A120D4
12″ – 1500 W Max Power, Dual 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Compo… $70.00 Add to Compare
- TS-A2000LD2
8″ – 700 W Max power, Glass-fiber & Mica reinforced IMPP™ Cone, Dual 2 Ohm Voice C… $160.00 Add to Compare
- TS-A25S4
10″ – 1200 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone – Component Subwoofer $80.00 Add to Compare
- TS-WX1210A
12″ – 1300 W pre-loaded subwoofer, sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare
- TS-A120S4E
12″ – 1400 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Com… $50.00 Add to Compare
- TS-A301D4
12″ – 1600 W Max Power, Dual 4 Ohm Voice Coil, 2-piece Honeycomb IMPP™ Cone Struct… $140.00 Add to Compare
TS-WX106B
Regular price $110.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Continuous Power Handling (Rms) – Watts 250 | Frequency Response 20 Hz to 3.7 kHz |
| Maximum Peak Power Handling – Watts 1100 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 73dB | System-Type Pre-Loaded |
| Woofer Dimensions 10″ |
| Basket Material Stamped Metal | Cone Material IMPP – Composite |
| Damper Poly cotton | Installation Ring Polypropylene |
| Magnet Material Ferrite | Magnet Weight 29.1 oz |
| Surround Material Urethane | Surround Type Rolled |
| Voice Coil Bobbin Aluminum | Voice Coil Special Feature VCCS |
| Voice Coil wire Copper |
