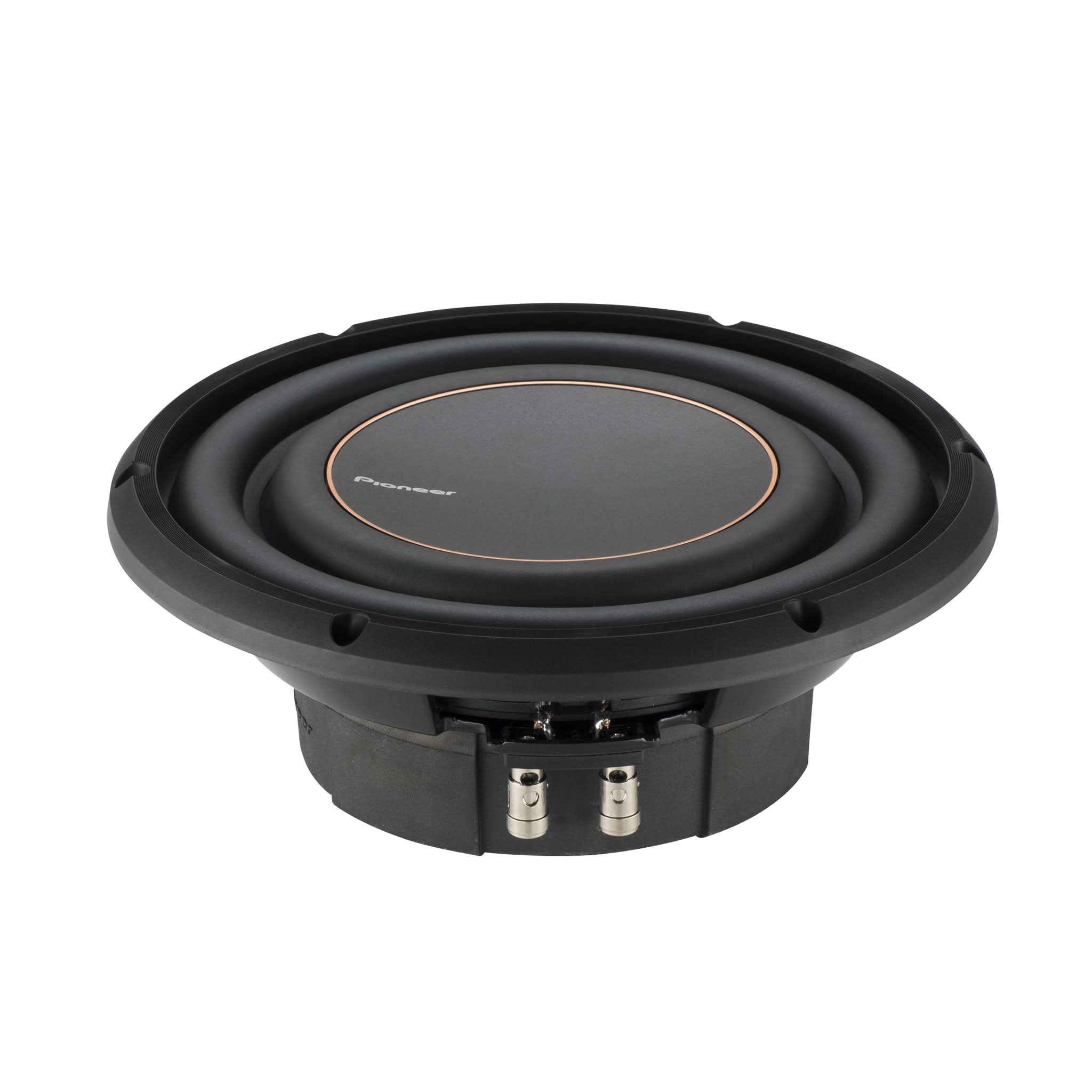

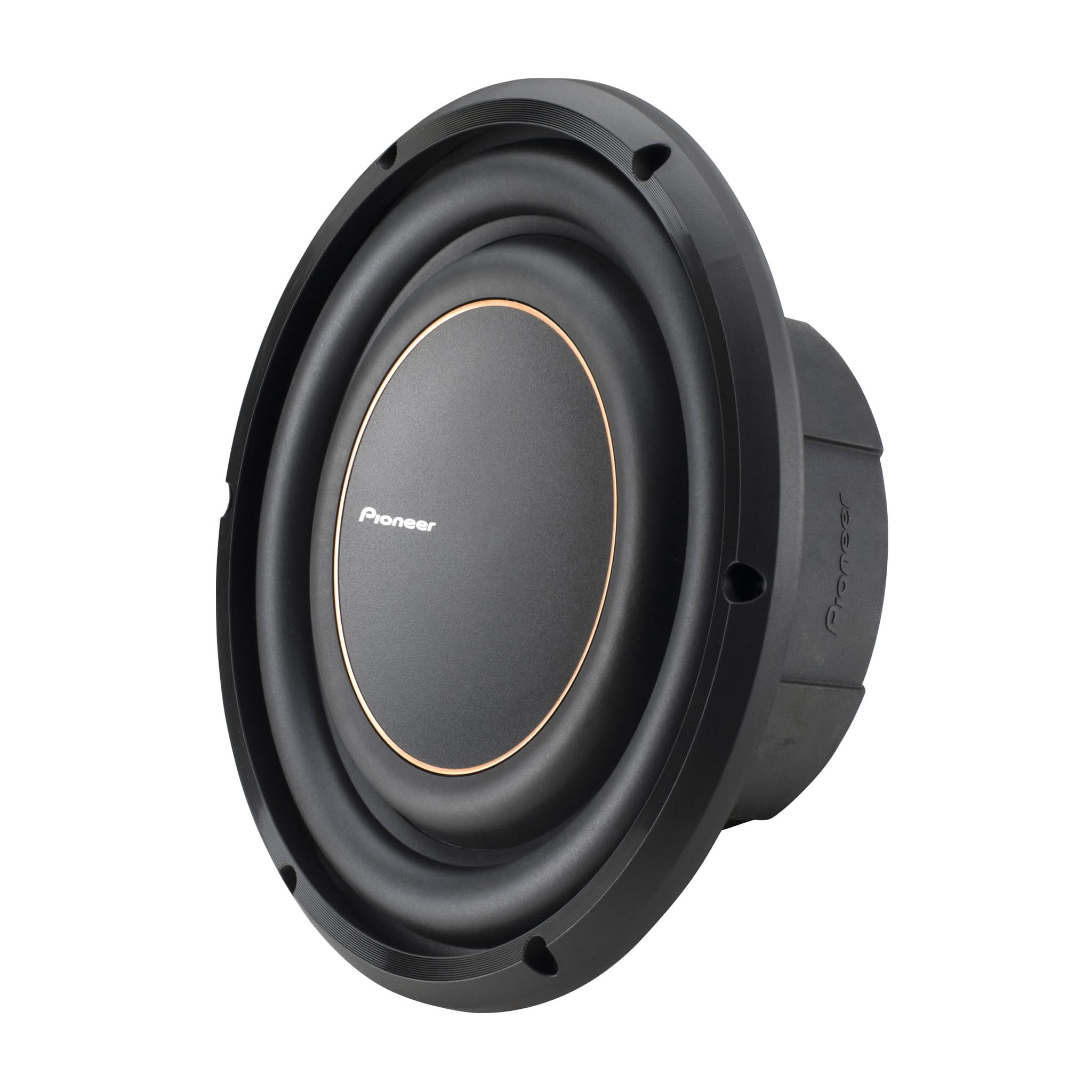

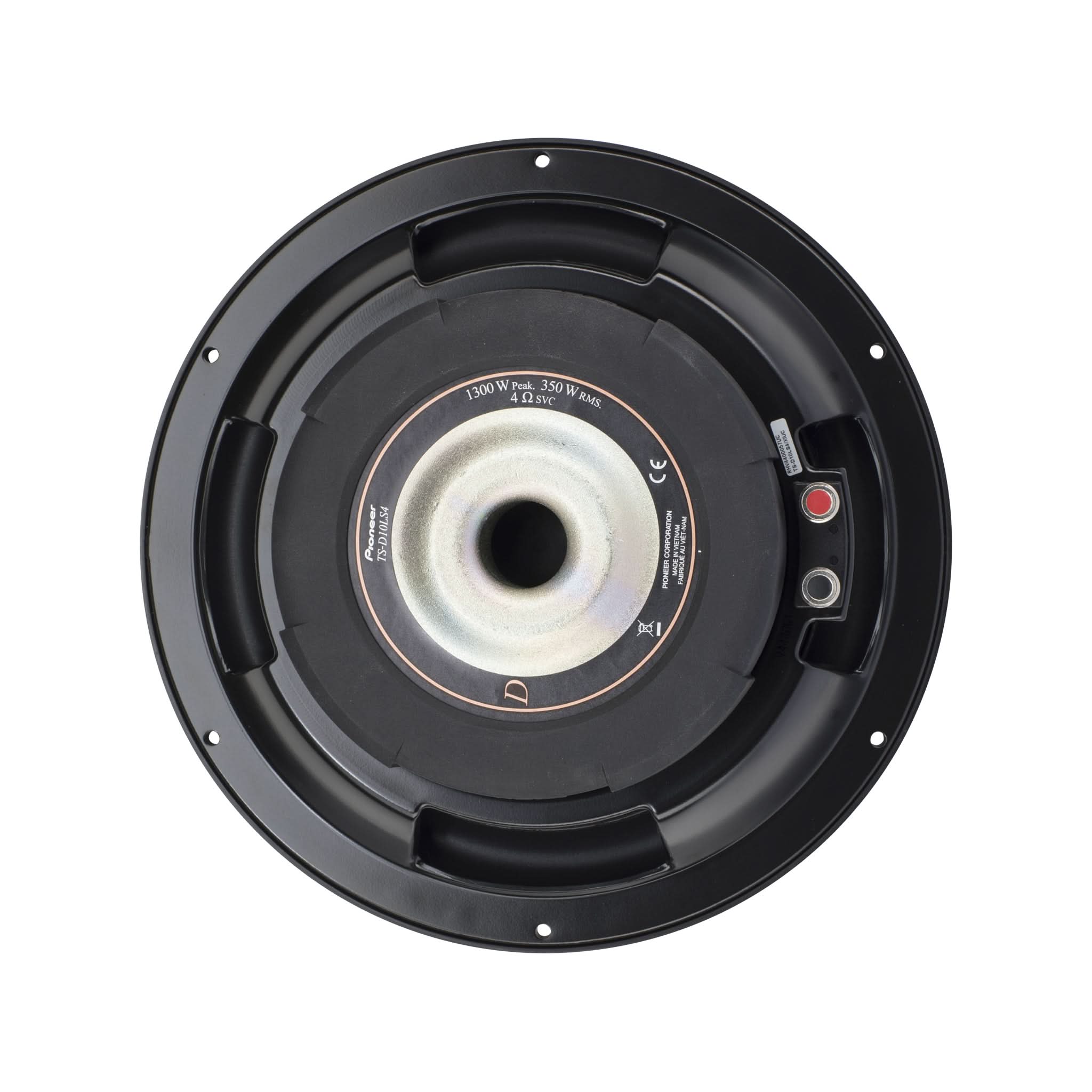

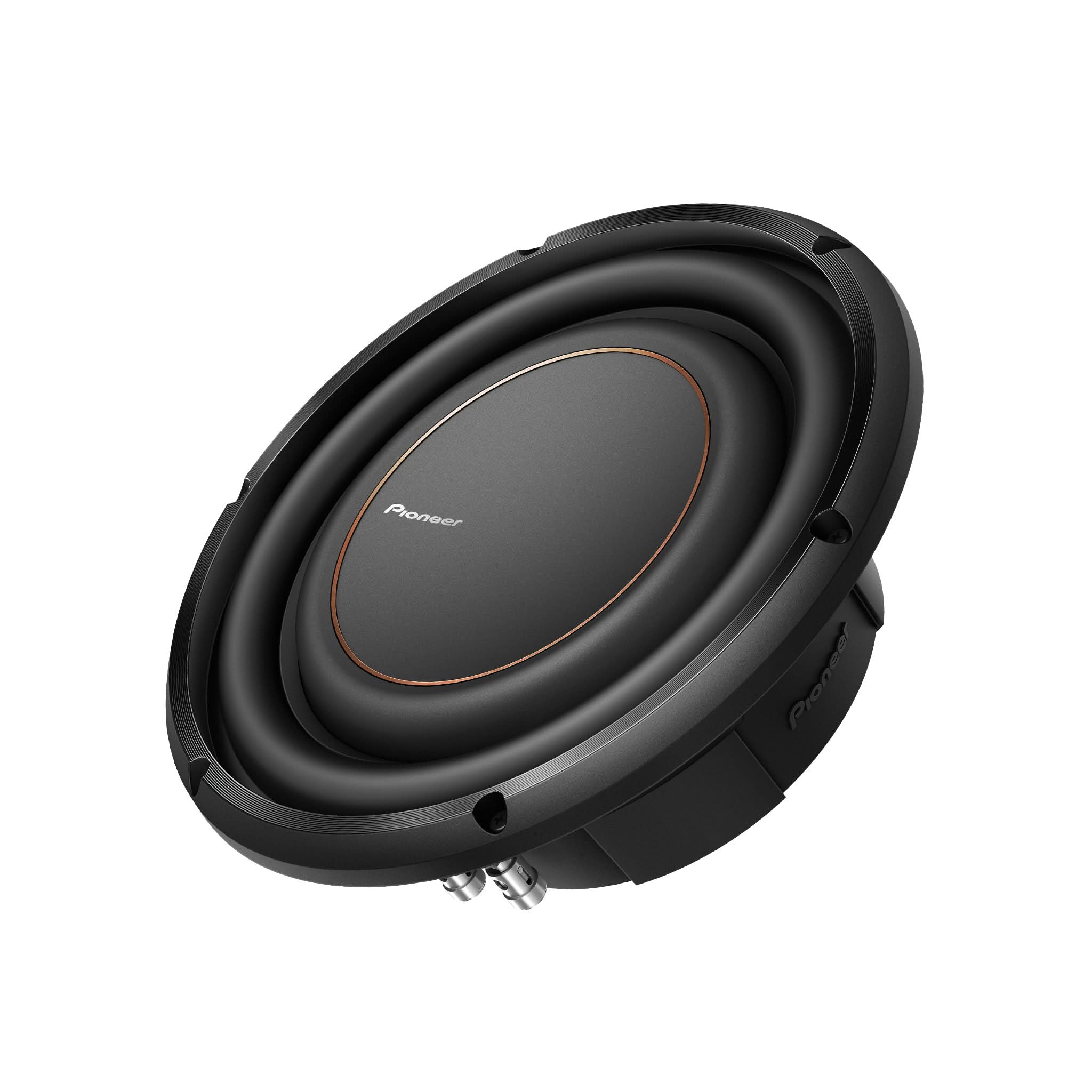

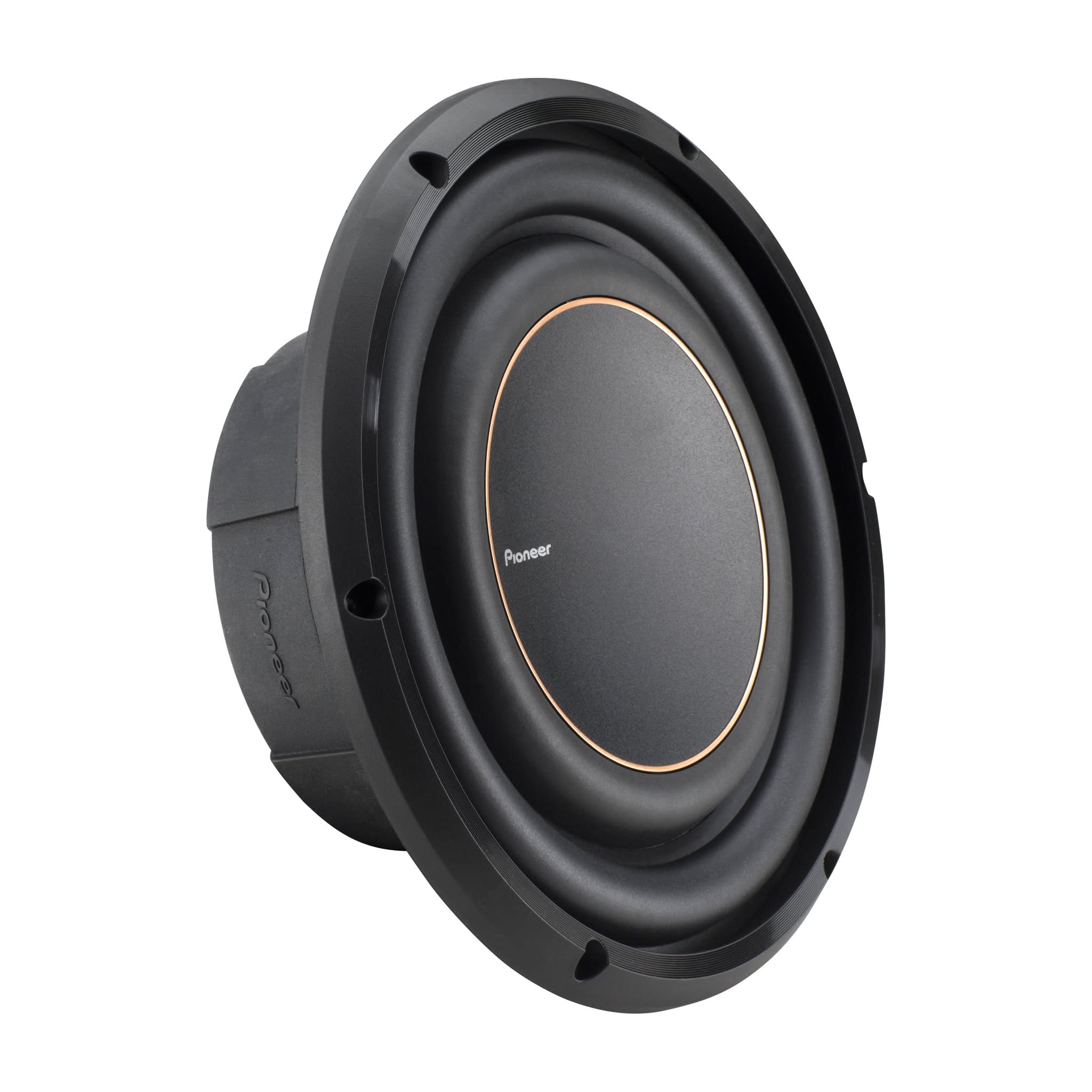

10″ – 1300 W Max power, Aramid Fiber IMPP™ cone, Single 4 Ohm Voice Coil – Shallow Mount Subwoofer
Features
1300 Watts Max. Power / 350 Watts Nominal Power
10″ Aramid Fiber Interlaced IMPP™ cone
Butyl Rubber Surround & Dual Meta-Aramid fiber spider
Frequency range: 20 Hz to 3.4 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 76 dB (1W/1M)
Mounting depth: 3-1/4″
Recommended Box volume : 0.6cu.ft. (sealed)
- TS-W3020PRO
12″ – 3500 W Max Power, Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare
- TS-WX010A
Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare
- TS-WX140DA
Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare
- TS-WX1010A
10″ – 1100 W pre-loaded subwoofer, sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare
- TS-A120D4
12″ – 1500 W Max Power, Dual 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Compo… $70.00 Add to Compare
- TS-WX106B
10″ – 1100 W Max Power, Single 4-ohm Voice Coil, IMPP™ cone – Pre-loaded Subwoofer $110.00 Add to Compare
- TS-A2000LD2
8″ – 700 W Max power, Glass-fiber & Mica reinforced IMPP™ Cone, Dual 2 Ohm Voice C… $160.00 Add to Compare
- TS-A25S4
10″ – 1200 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone – Component Subwoofer $80.00 Add to Compare
- TS-WX1210A
12″ – 1300 W pre-loaded subwoofer, sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare
- TS-A120S4E
12″ – 1400 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Com… $50.00 Add to Compare
TS-D10LS4
Sale price $153.00 Regular price $180.00
Strike-Through Pricing and Savings
×
USA.Pioneer may display strikethrough pricing alongside a reduced advertised price in instances where an item is subject to a “Sale,” “Instant Savings,” “Special Purchase,” or “Price Break.” The strikethrough price shown represents the price advertised for this model on or in connection with Pioneer’s website as of 5/04/2026.
Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Continuous Power Handling (Rms) – Watts 350 | Frequency Response 20 Hz to 3.4 kHz |
| Maximum Peak Power Handling – Watts 1300 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 76dB | System-Type Component |
| CarSoundFit Yes | Cut Out dimensions 9″, 23 cm |
| Equivalent Compliance (VAS) 19.8 Liters, 0.70 Cu. Ft. | Free Air ResoNAnce (Fs) 37 |
| Linear Excursion (Xmax) 5/16″, 8 mm | Mounting Depth 3-1/4″ |
| Port Diameter 3″, 8 cm | Port Length 7-1/2″, 19 cm |
| Recommended Ported Box Internal volume 17 Liters, 0.60 Cu. FT. | Recommended Sealed Enclosure Volume 17 Liters, 0.6 Cu Ft |

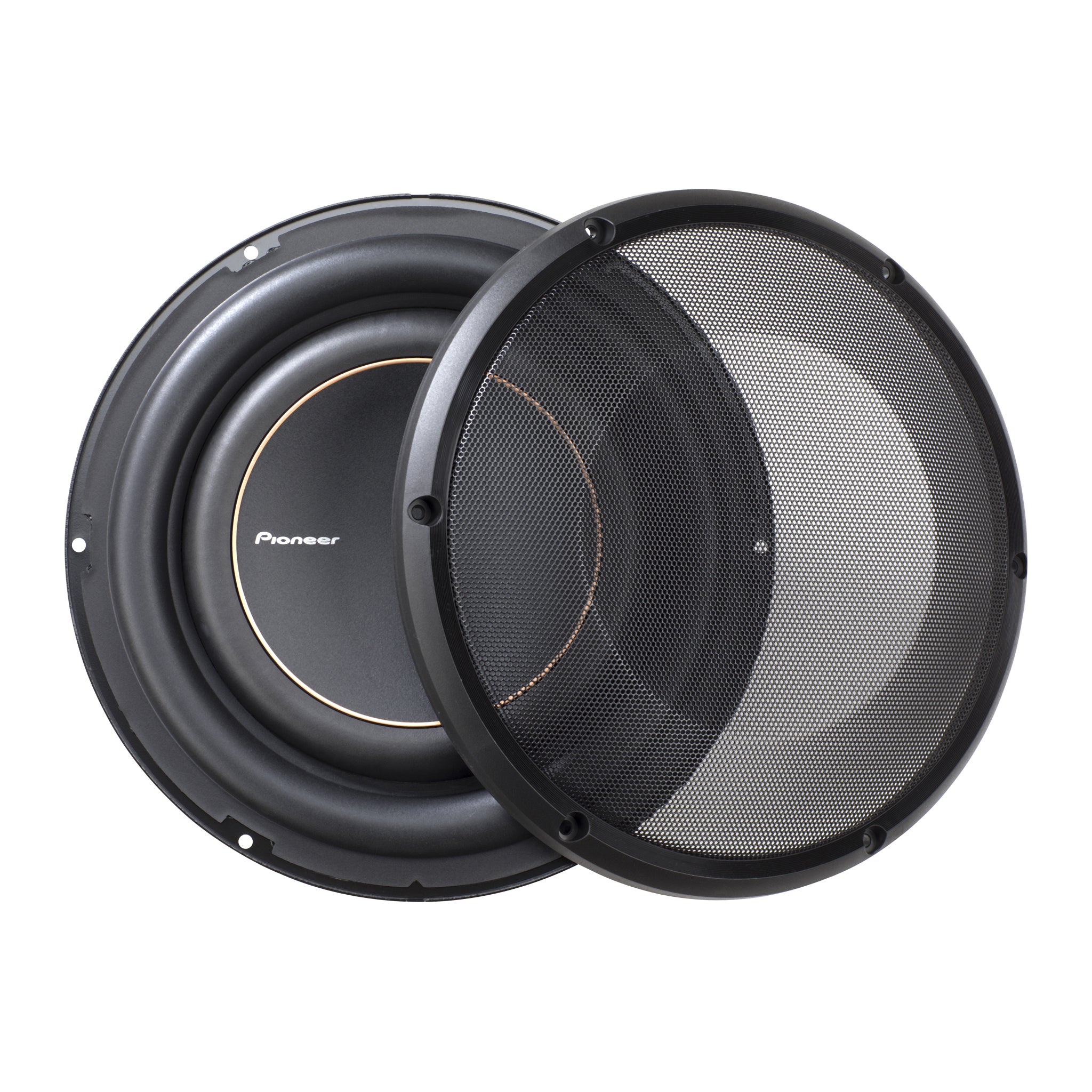

| Subwoofer Grille UD-10GL Sold Separately | Total Speaker “Q” (Qts) 0.8 |
| Woofer Dimensions 10″ |
| Basket Material Stamped Metal | Cone Material IMPP – Aramid Fiber |
| Installation Ring Polypropylene | Magnet Material Ferrite |
| Magnet Weight 43.4 oz | Surround Material Rubber |
| Surround Type Rolled | Voice Coil Bobbin Glass imide |
| Voice Coil Material Glass Imide | Voice Coil Type Single Voice Coil 4-ohm |
| Voice Coil wire Copper | Wire Terminals Push Type |
