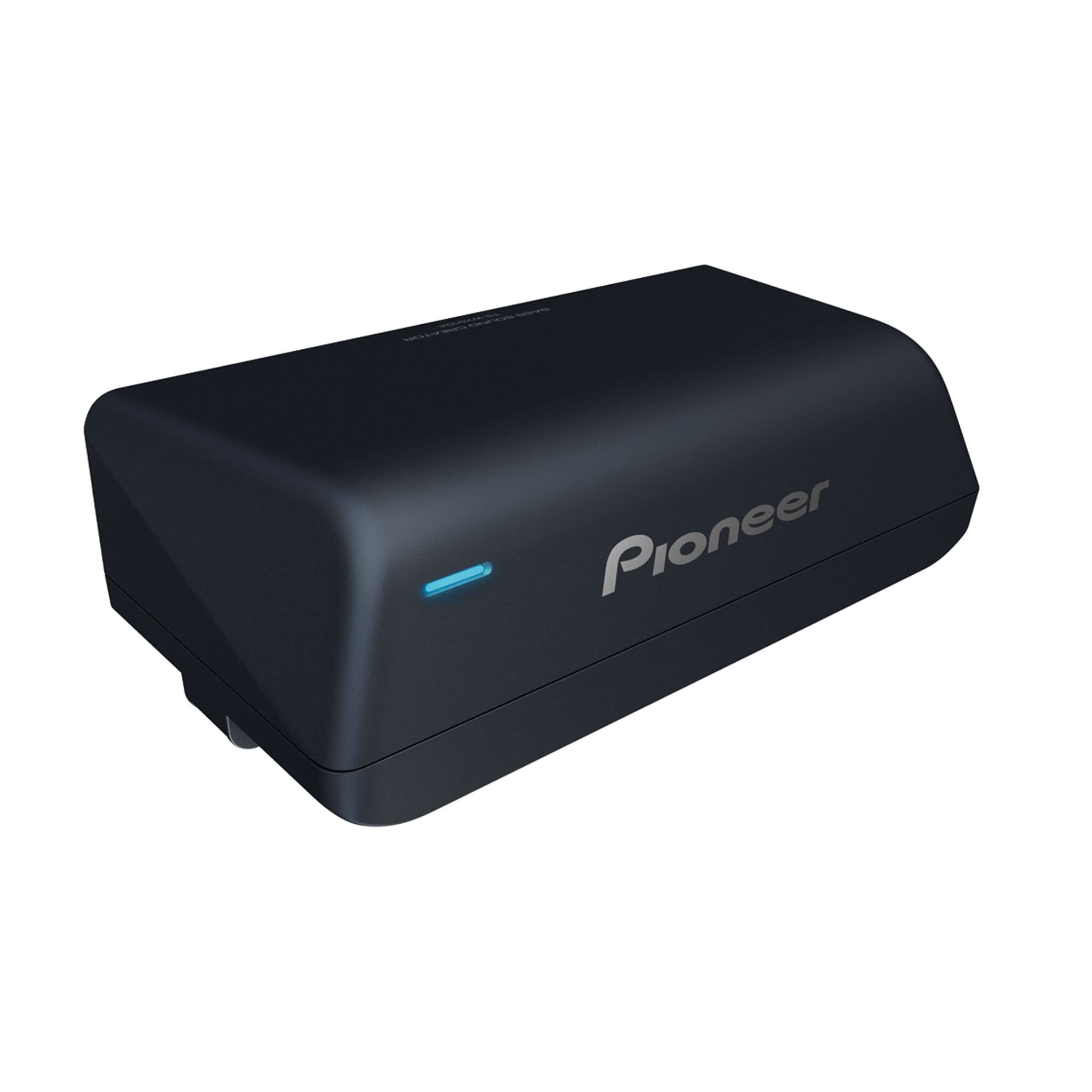

Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger side footwell or limited space applications and with ultra-low current consumption.
Features
Built-in 160 W (Max.) Class D amplifier
Low current consumption: 4.2 amps (Max.)

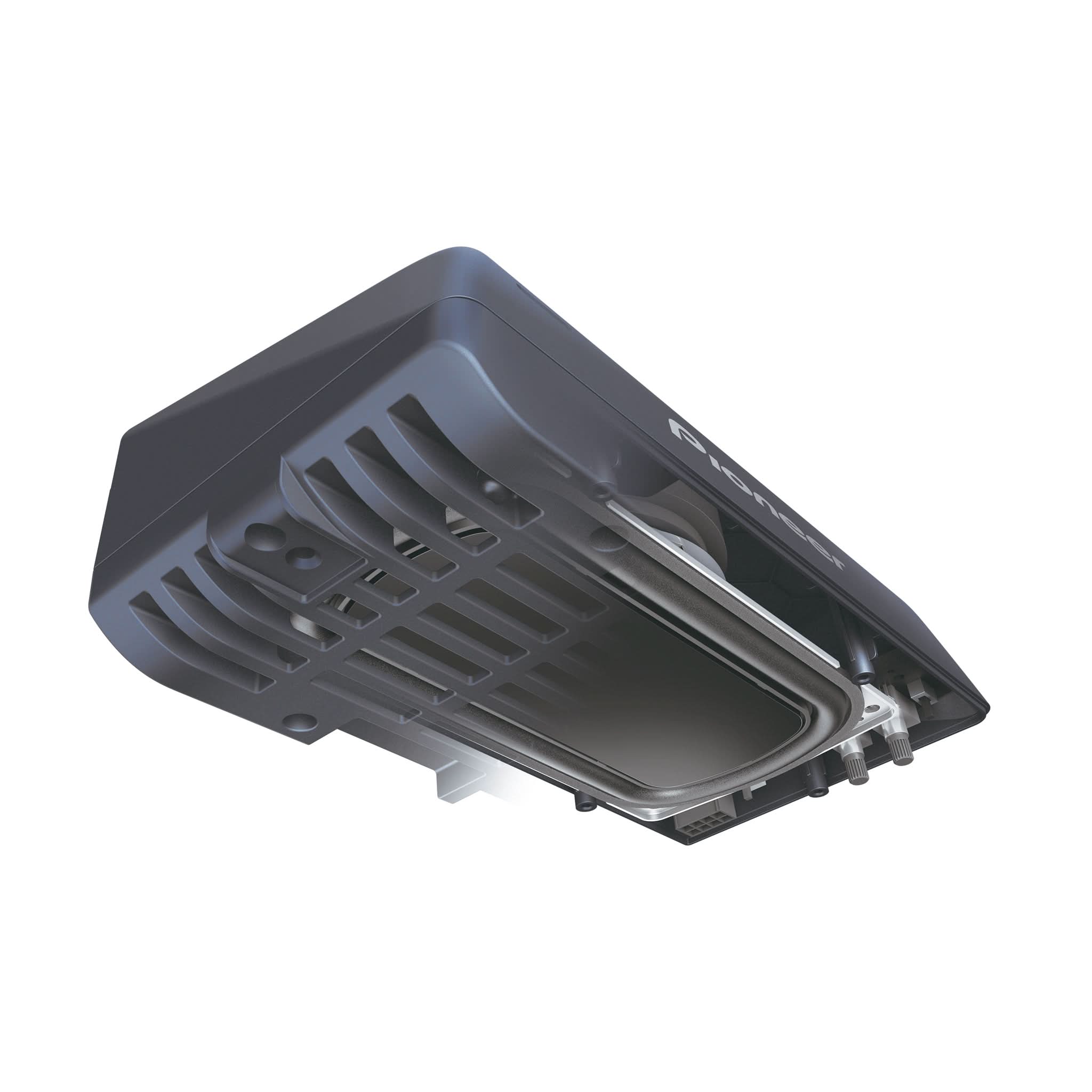

6.625″ x 3.125″ Aluminum Rectangular cone
Speaker Efficiency: 98 dB (pass. side footwell)

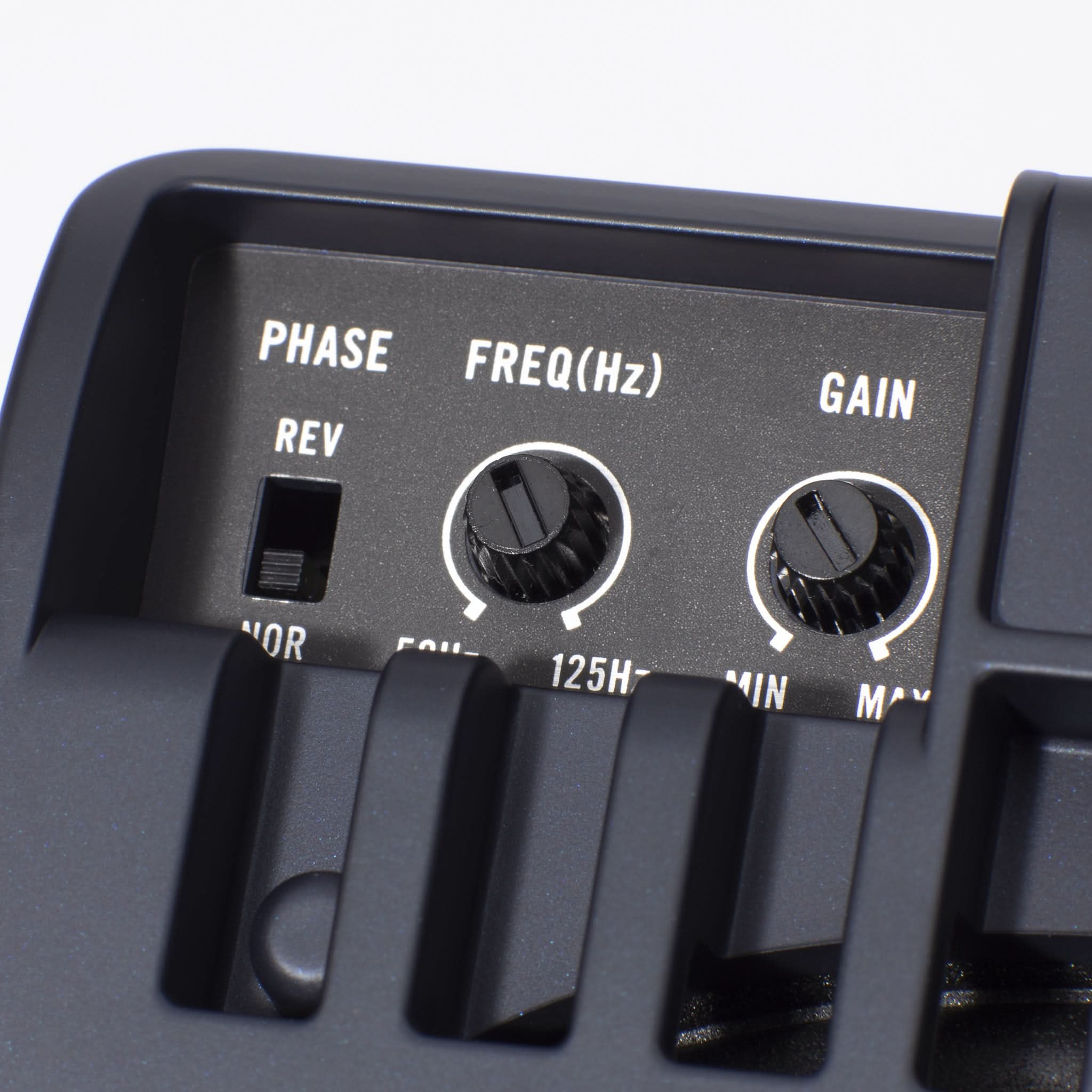

Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
Built-in phase control: 0-180deg.
Adjustable Gain Control
Box dimensions (WxHxD) : 9.0″ (230mm) x 2.75″ (70mm) x 4.625″ (116mm)
- TS-W3020PRO
12″ – 3500 W Max Power, Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare
- TS-WX140DA
Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare
- TS-WX1010A
10″ – 1100 W pre-loaded subwoofer, sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare
- TS-A120D4
12″ – 1500 W Max Power, Dual 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Compo… $70.00 Add to Compare
- TS-WX106B
10″ – 1100 W Max Power, Single 4-ohm Voice Coil, IMPP™ cone – Pre-loaded Subwoofer $110.00 Add to Compare
- TS-A2000LD2
8″ – 700 W Max power, Glass-fiber & Mica reinforced IMPP™ Cone, Dual 2 Ohm Voice C… $160.00 Add to Compare
- TS-A25S4
10″ – 1200 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone – Component Subwoofer $80.00 Add to Compare
- TS-WX1210A
12″ – 1300 W pre-loaded subwoofer, sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare
- TS-A120S4E
12″ – 1400 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Com… $50.00 Add to Compare
- TS-A301D4
12″ – 1600 W Max Power, Dual 4 Ohm Voice Coil, 2-piece Honeycomb IMPP™ Cone Struct… $140.00 Add to Compare
TS-WX010A
Regular price $200.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Amp – Max Current Consumption 4.2 A | Amp – Power Source 14.4 V DC (10. 8 V to 15.1 V) |
| Continuous Power Handling (Rms) – Watts 50 | Frequency Response 20 Hz to 200 Hz |
| Input Level @Gain Max 2 V to 6 V | Maximum Peak Power Handling – Watts 160 |
| Sensitivity (1W/1M) 98dB (In car, installed at the foot space) | Speaker Line Input Sensor 1.4V+1.4V/5KOhm |
| System-Type Powered |
| Amp – Grounding Negative | Built In Amp Yes |
| CarSoundFit Yes | Woofer Dimensions 6.63″ x 3.13″ |
| Basket Material Metal | Cone Material Cellulose fiber |
| Damper Aramid Fiber | Drive Cone Material Cellulose Fiber |
| Magnet Material Ferrite | Magnet Weight 9.5 oz |
| Surround Material Urethane | Surround Type Rolled |
| Voice Coil Bobbin Glass imide | Voice Coil Material Glass Imide |
| Voice Coil Type Single Voice Coil | Voice Coil wire Copper |
