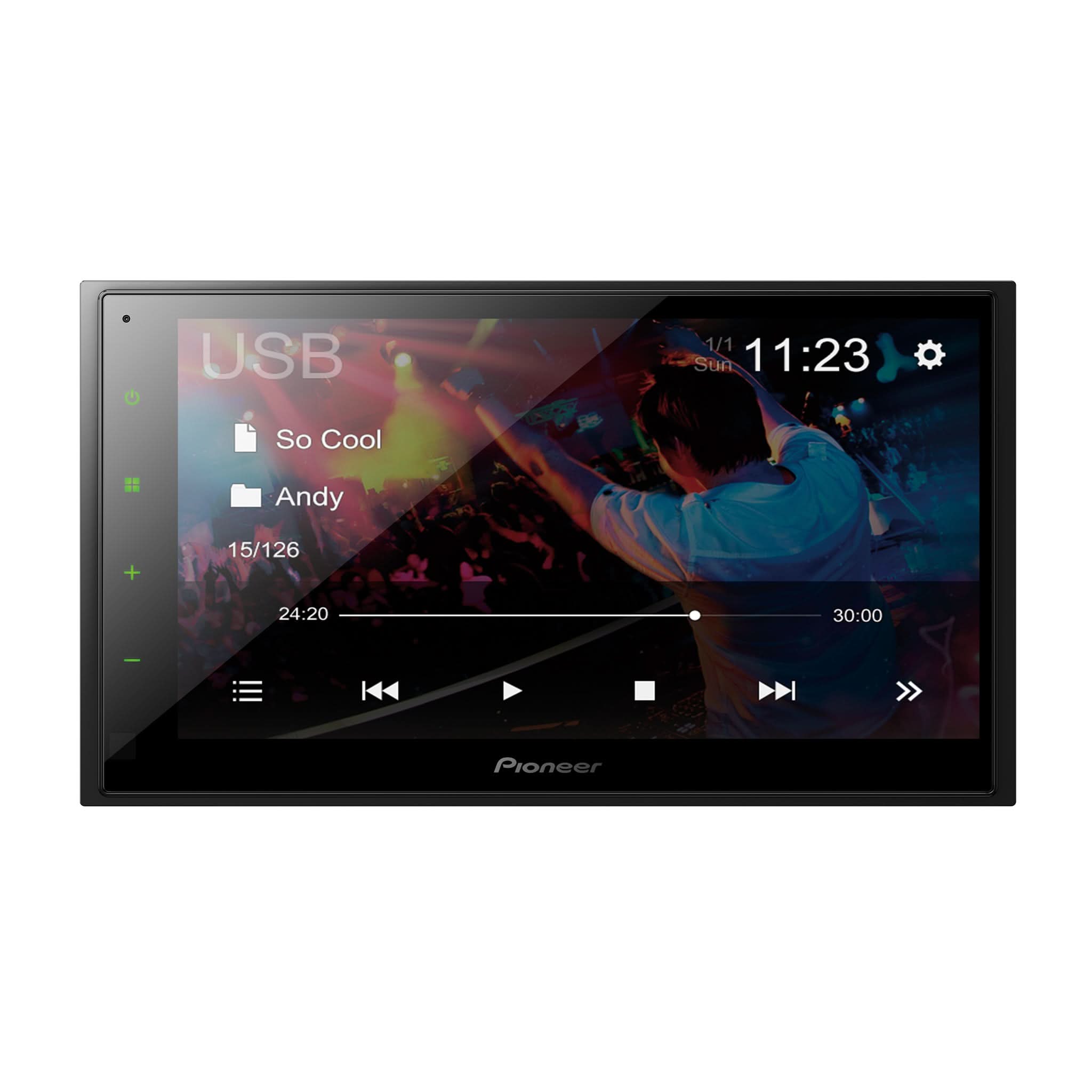

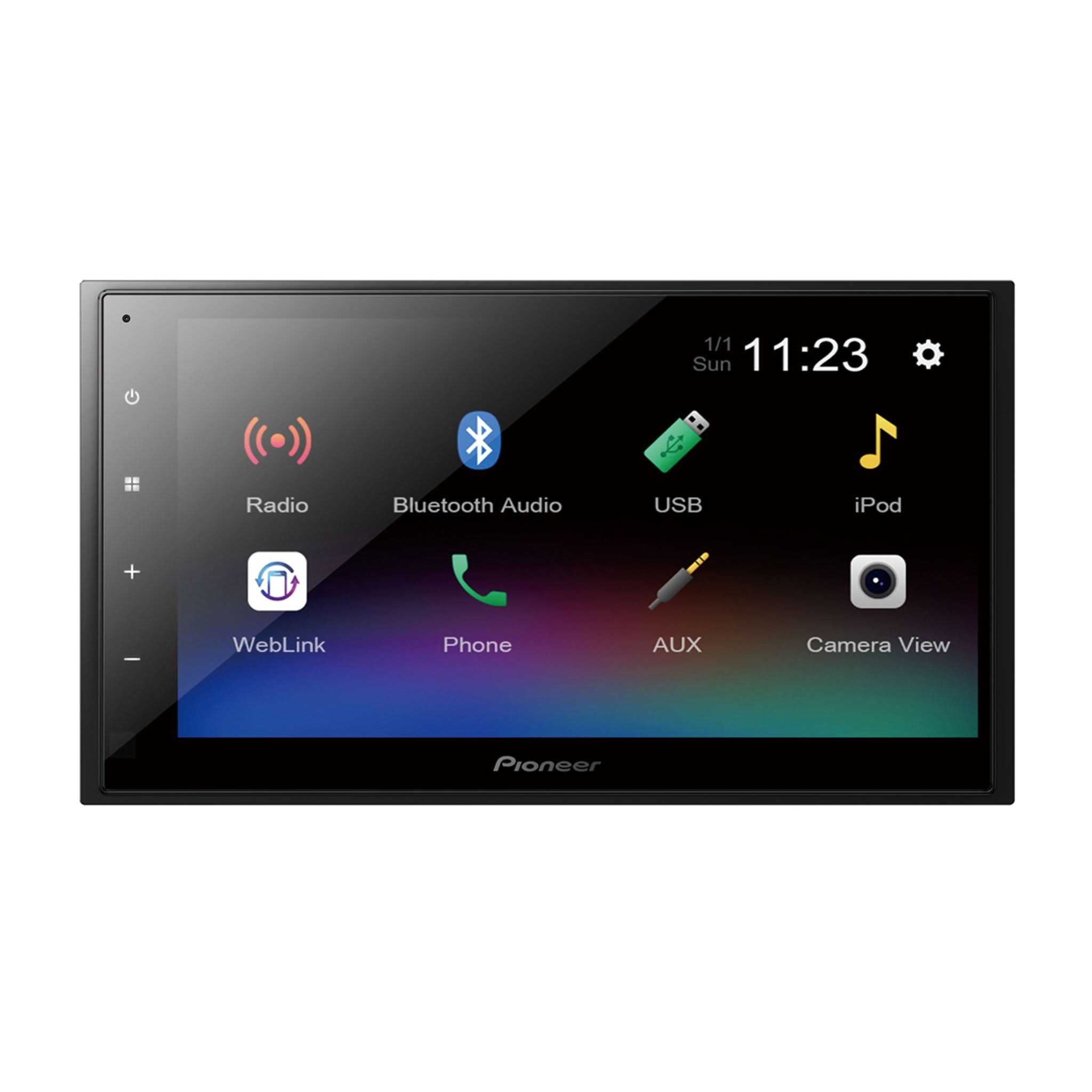

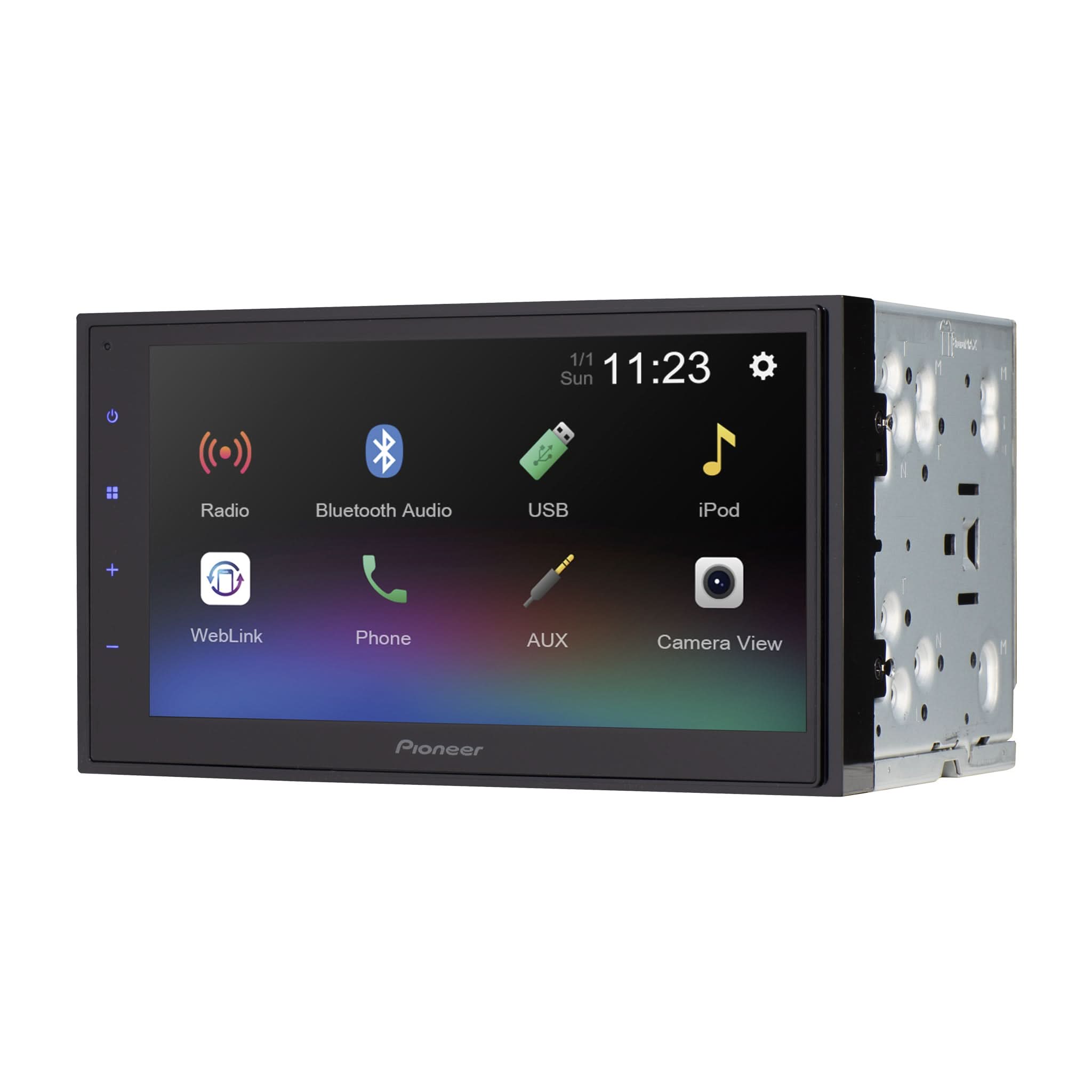

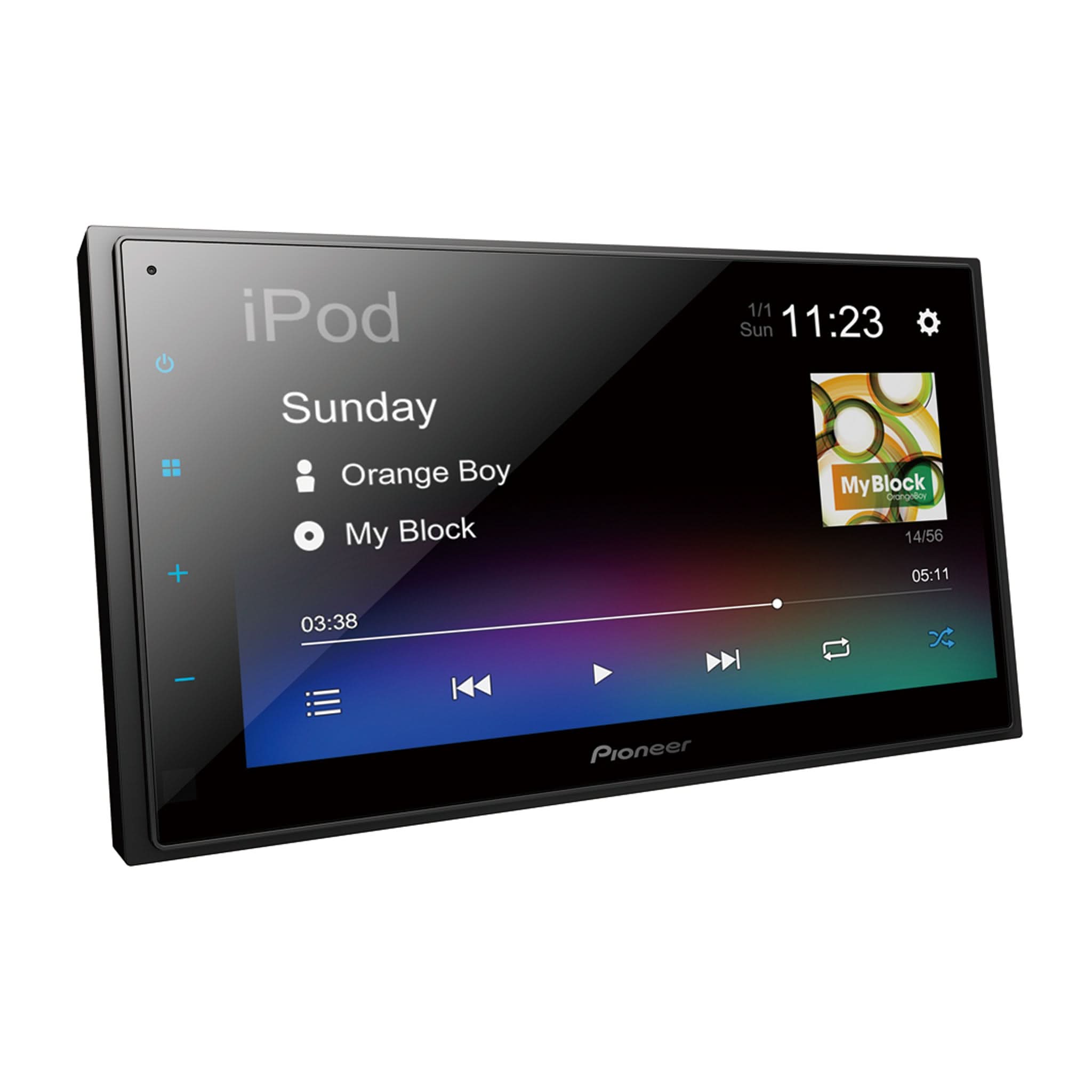

6.8″ – Weblink® and Amazon Alexa via Pioneer Vozsis, Bluetooth® – Multimedia Digital Media Receiver with back-up camera input.
Features
Double-Din Chassis
6.8″ WVGA capacitive display
Weblink®
Amazon Alexa via Pioneer Vozsis
Built-in Bluetooth®
Back-up camera input
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm |
RCA Preamp Outputs 5-ch |
| RCA Preout Voltage 2V |
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Fixed |
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified) |
| Music Browser USB |
Remote Control Included |
| Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 key colors,3 Preset Background Images |
Device (Non-DIN/Modular Unit) 2-DIN |
| Dimmer Automatic with vehicle illumination, Manual |
Display Off Mode Yes |
| Monitor Mechanism Fixed |
Resolution WVGA (800 x 480) |
| Screen Size/Aspect Ratio 6.8″/16:9 |
Touch Screen Capacitive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Hands-Free Yes |
| Microphone Included Included |
Phone Registation 5-phone |
| Secure Simple Pairing (SSP) Yes |
Serial Port Profile (SPP) Yes |
TUNER
| Best Station Memory Yes |
Local Seek tuning Yes |
| Presets 18 FM 12 AM |
PS (Preset Scan) Hide or display radio station name |
| RDS Yes |
INTEGRATION
| Amazon Alexa Paired with Pioneer Vozsis |
Mobile Operating System Android,Apple iOS |
| Pandora® Bluetooth Audio Source |
Pioneer App Compatibility Vozsis Android, Vozsis iPhone |
| Siri® Eyes Free (VR) (Internet Required) iPhone Only |
Spotify Bluetooth Audio Source |
| Voice Control Yes |
Weblink 2.0 |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB AAC Audio Playback,FLAC Audio Playback (Hi-Res),MP3 Audio Playback,WAV Audio Playback (Hi-Res),WMA Audio Playback |
Audio Video Playback via USB .avi,.mpg/mpeg,.mp4,.mkv,.mov,.flv,.m4v,.ts/.m2ts/.mts,H.263,H.264 |
| Image Display Via USB BMP,JPEG,PNG |
AUDIO
| Audio Bass Boost Yes |
Balance Yes |
| Built-in Amplifier MOSFET 50 W x 4 |
Crossover Standard Mode HPF/LPF |
| Customizable Graphic Equalizer 13 Band |
DA Converter 24 Bit |
| Digital Signal Processor Built In |
Easy EQ (EEQ) Preset Equalizer Yes |
| Loudness High/Mid/Low/Off |
Speaker Output 4-ch |
| Subwoofer Control Yes |
EXPANDABILITY
| Audio Video Inputs Input 1 – Backup Camera Dedicated,Input 2 – AUX (Minijack) |
Firmware upgradability Yes |
| RCA-Video-Output Yes |
USB Single Rear Type-A (5V, 1-1/2 A) |
| USB Direct Control for iPhone® 5s and newer |
