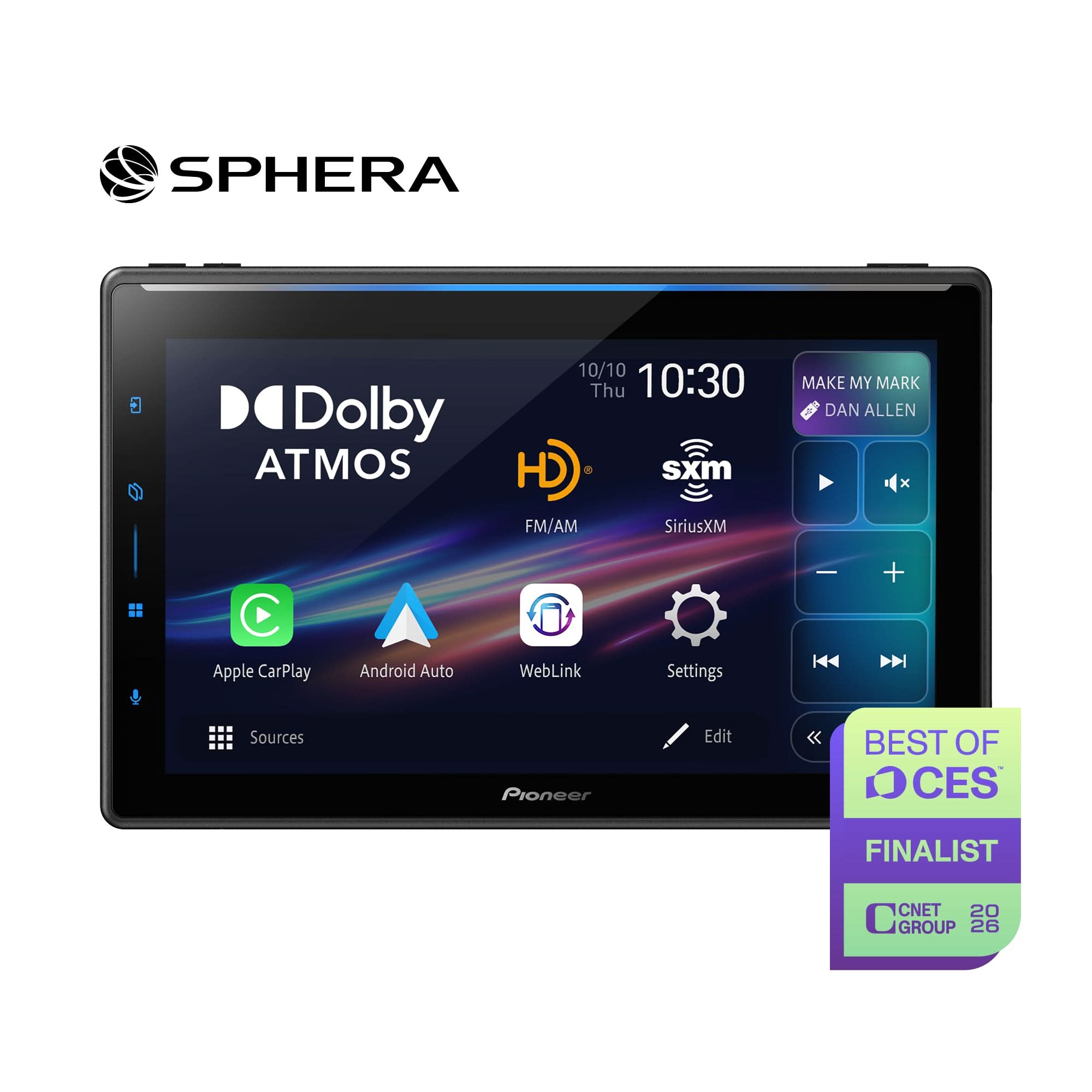

10.1″ High-Quality Floating-screen – Dolby Atmos via CarPlay and Split Screen, Stereo Spatial Sound, Android Auto Wireless, Bluetooth® – Multimedia Digital Media Receiver

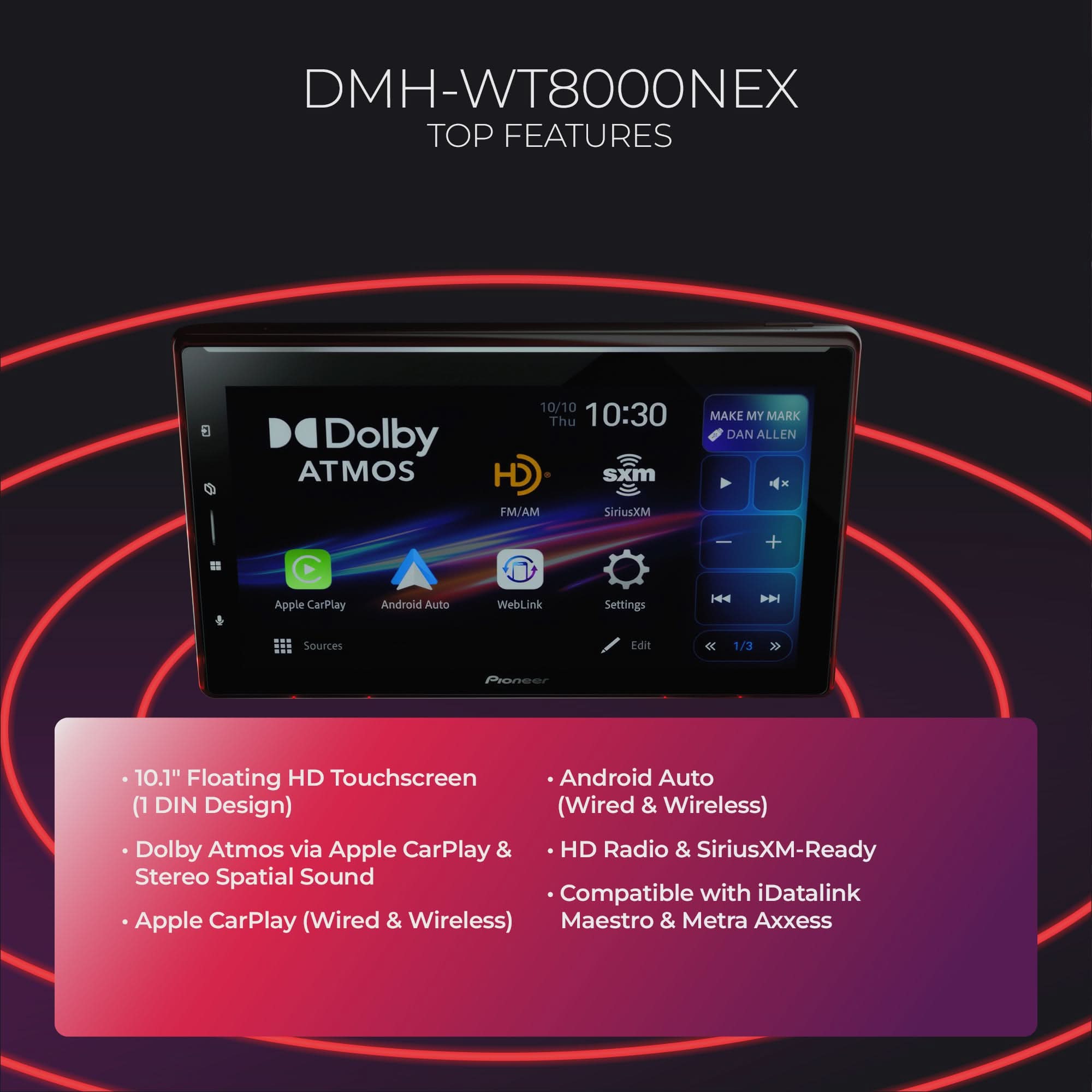

Features
Dolby Atmos® via CarPlay® & Stereo Spatial Sound
Pioneer Autotuning with Seat Calibration
10.1″ 720p HD Floating Touchscreen (1-DIN Chassis)
Wireless/Wired Apple CarPlay® & Android Auto™
Built-in HD Radio™ and SiriusXM-Ready™
iDatalink® Maestro™ and Metra Axxess® compatible
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm , 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
Rca Preamp Outputs 6-ch |
| Rca Preout Voltage 4V |
Rms Power Output (Cta-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Fixed |
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified) |
| Remote Control Wireless control with PxLink |
Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 display colors, 112 key colors |
Device (Non-DIN/Modular Unit) 1-DIN, Floating |
| Dimmer Automatic with vehicle illumination, Timer Controlled, Manual |
Display Off Mode Yes |
| Home Screen Customization Yes |
Monitor Mechanism Adjustable, Floating |
| Resolution HD (1280 x 720) |

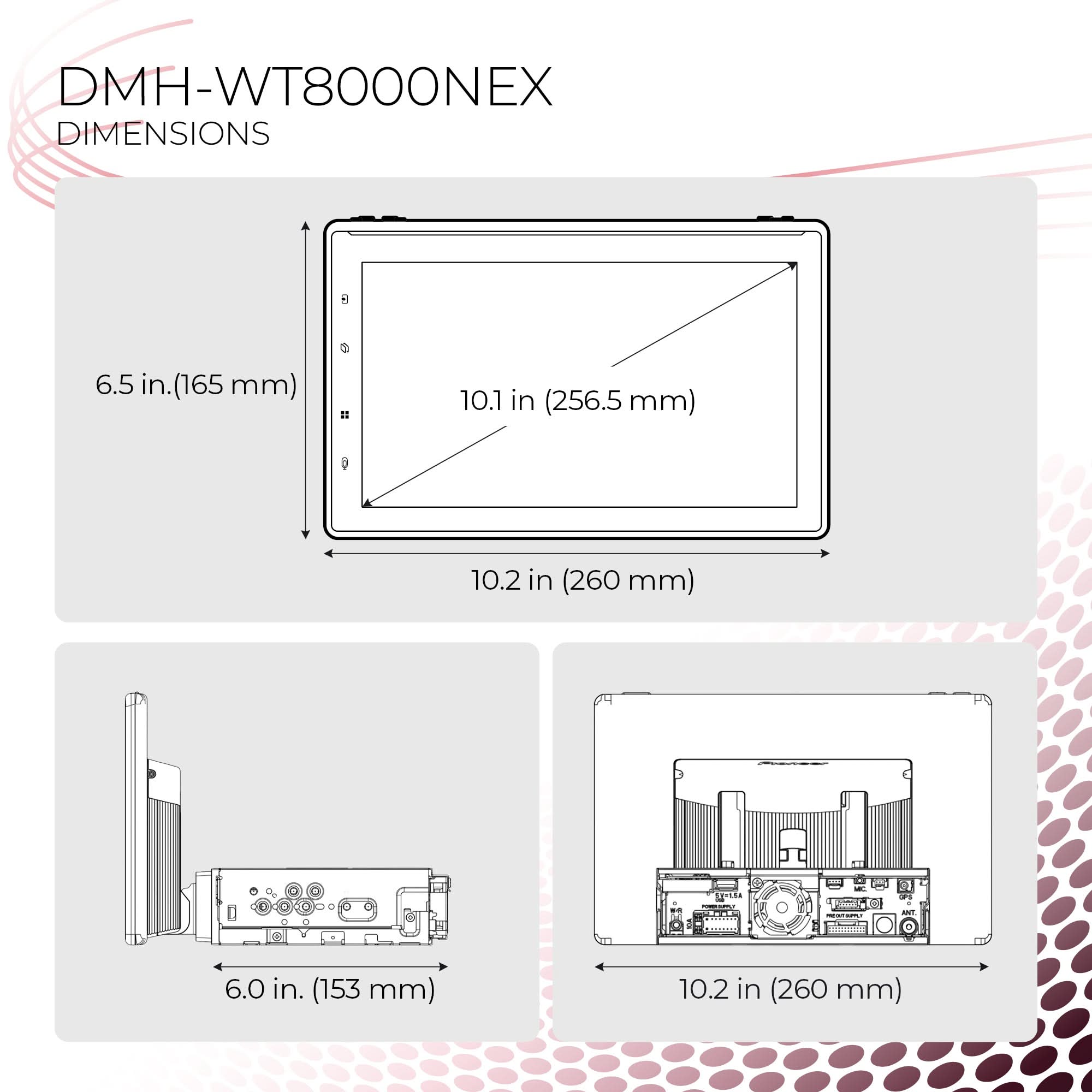

Screen Size/Aspect Ratio 10.1″/16:9 |
| Touch Screen Capacitive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Dual Phone Connection Yes |
| Hands-Free Yes |
Microphone Included Included |
| Phone Registation 5-phone |
Secure Simple Pairing (SSP) Yes |
| Serial Port Profile (SPP) Yes |
TUNER
| Best Station Memory Yes |
HD Radio™ Built In, Artist Experience, Multicasting |
| Hybrid Radio Yes |
Local Seek tuning Yes |
| Presets 18 FM, 6 AM |
RDS Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) Yes |
INTEGRATION
| Android Auto™ Wireless Connection or Wired USB Connection |

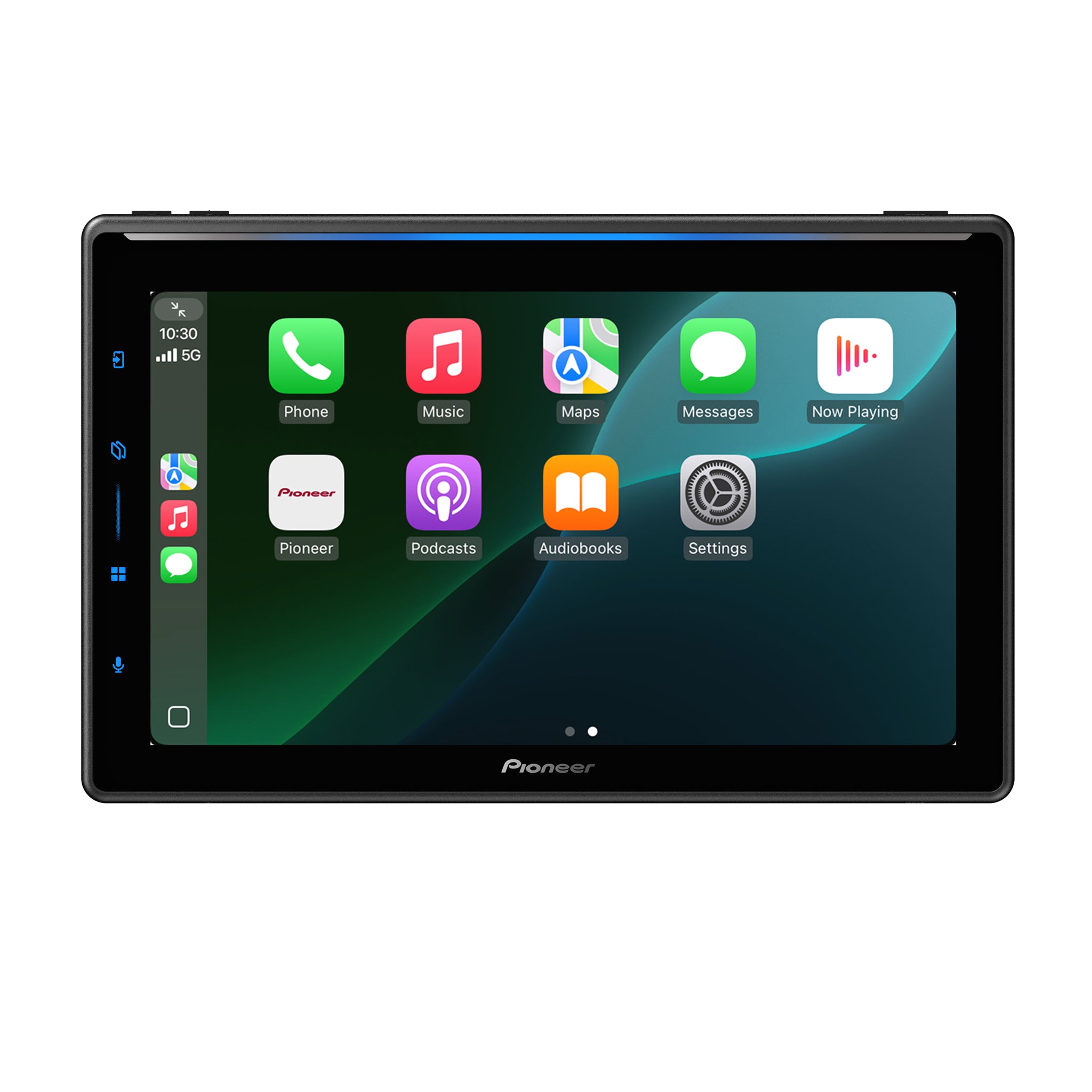

Apple® CarPlay Wireless Connection or Wired USB Connection |
| Mobile Operating System Android – Wired/Wireless, Apple iOS – Wired/Wireless |
Pandora® With Apple CarPlay or Android Auto |
| Pioneer App Compatibility PxLink |
Siri® Eyes Free (VR) (Internet Required) iPhone Only |
| Spotify With Apple CarPlay or Android Auto |
Voice Control Yes |
| Weblink 3.0 |
Wi-Fi Yes (for wireless Apple CarPlay / wireless Android Auto / PxLink connection) |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi Res files playable with downsampling), AAC Audio Playback, FLAC Audio Playback (Hi Res files playable with downsampling) |
Audio Video Playback via USB .avi, .mpg/mpeg, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts |
| Image Display Via USB BMP, JPEG, PNG |
AUDIO
| Advanced Sound Retriever Mode-1/Mode-2/Off |
Audio Bass Boost Yes |
| Auto Sound Levelizer (ASL) Yes |
Balance Yes |
| Built-in Amplifier MOSFET 50 W x 4 |
Crossover Network Mode HPF/Band Pass/LPF |
| Crossover Standard Mode HPF/LPF |
Customizable Graphic Equalizer 13 Band |
| DA Converter Pioneer Dual-Core 48-Bit DSP/DAC |
Digital Signal Processor Built-in Pioneer Dual-Core 48-Bit DSP/DAC |
| Dolby Atmos Yes (via Apple CarPlay) |
Easy EQ (EEQ) Preset Equalizer Yes |
| Listening Position Selector Yes |
Loudness High/Mid/Low/Off |
| Speaker Output 4-ch |
Spectrum Analyzer Yes (Luminous Bar & Background image) |
| Stereo Spatial Sound Yes |
Subwoofer Control Yes |
| Time Alignment Auto, Manual |
EXPANDABILITY
| Audio Video Inputs Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack), Input 3 – 2nd Camera |
OEM Integration iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess |
| OTA Update Compatabile Yes |
Parking Assist Lines Yes |
| USB Single Rear Type-A (5 V, 1.5 A) |
