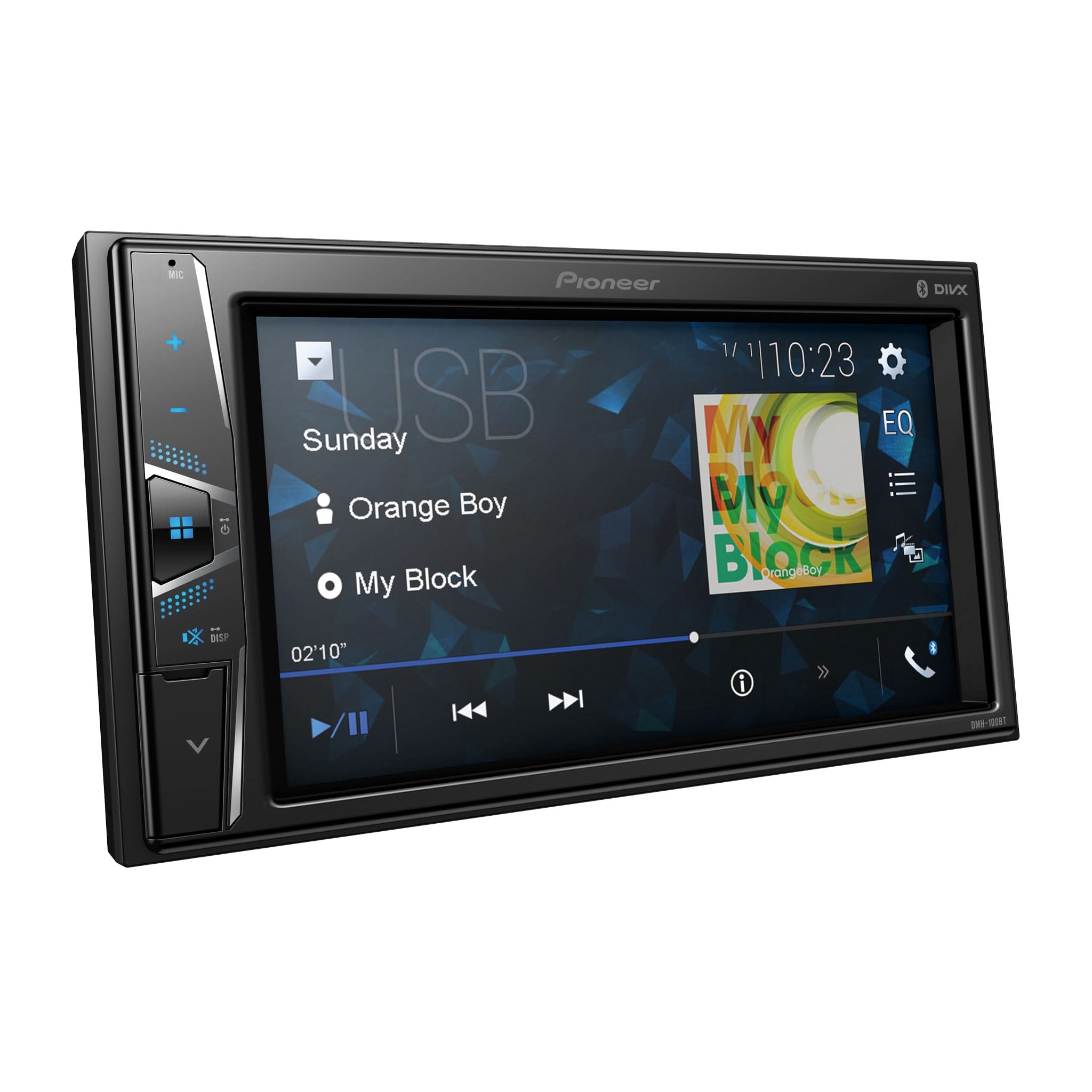

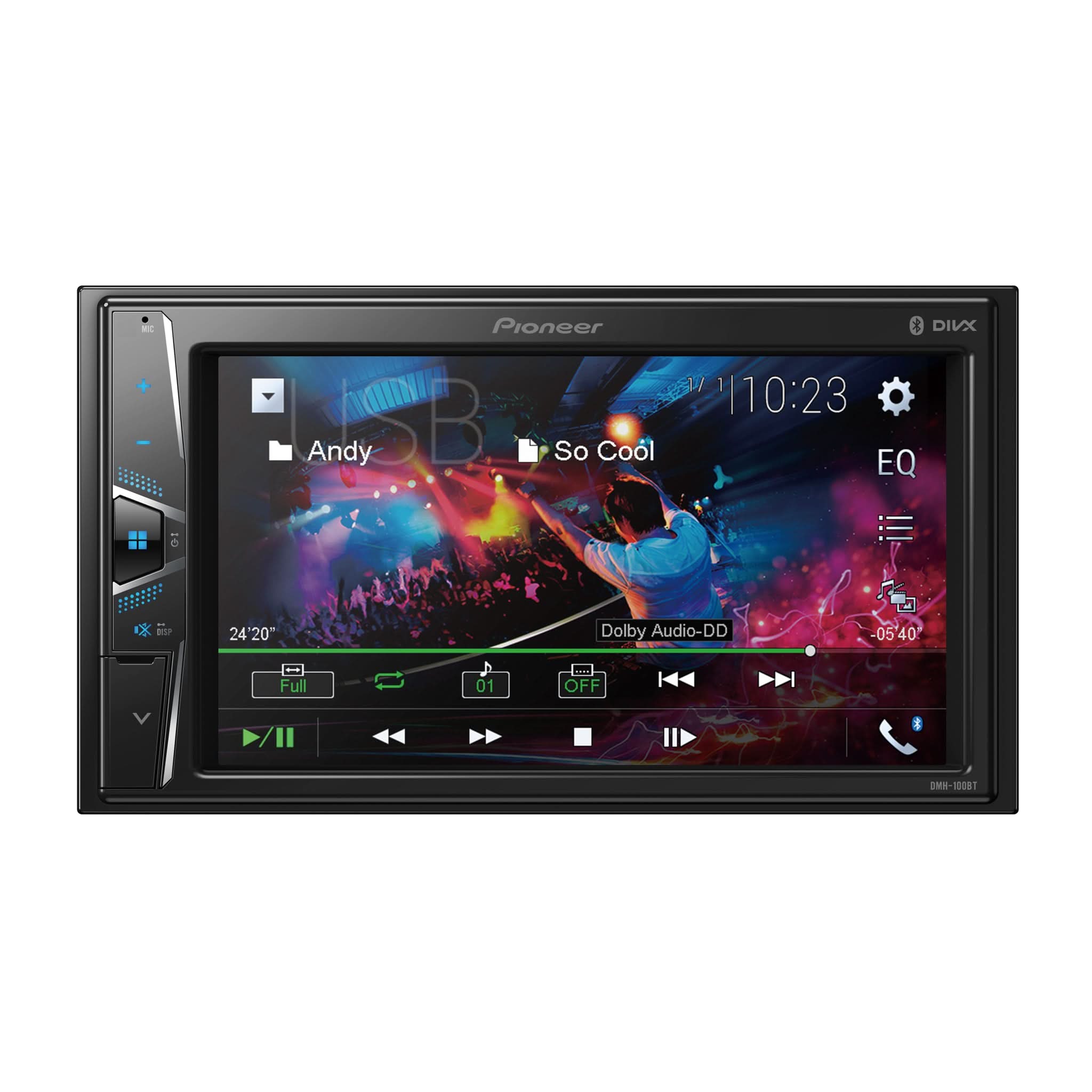

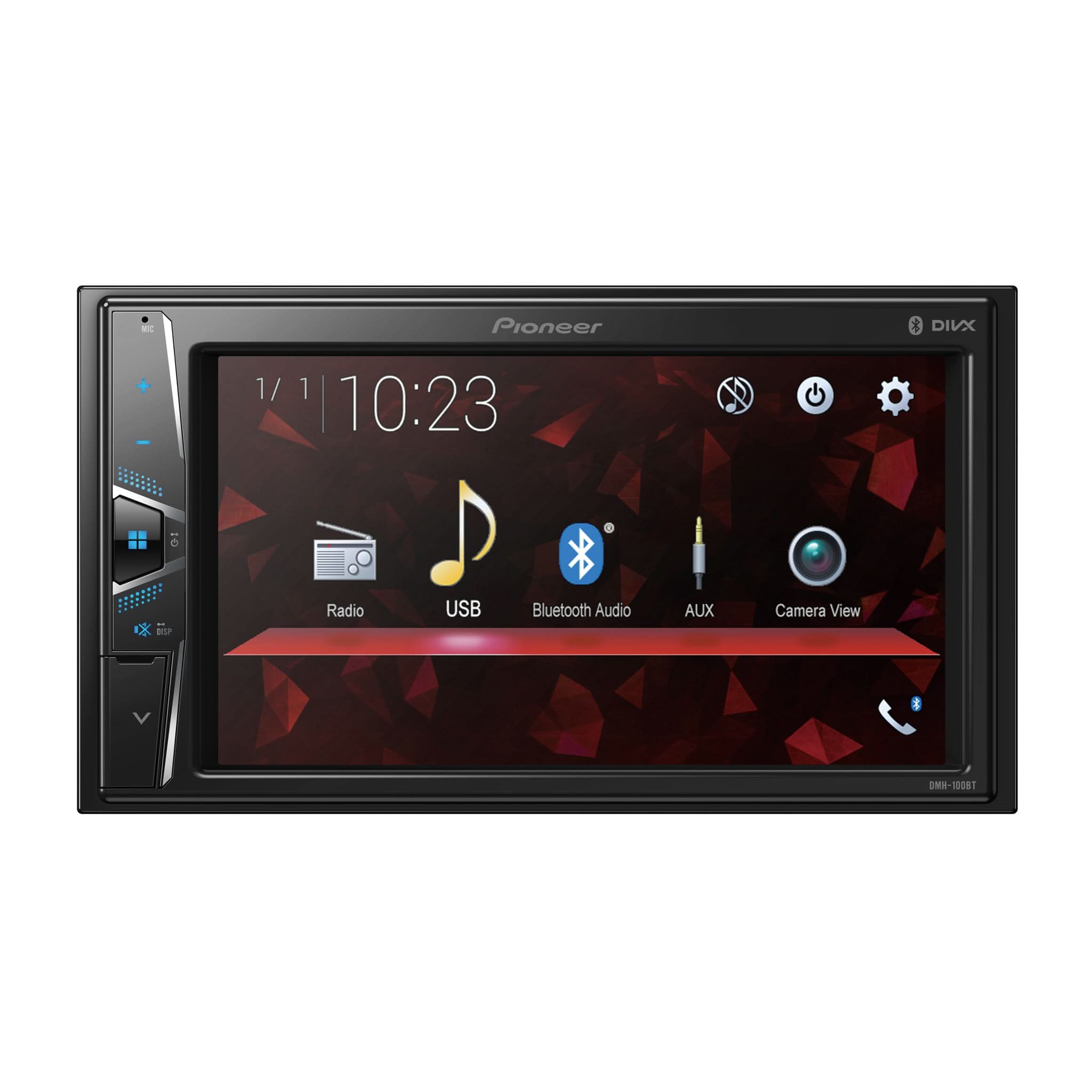

6.2″ – WVGA Display, Built-in Bluetooth – Digital Media Receiver
Features
6.2″ Digital Media Receiver
Built-in Bluetooth
Back up Camera Ready
Steering Wheel Control Ready
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm |
RCA Preamp Outputs 4-ch |
| RCA Preout Voltage 2V |
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Fixed |
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified) |
| Music Browser USB |
Remote Control Optional |
| Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 Display Colors,Fixed Illumination |
Device (Non-DIN/Modular Unit) 2-DIN |
| Dimmer Automatic with vehicle illumination, Manual |
Display Off Mode Yes |
| Monitor Mechanism Fixed |
Resolution WVGA (800 x 480) |
| Screen Size/Aspect Ratio 6.2″/16:9 |
Touch Screen Resistive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Hands-Free Yes |
| Microphone Included Integrated |
Phone Registation 3-phone |
| Secure Simple Pairing (SSP) Yes |
TUNER
| Best Station Memory Yes |
Local Seek tuning Yes |
| Presets 18 FM, 6 AM |
RDS Yes |
INTEGRATION
| Mobile Operating System Android,Apple iOS |
Music Playback (MTP) Yes |
| Pandora® Bluetooth Audio Source |
Spotify Bluetooth Audio Source |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB WMA Audio Playback,WAV Audio Playback (Hi-Res),AAC Audio Playback,MP3 Audio Playback |
Audio Video Playback via USB .avi,.mpg/mpeg,.divx |
| Image Display Via USB BMP,JPEG |
AUDIO
| Audio Bass Boost Yes |
Balance Yes |
| Built-in Amplifier MOSFET 50 W x 4 |
Crossover Standard Mode HPF/LPF |
| Customizable Graphic Equalizer 7 Band |
DA Converter 24 Bit |
| Digital Signal Processor Built In |
Easy EQ (EEQ) Preset Equalizer Yes |
| Loudness High/Mid/Low/Off |
Speaker Output 4-ch |
| Subwoofer Control Yes |
EXPANDABILITY
| Audio Video Inputs Input 1 – Backup Camera Dedicated,Input 2 – AUX (Minijack) |
USB Front Type-A (5V, 1 A) |
