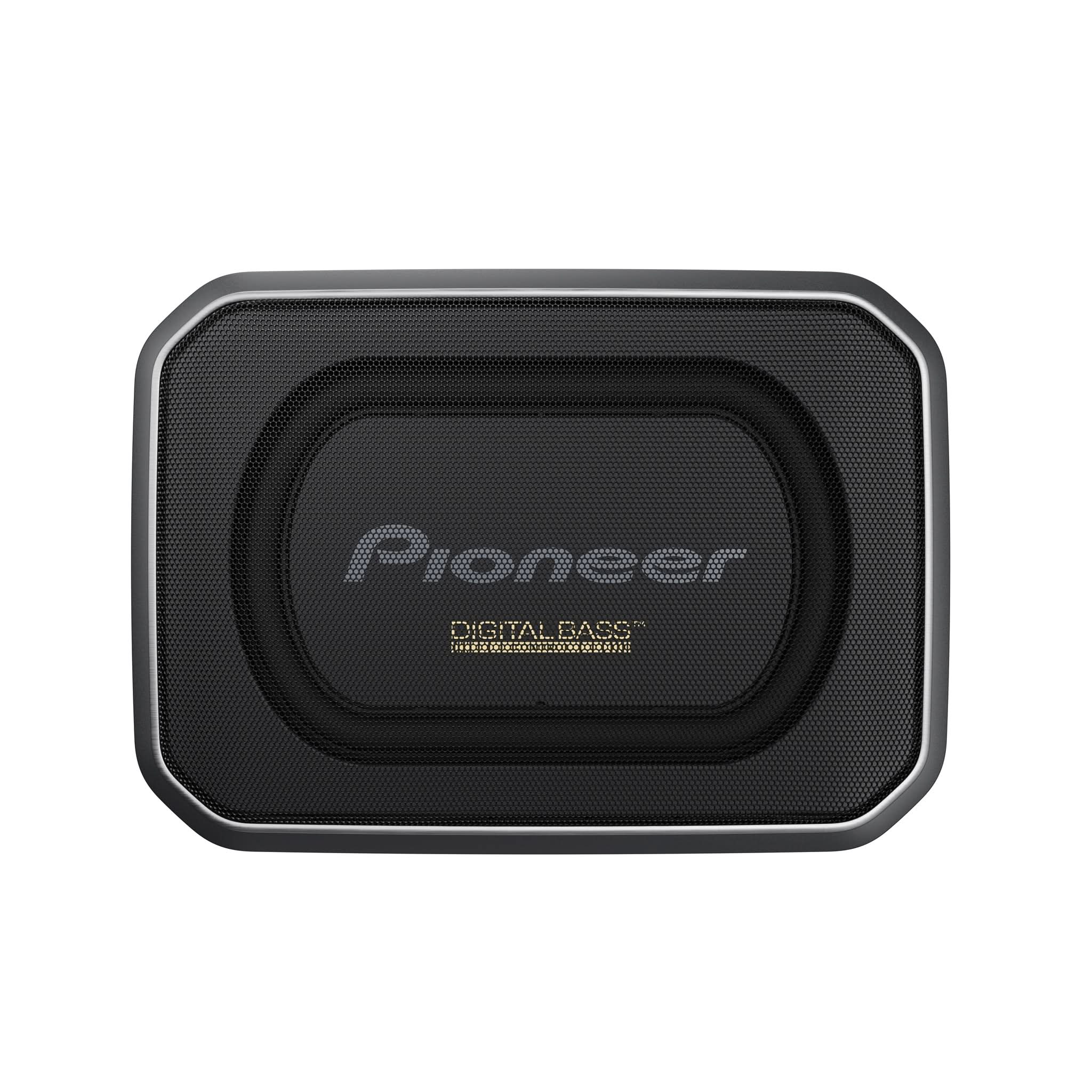

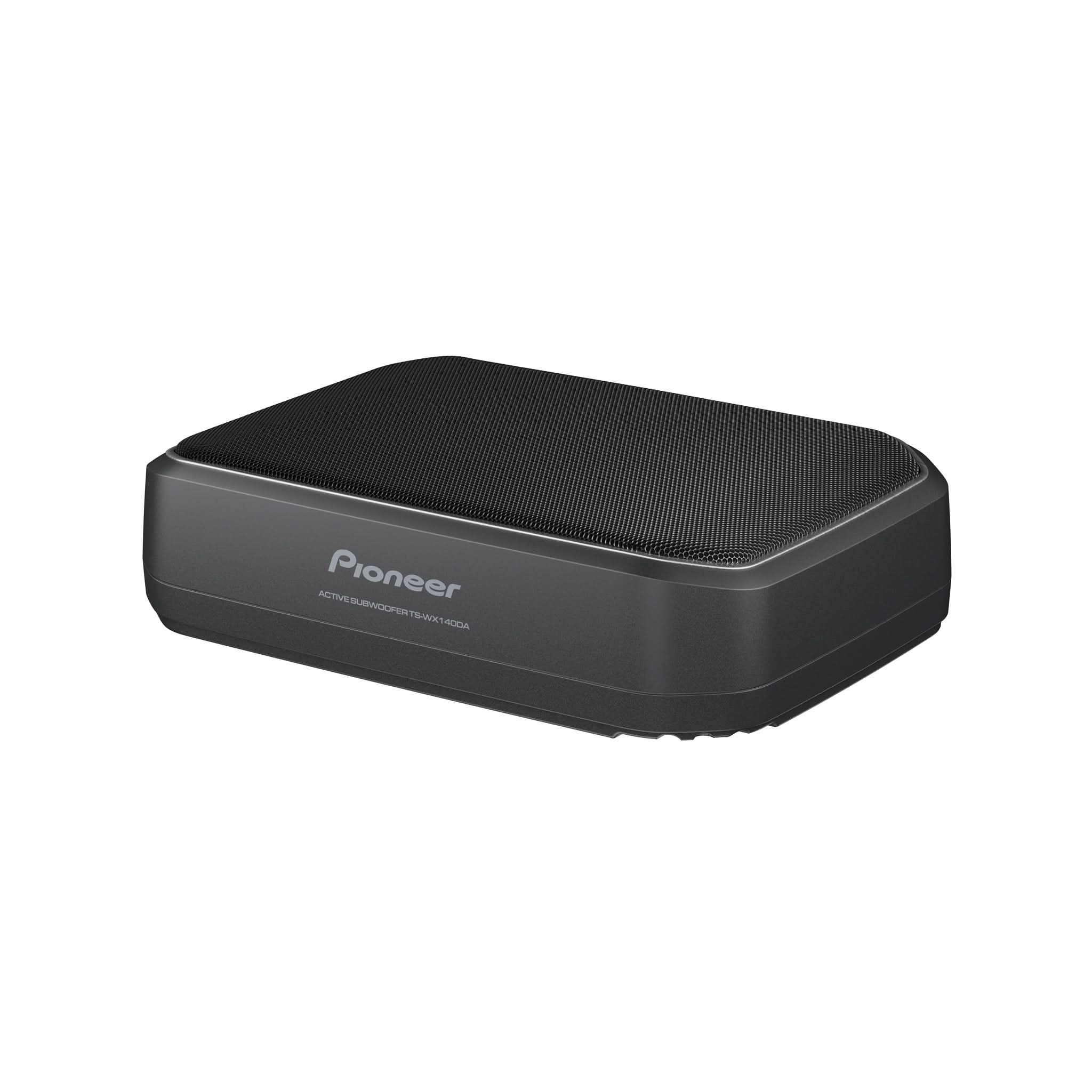

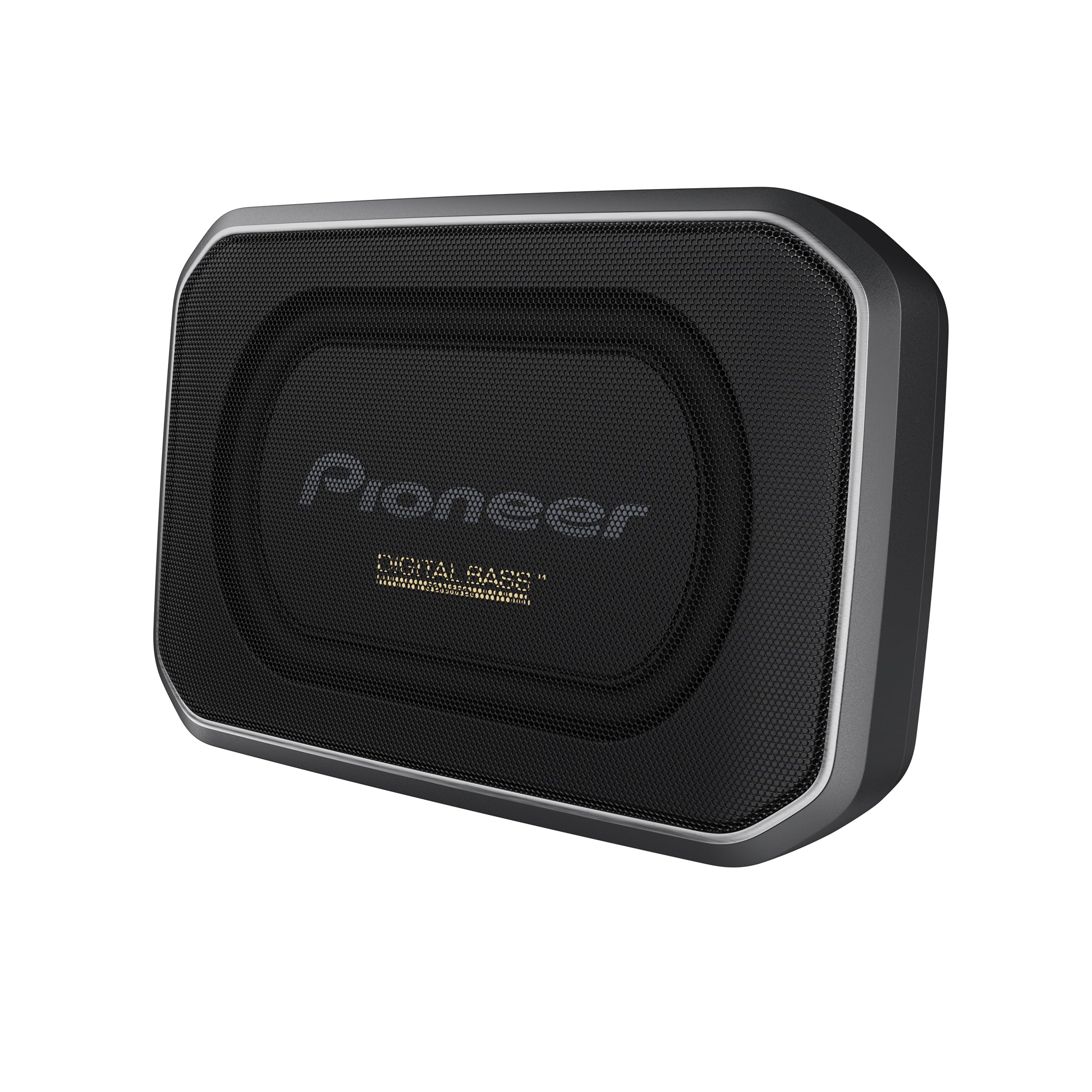

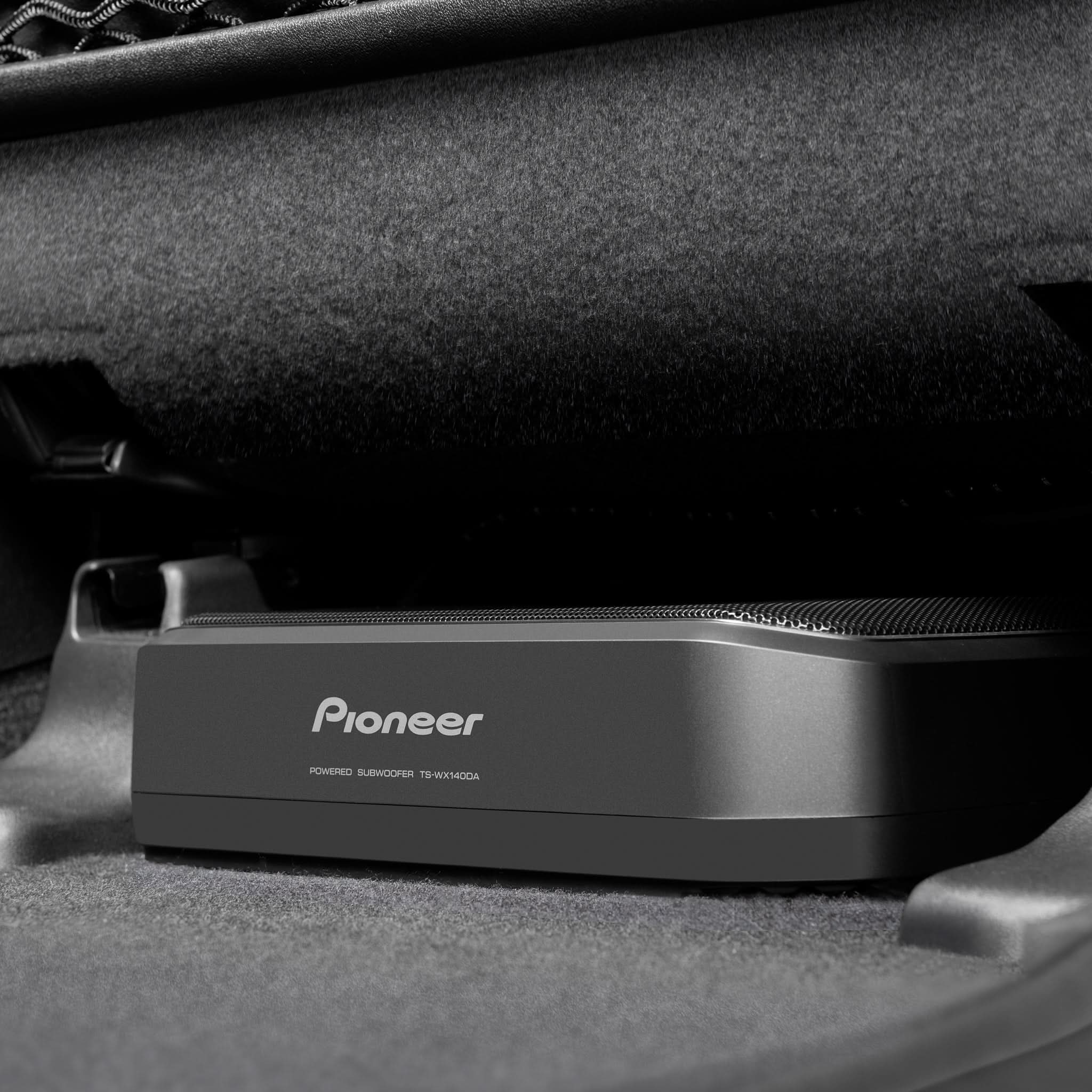

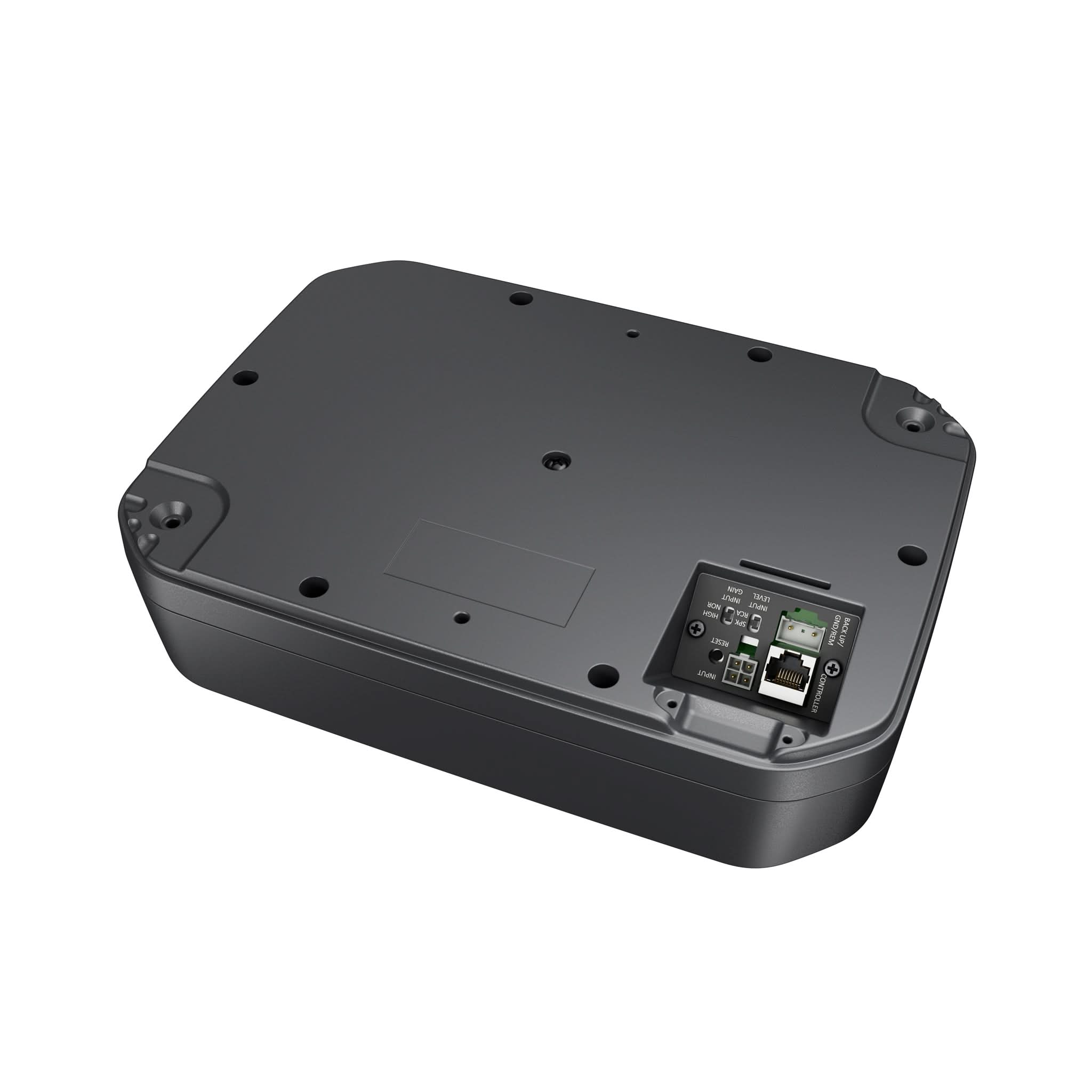

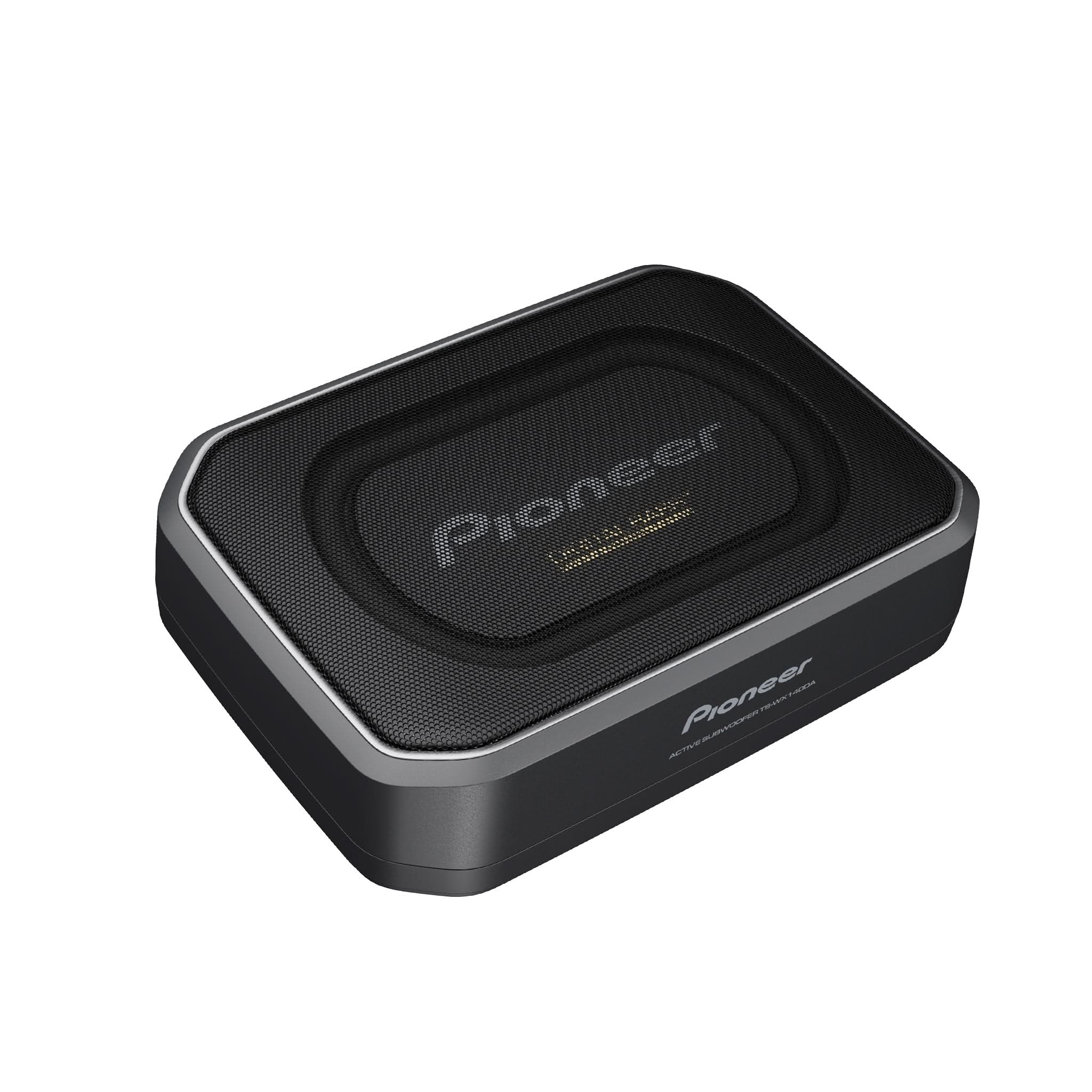

Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat or limited space applications and with ultra-low current consumption.
Features
Built-in 170 W (Max.) Class D amplifier
8″ x 5.25″ Aluminum Rectangular cone
Speaker Efficiency: 95dB to 100 dB (in-car with 2V input)
Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
Bass Modes (DSP) : Deep / Natural / Dynamic mode

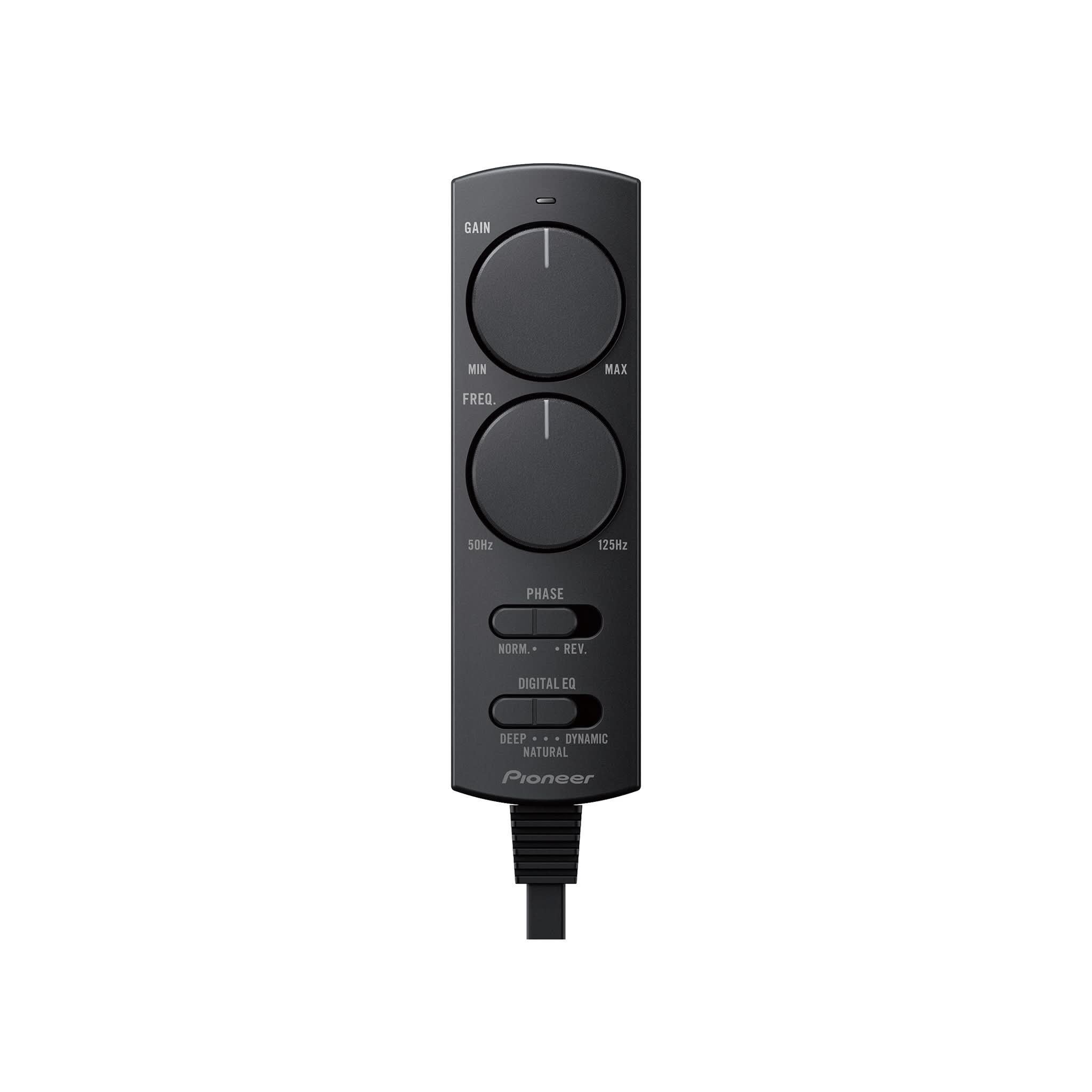

Wired Bass Remote Control (included)
Volume, cross-over, bass modes, phase control from the remote
Box dimensions (WxHxD) : 11.75″ (299mm) x 2.75″ (70mm) x 7.785″ (200mm)
- TS-W3020PRO
12″ – 3500 W Max Power, Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare
- TS-WX010A
Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare
- TS-WX1010A
10″ – 1100 W pre-loaded subwoofer, sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare
- TS-A120D4
12″ – 1500 W Max Power, Dual 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Compo… $70.00 Add to Compare
- TS-WX106B
10″ – 1100 W Max Power, Single 4-ohm Voice Coil, IMPP™ cone – Pre-loaded Subwoofer $110.00 Add to Compare
- TS-A2000LD2
8″ – 700 W Max power, Glass-fiber & Mica reinforced IMPP™ Cone, Dual 2 Ohm Voice C… $160.00 Add to Compare
- TS-A25S4
10″ – 1200 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone – Component Subwoofer $80.00 Add to Compare
- TS-WX1210A
12″ – 1300 W pre-loaded subwoofer, sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare
- TS-A120S4E
12″ – 1400 W Max Power, Single 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround – Com… $50.00 Add to Compare
- TS-A301D4
12″ – 1600 W Max Power, Dual 4 Ohm Voice Coil, 2-piece Honeycomb IMPP™ Cone Struct… $140.00 Add to Compare
TS-WX140DA
Regular price $280.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover, #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Amp – Max Current Consumption 4.3 A | Amp – Power Source 14.4 V DC (10. 8 V to 15.1 V) |
| Continuous Power Handling (Rms) – Watts 50 | Frequency Response DEEP: 20 Hz to 200 Hz, DYNAMIC: 40 Hz to 160 Hz, NATURAL: 40 HZ to 200 Hz |
| Input Level @Gain Max DEEP: 60mV+60mV/22kOhm, DYNAMIC: 30mV+30mV/22kOhm, NATURAL: 60 mV+60 mv/22kohm | Maximum Peak Power Handling – Watts 170 |
| Sensitivity (1W/1M) DEEP: 95 dB, DYNAMIC: 100 dB, NATURAL: 98 dB | Speaker Line Input Sensor DEEP 1.2V+1.2V/5KOhm |
| System-Type Powered |
| Amp – Grounding Negative | Built In Amp Yes |
| CarSoundFit Yes | Subwoofer Grille Fully Covered Steel Mesh |
| Woofer Dimensions 8″ x 5.25″ |
| Basket Material Iron Plate Press | Cone Material Cellulose fiber |
| Damper Aramid Fiber | Drive Cone Material Blended Pulp |
| Magnet Material Ferrite | Magnet Weight 17.2 oz |
| Surround Material Urethane | Surround Type Rolled |
| Voice Coil Bobbin Glass imide | Voice Coil Special Feature Heat Resistant |
| Voice Coil Type Single Voice Coil | Voice Coil wire Copper |
