4″ – 2-way, 210 W Max Power, IMPP™ cone, 30mm Tweeter – Coaxial Speakers (pair)
Features

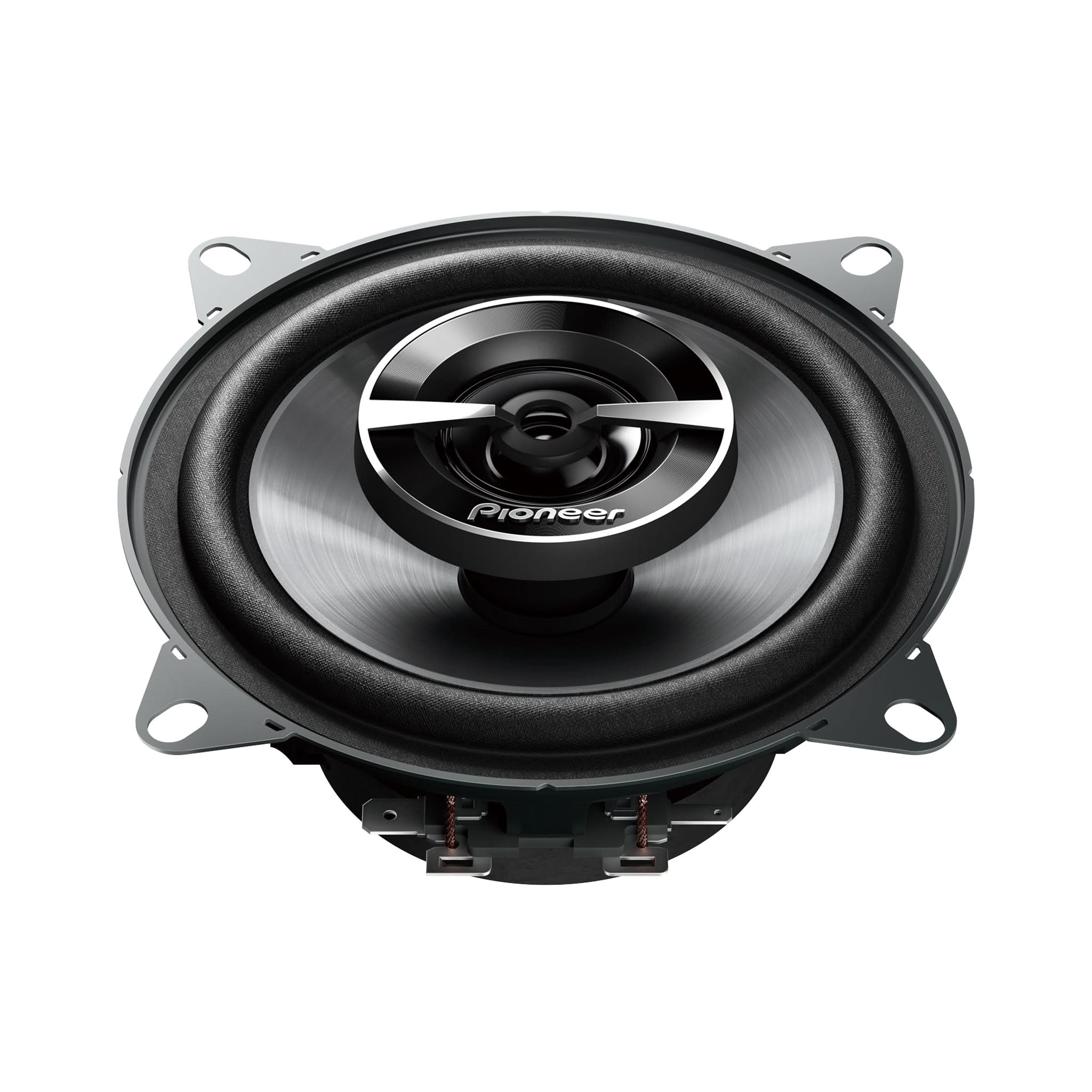

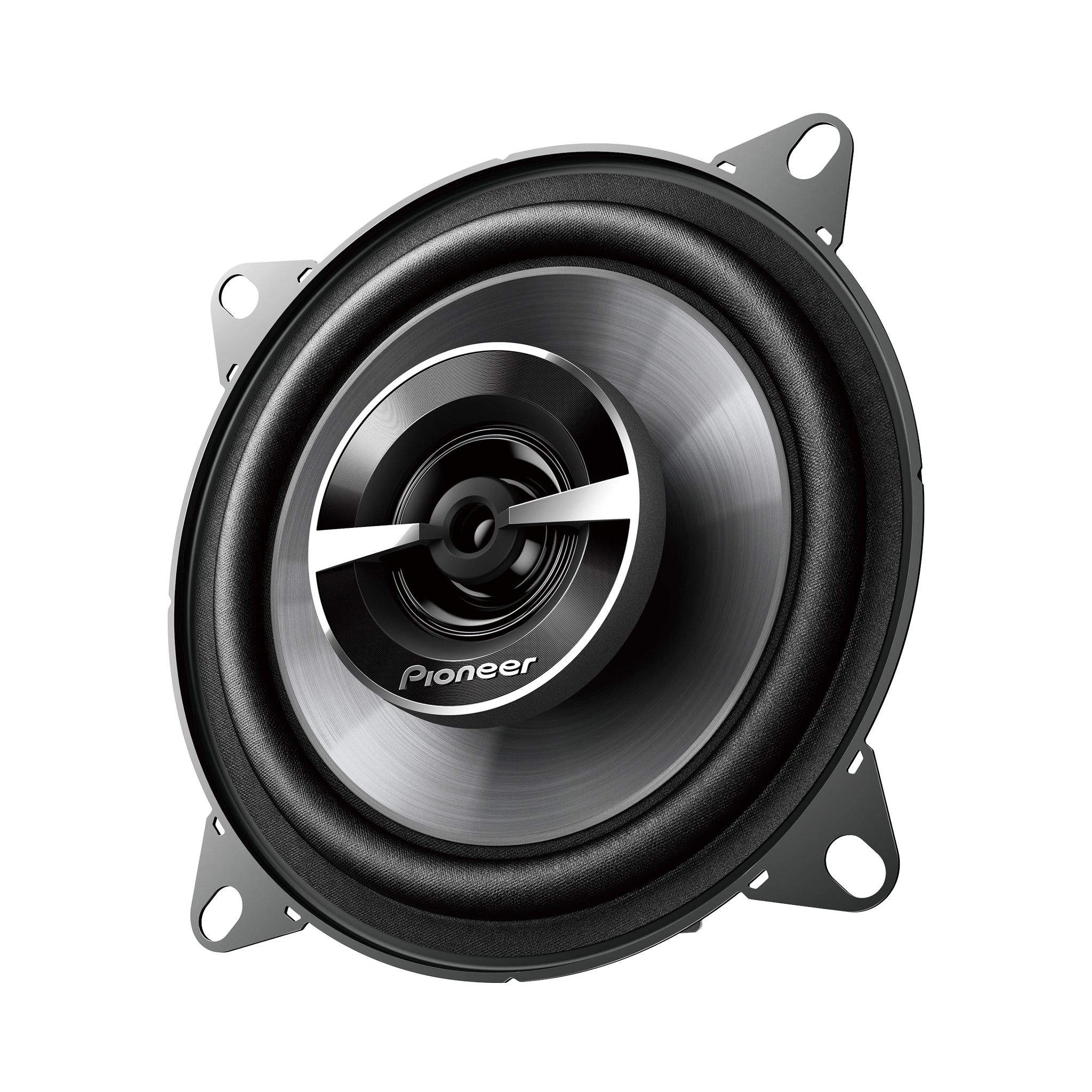

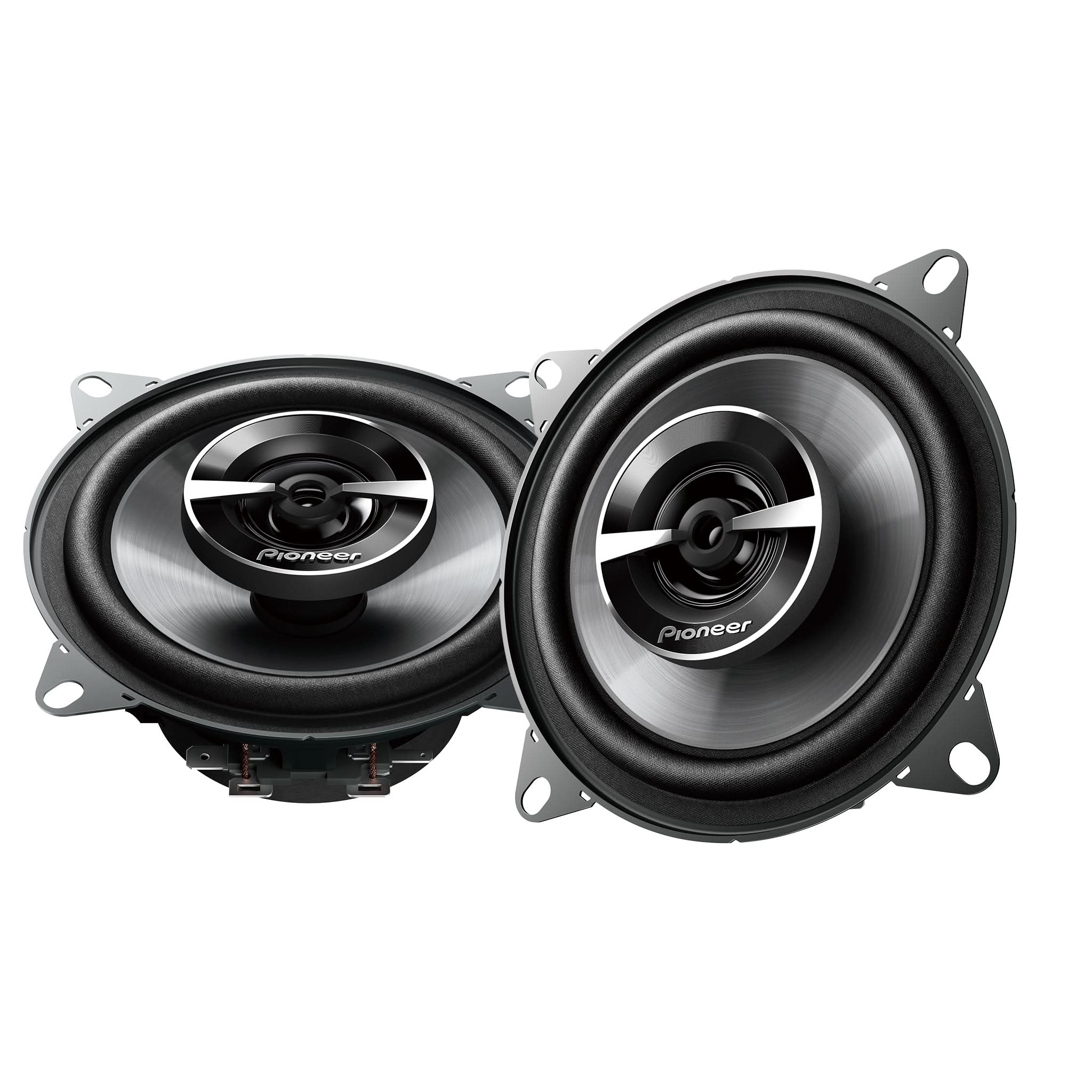

G Series 4″ 2-way Car Speakers
Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone
Rubber-coated cloth surround
30mm PET balanced dome tweeter
Handles up to 30 W RMS (210 W peak power)
Frequency range: 35-27,000 Hz
Sensitivity: 87 dB
| Continuous Power Handling (Rms) – Watts 30 | Frequency Response 35 Hz – 22 KHz |
| Maximum Peak Power Handling – Watts 210 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 87 | System-Type Coaxial 2-way, Balance Dome – Tweeter |

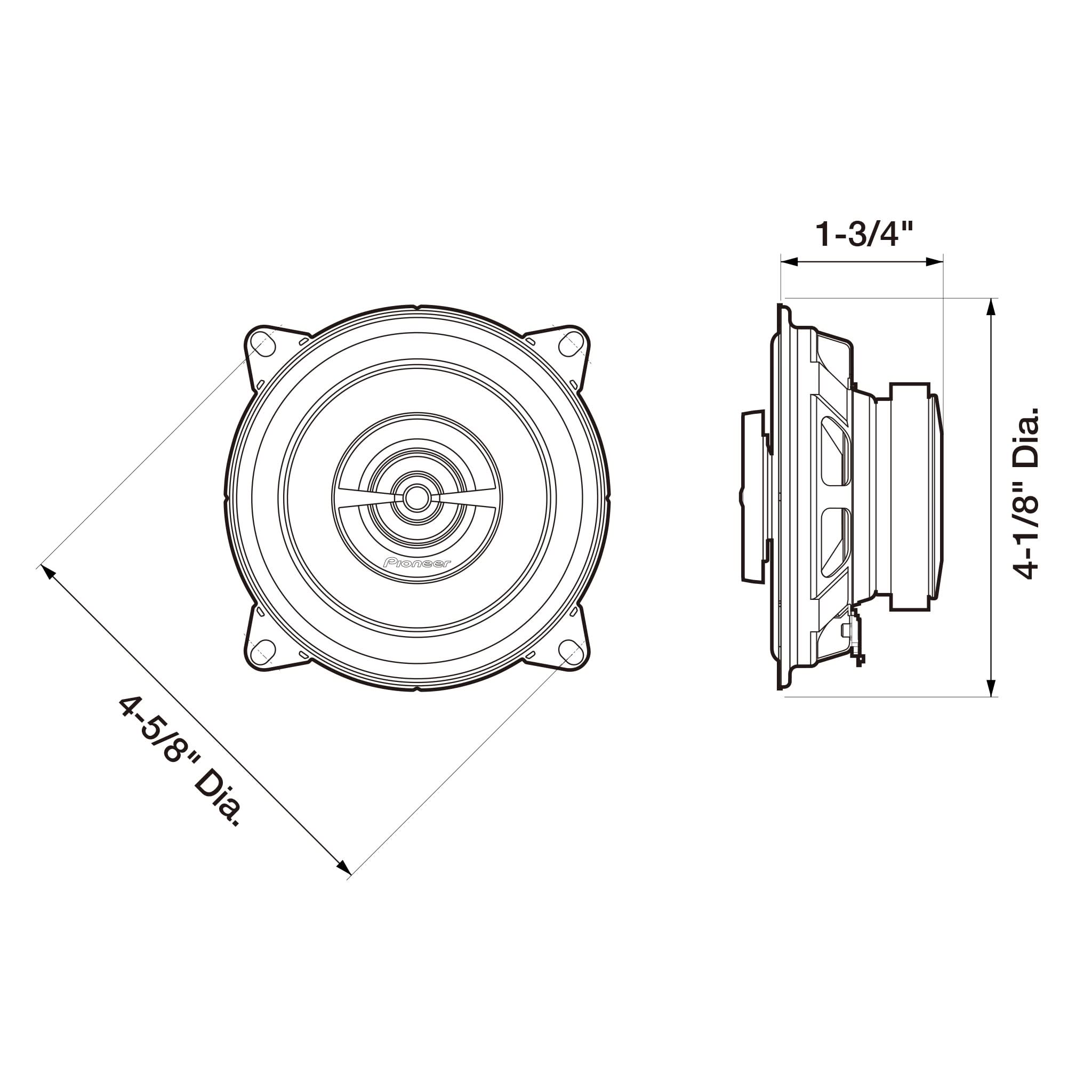

| Cut Out dimensions 4-1/8 | Mounting Depth 1-3/4″ – Tweeter |
| Tweeter Dimensions 1.18″ | Woofer Dimensions 4″ |
| Basket Material Stamped Metal | Cone Material Carbon and Mica reinforced Injected Molded Polypropylene – IMPP |
| Damper Poly cotton | Diaphragm Material Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material Ferrite | Magnet Weight 3.9 oz |
| Shorting Ring Material Copper | Surround Material Rubber Coated Cloth |
| Surround Type Rolled | Voice Coil Bobbin Kapton |
| Voice Coil wire Copper | Wire Terminals Lug Type |
