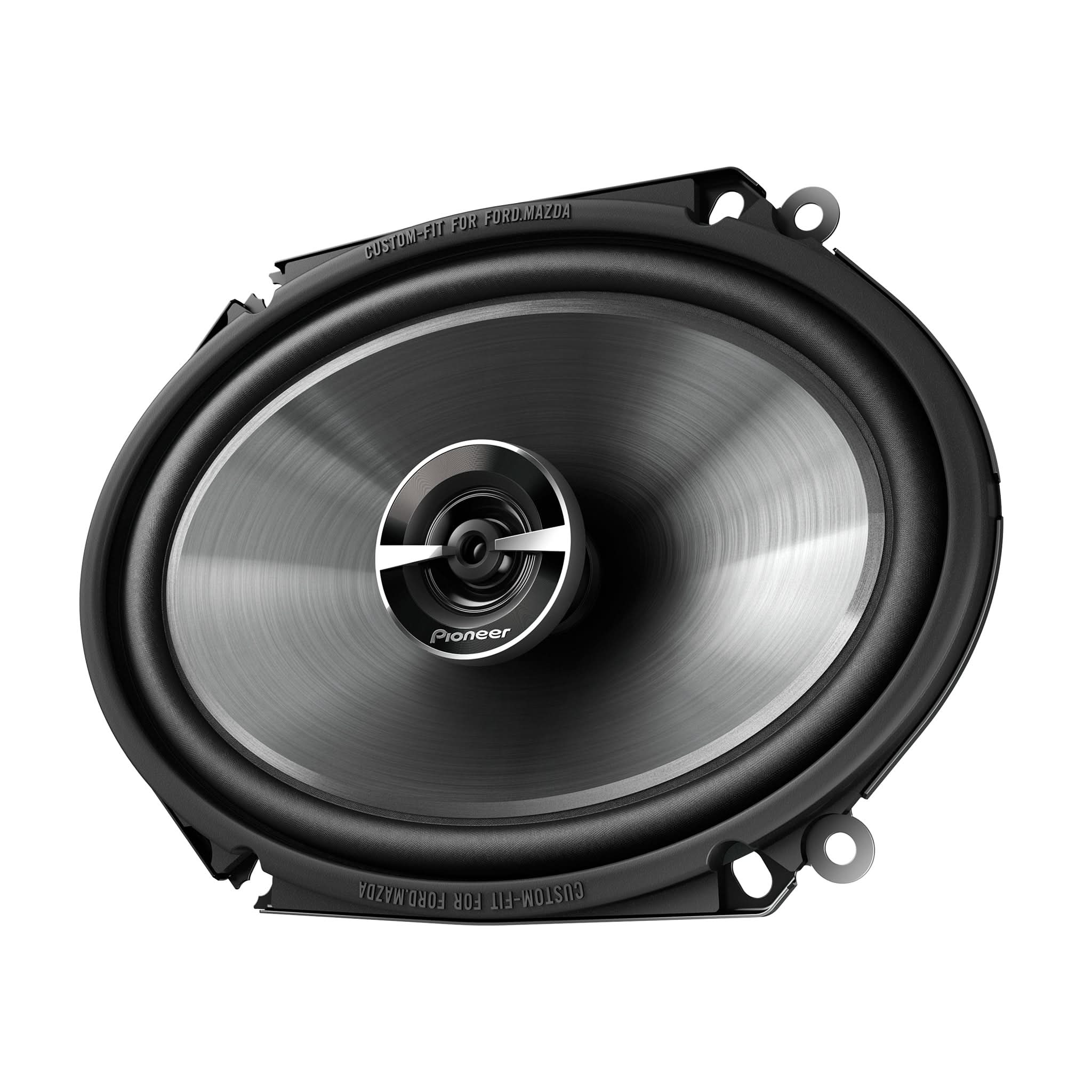

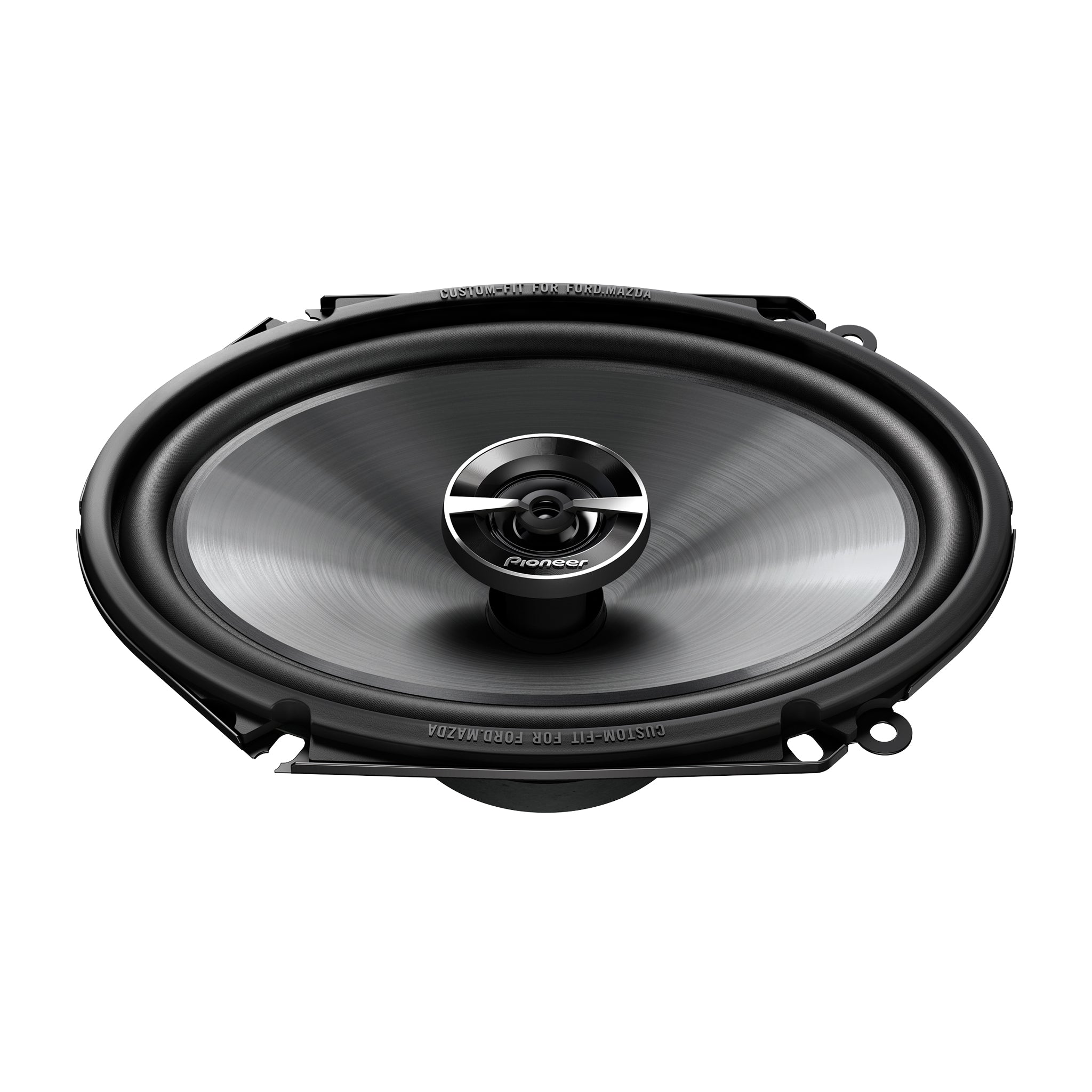

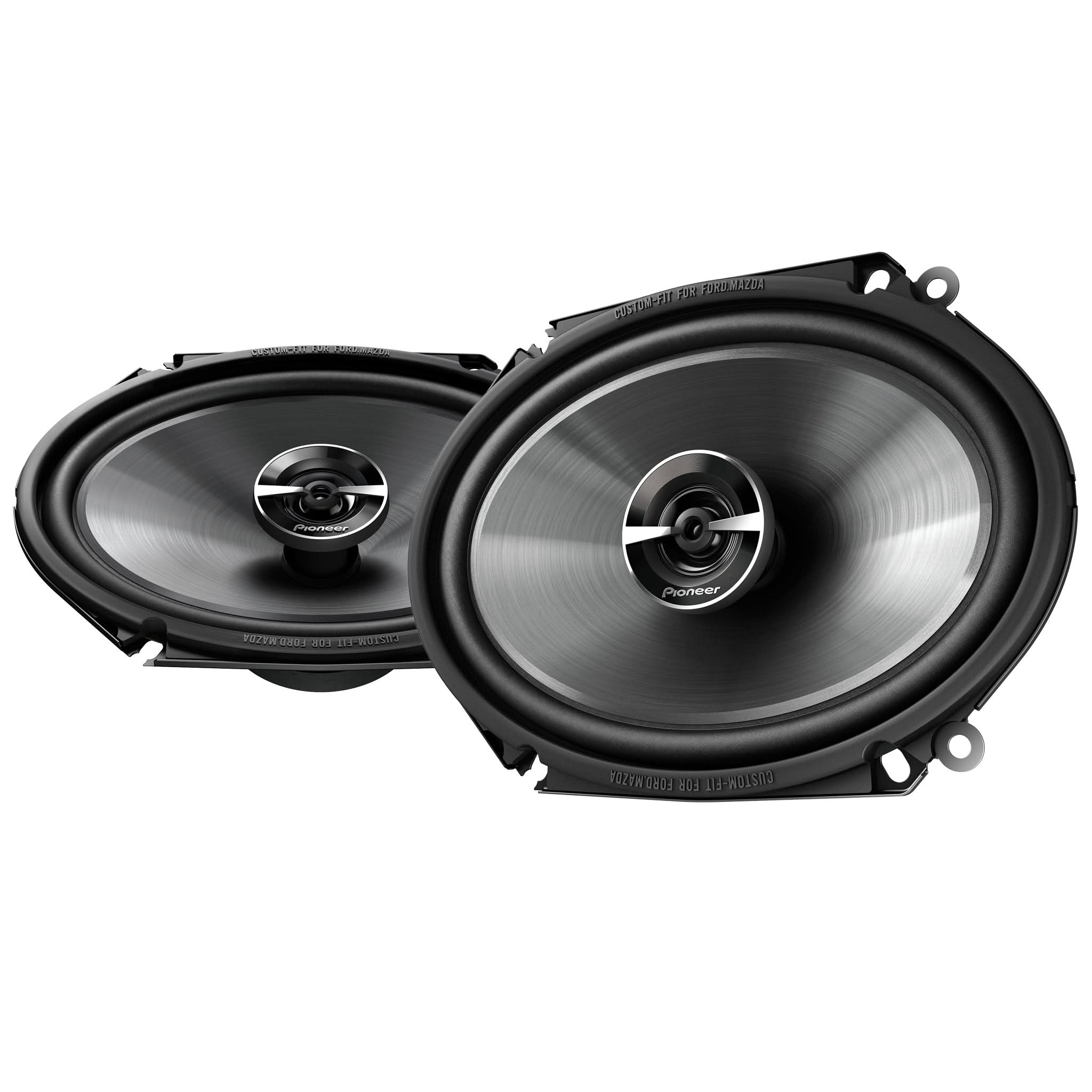

6″ x 8″ – 2-way, 250 W Max Power, IMPP™ cone, 30mm Tweeter – Coaxial Speakers (pair)
Features
G-Series 6″x8″ 2-way car speakers
Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone
Rubber-coated cloth surround
30mm PET balanced dome tweeter
Handles up to 40 W RMS (250 W peak power)
Frequency range: 72-14,000 Hz
Sensitivity: 92 dB
| Continuous Power Handling (Rms) – Watts 40 | Frequency Response 1400 hz – 72 kz |
| Maximum Peak Power Handling – Watts 250 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 92 | System-Type Coaxial 2-way, Balanced Dome – Tweeter |

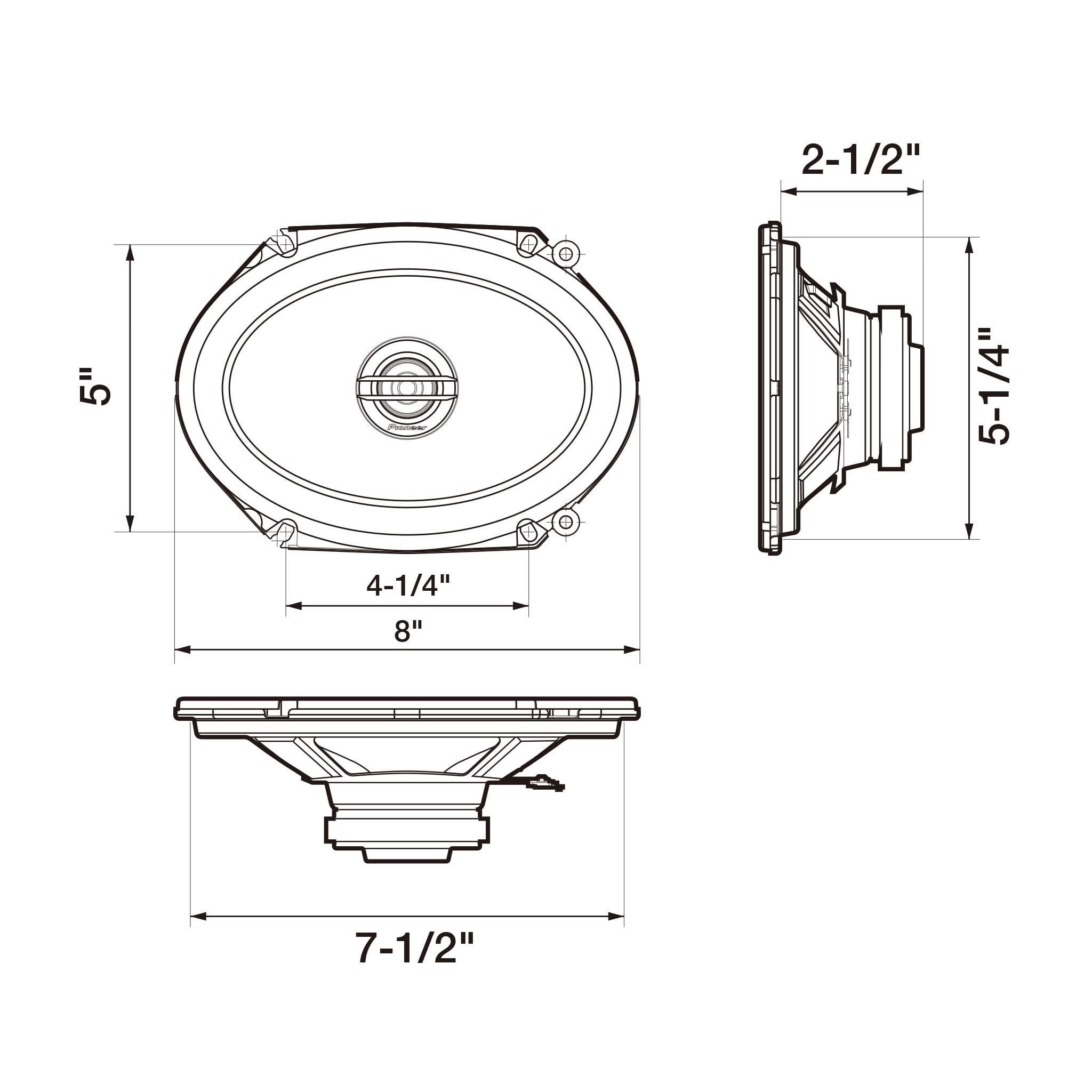

| Cut Out dimensions 7-1/2″ x 5-1/4″ | Mounting Depth 2-1/2″ – Tweeter |
| Tweeter Dimensions 1.18″ | Woofer Dimensions 6″ x 8″ |
| Basket Material Stamped Metal | Cone Material Carbon and Mica reinforced Injected Molded Polypropylene – IMPP |
| Damper Poly cotton | Diaphragm Material Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material Ferrite | Magnet Weight 5.5 oz |
| Shorting Ring Material Copper | Surround Material Rubber Coated Cloth |
| Surround Type rolled | Voice Coil Bobbin Kapton |
| Voice Coil wire Copper | Wire Terminals Lug Type |
