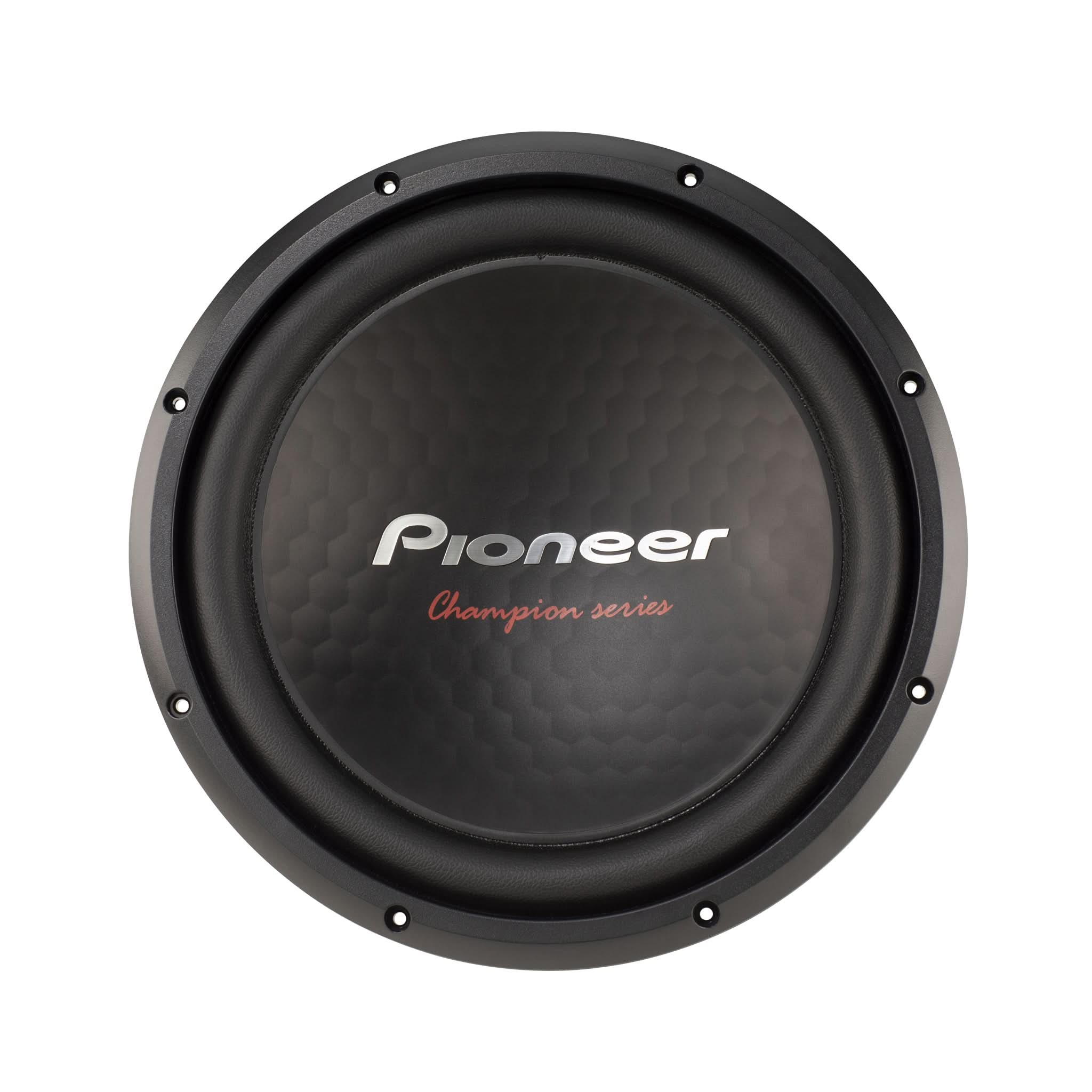

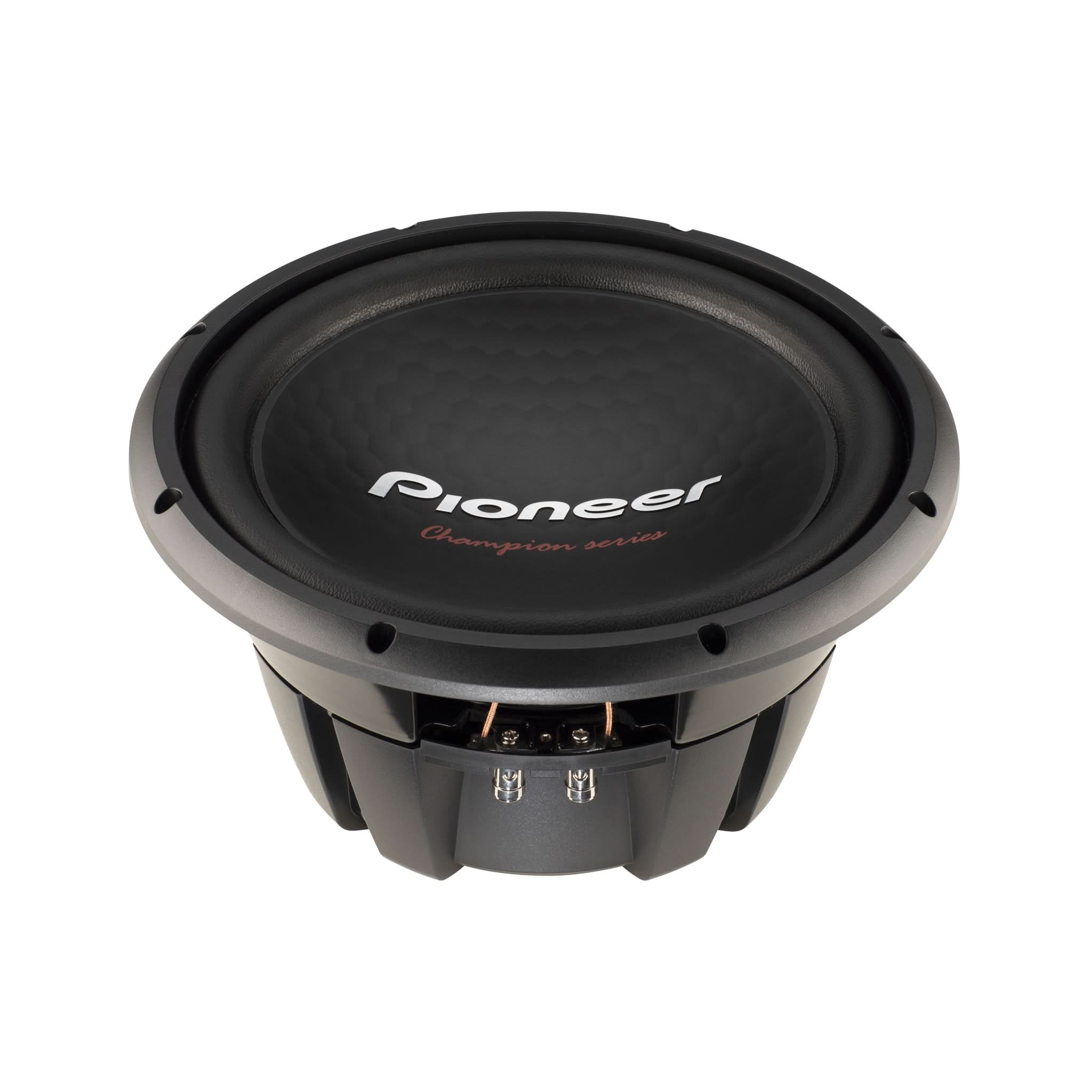

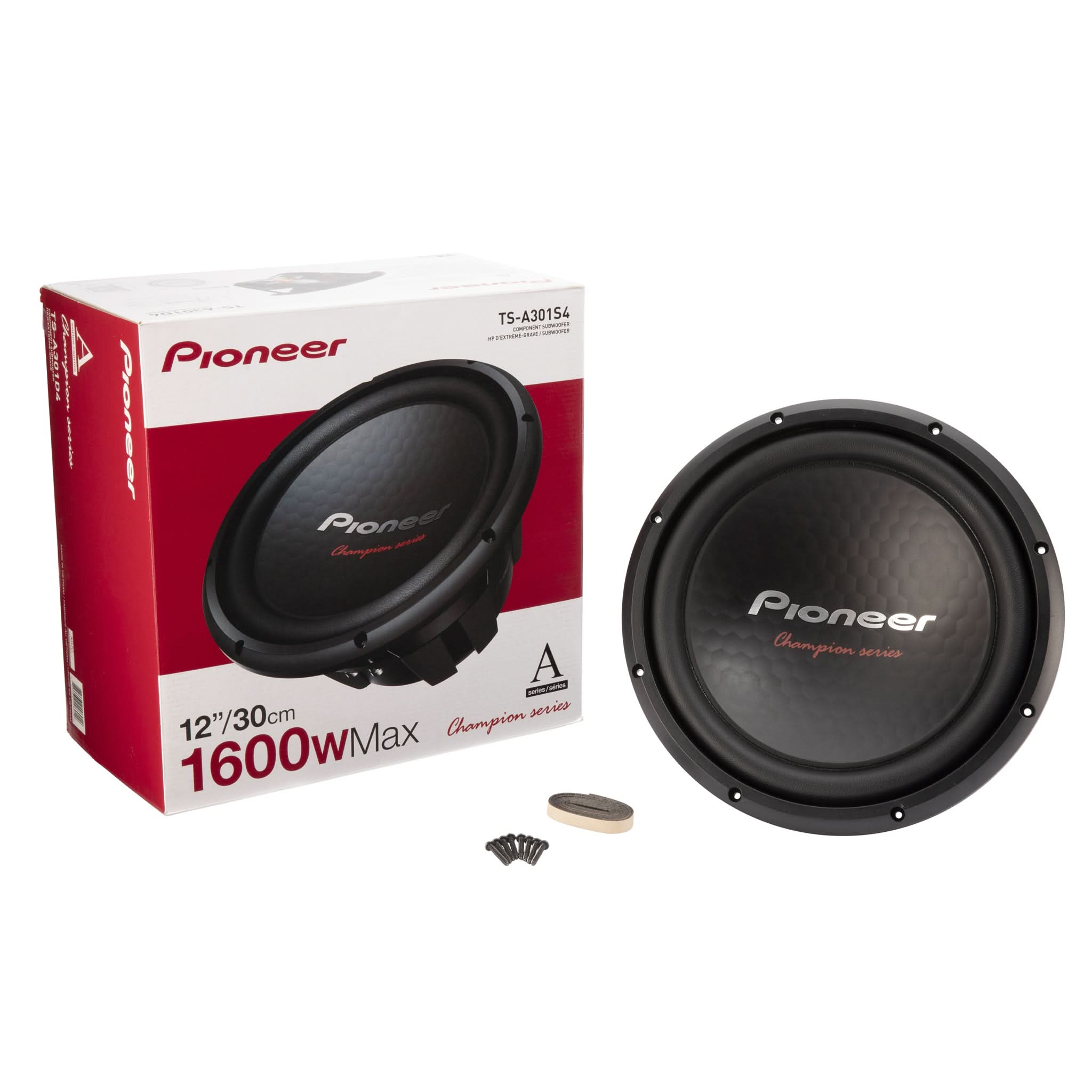

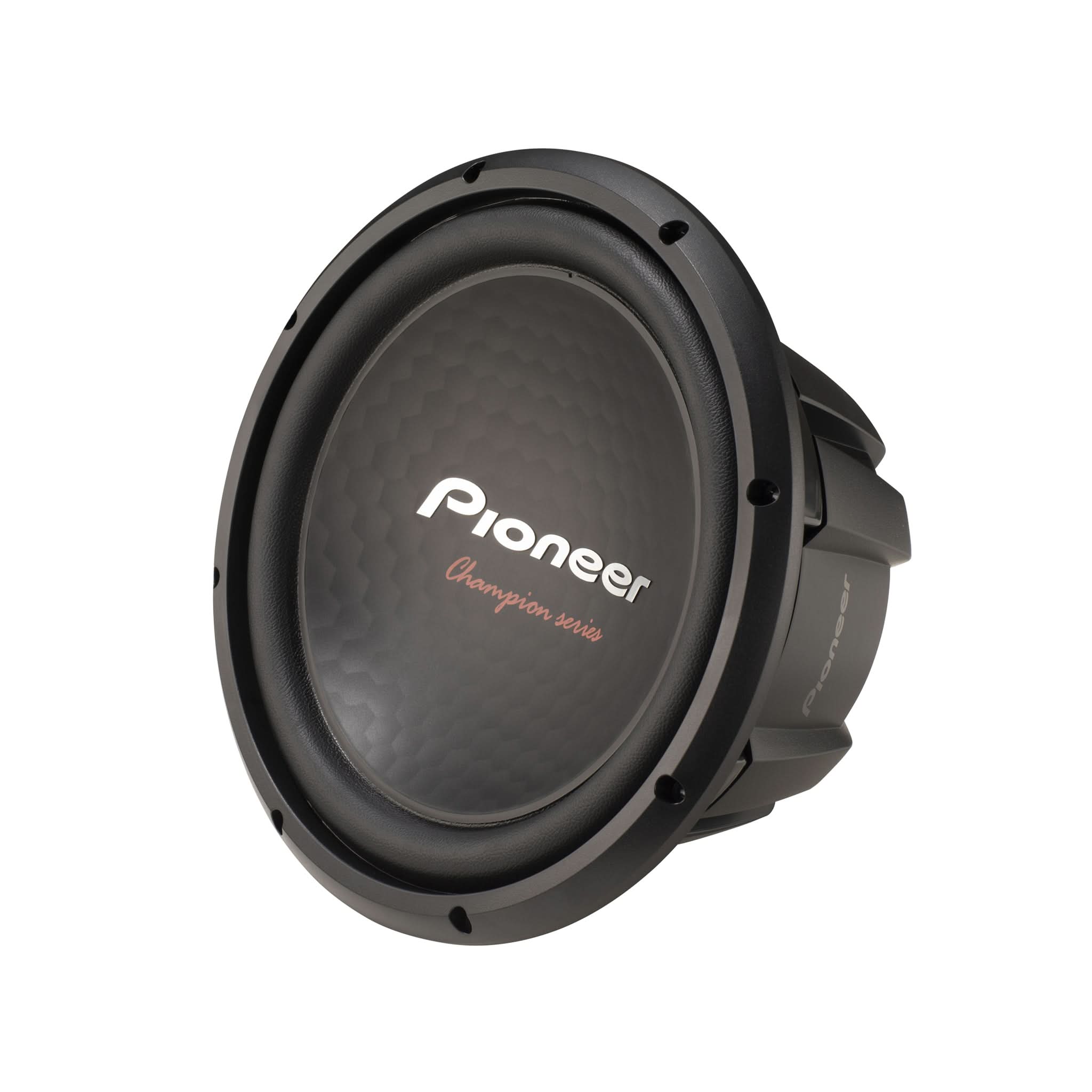

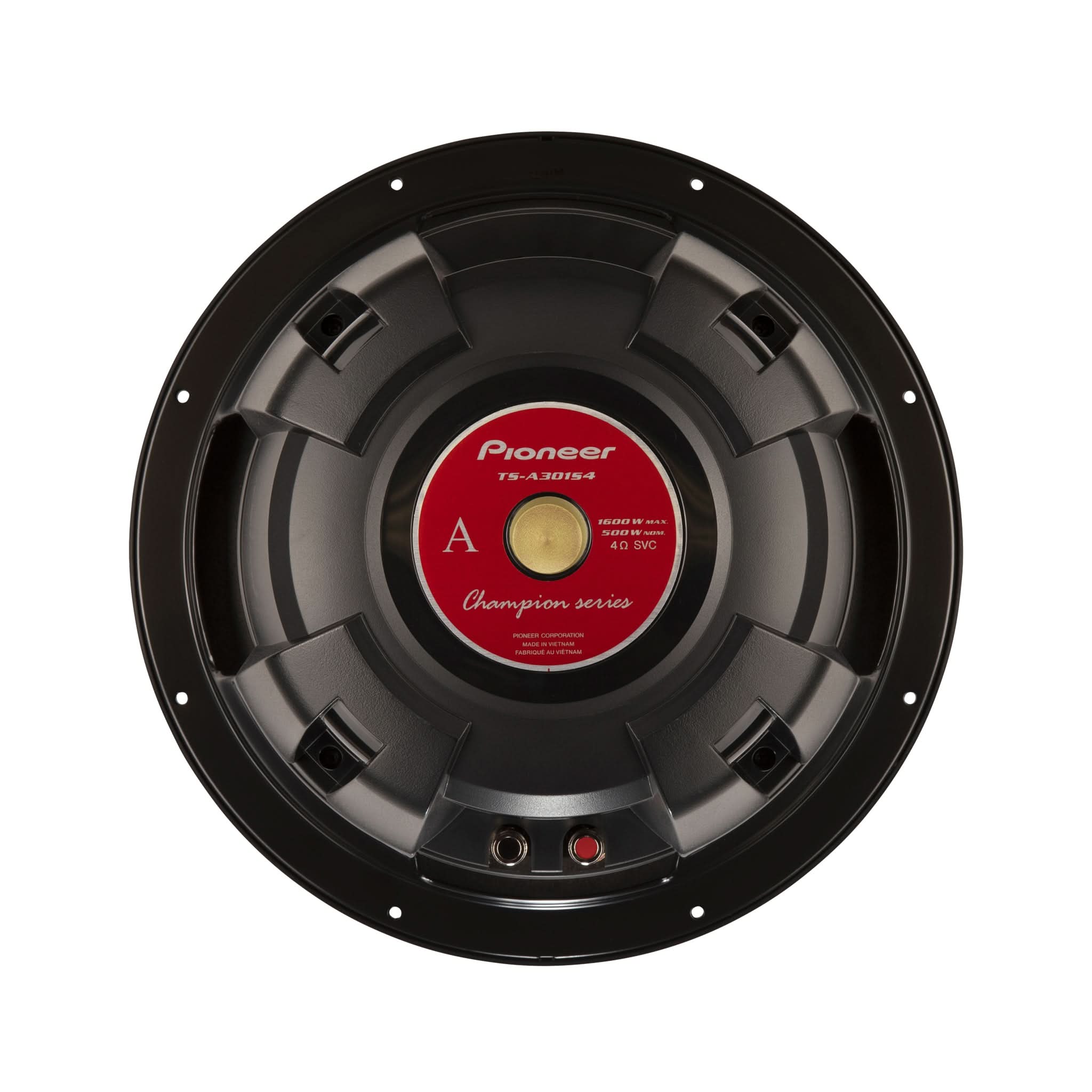

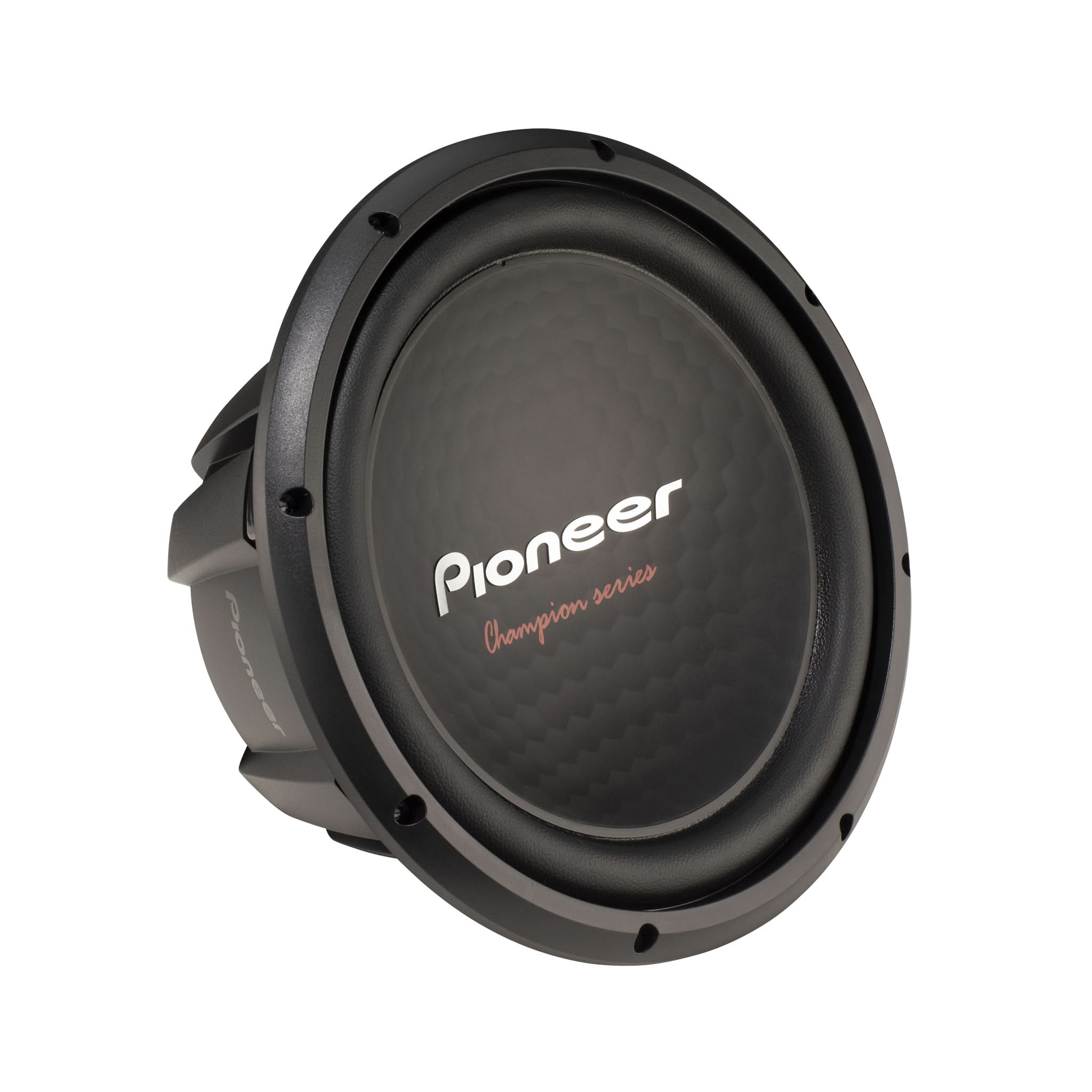

12″ – 1600 W Max Power, 4 Ohm Voice Coil, 2-piece Honeycomb IMPP™ Cone Structure, Champion Series – Subwoofer
Features
1600 Watts Max. Power / 500 Watts Nominal Power
12″ 2-piece Honeycomb IMPP™ Cone Structure
Dual layer fiber reinforced elastic polymer surround
Frequency range: 20 Hz to 1.6 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 92 dB (1W/1M)
Mounting depth: 6.125” (156mm)
Recommended Box volume : 1.5cu.ft (vented)
| Continuous Power handling (RMS) – Watts 500 | Frequency Response 20 Hz to 1.6 kHz |
| Maximum Peak Power Handling – Watts 1600 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1m) 92 dB | System-Type Component |
| CarSoundFit Yes | Cut Out dimensions 11.125″, 28.26 cm |
| Equivalent Compliance (VAS) 34.1 Liters, 1.2 Cu. Ft. | Free Air ResoNAnce (Fs) 38 |
| Linear Excursion (Xmax) 7.7 mm, 5/16″ | Mounting Depth 6.125″ |
| Port Diameter 3″, 7.62 cm | Port Length 6.5″, 16.51 cm |
| Recommended Ported Box Internal volume 42.5 Liters, 1.5 Cu. Ft. | Recommended Sealed Enclosure Volume 1.25 Cu Ft, 35.4 Liters |
| Total Speaker “Q” (Qts) 0.64 | Woofer Dimensions 12″ |
| Basket Material Steel | Center Cap Material Polypropylene |
| Cone Material Carbon and Mica reinforced Injected Molded Polypropylene – IMPP | Damper Poly cotton |
| Drive Cone Material Cellulose Fiber | Installation Ring ABS |
| Magnet Material Ferrite | Magnet Weight 90 oz |
| Surround Material Elastic Polymer, Reinforced Fiber | Surround Type Rolled |
| Voice Coil Bobbin Aluminum | Voice Coil Type Single Voice Coil 4-ohm |
| Voice Coil wire Copper | Wire Terminals Push Type |
