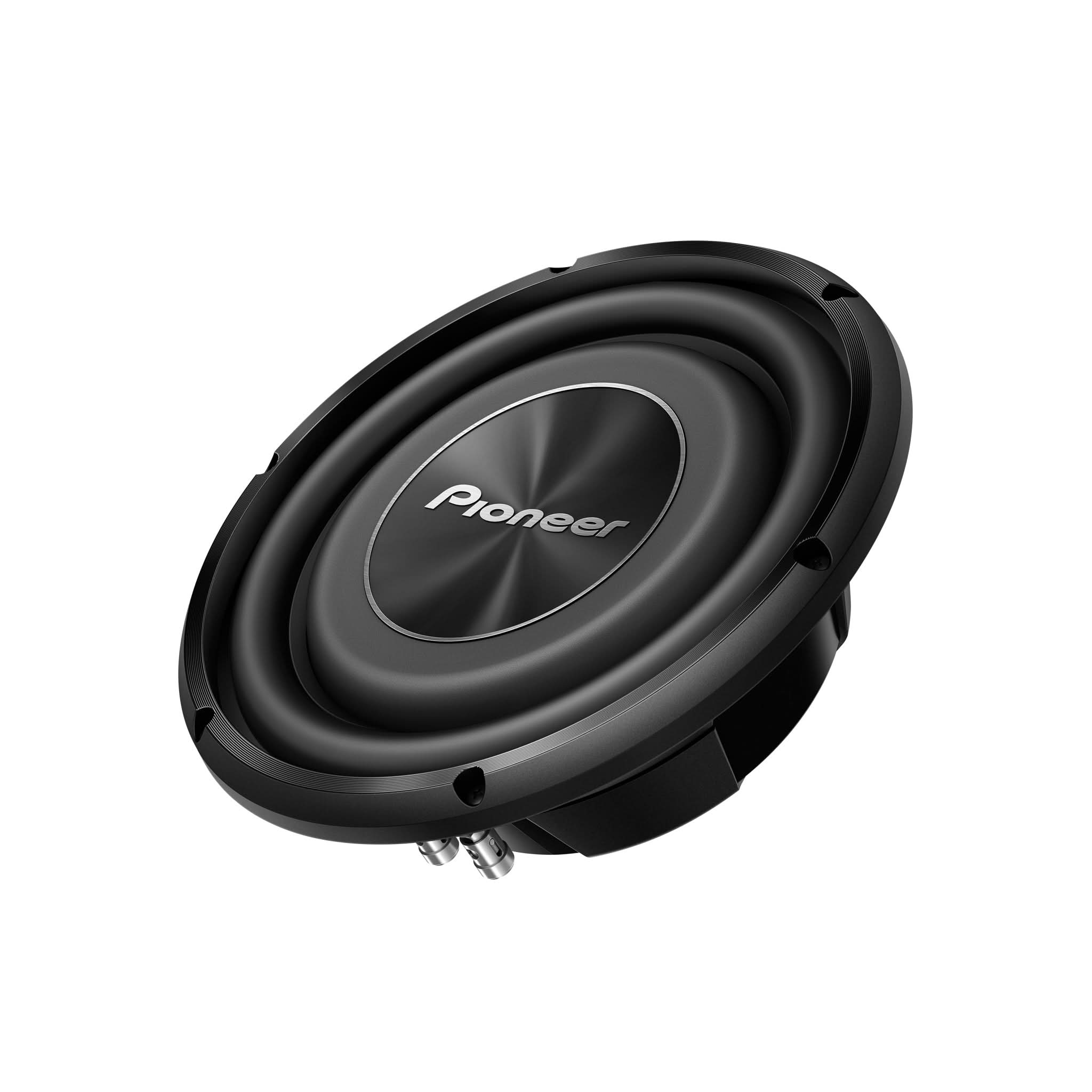

10″ – 1200 W Max power, Glass-fiber & Mica reinforced IMPP™ Cone, Single 4 Ohm Voice Coil – Shallow Mount Subwoofer
Features
1200 Watts Max. Power / 300 Watts Nominal Power
10″ Glass-fiber & Mica reinforced IMPP™ Cone

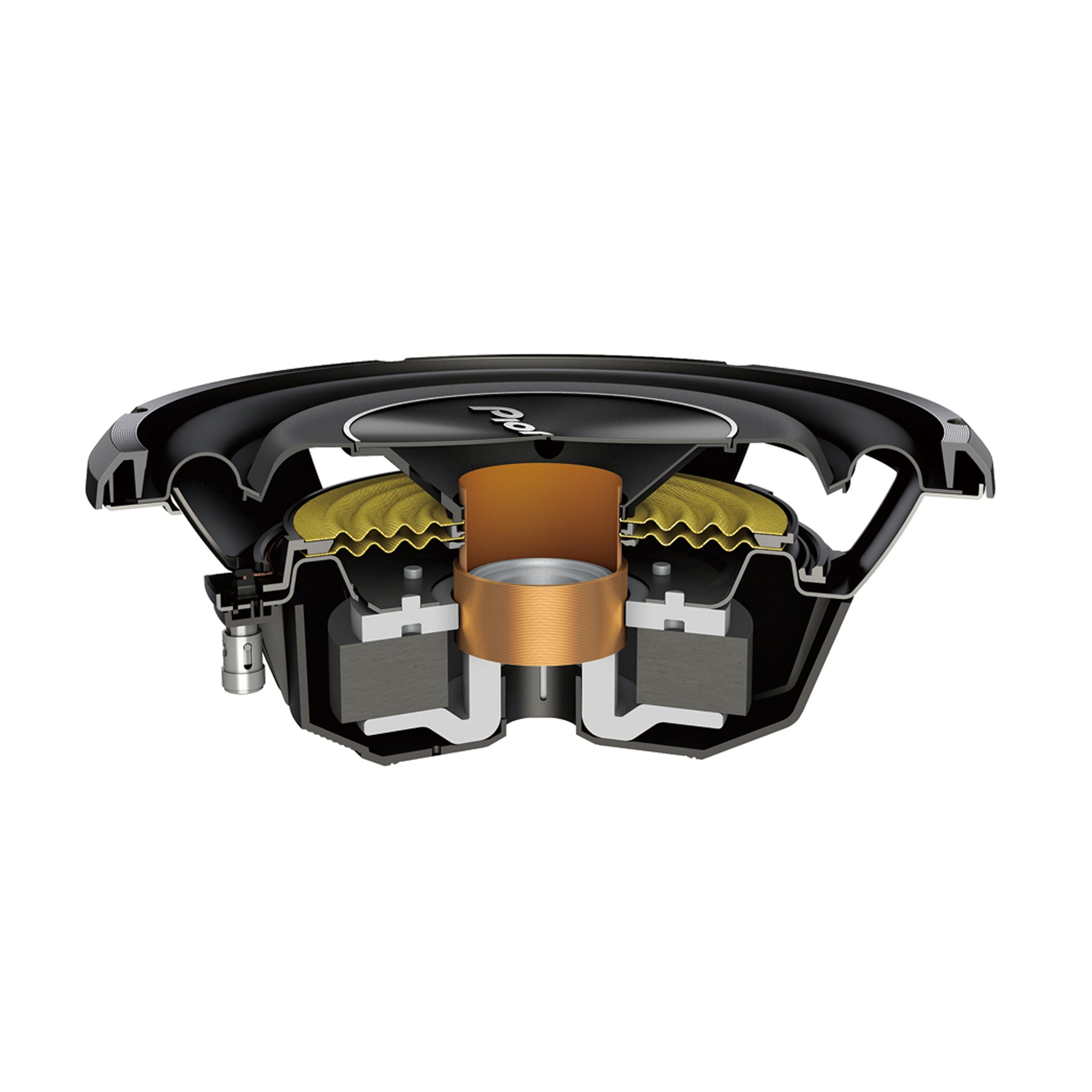

Rubber Surround & Aramid-fiber dual-spider design
Frequency range: 20 Hz to 0.9 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 85 dB (1W/1M)
Mounting depth: 3.375” (86mm)
Recommended Box volume : 0.6cu.ft. (sealed)
| Continuous Power Handling (Rms) – Watts 300 | Frequency Response 20 Hz to 900 Hz |
| Maximum Peak Power Handling – Watts 1200 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 85dB | System-Type Component |
| CarSoundFit Yes | Cut Out dimensions 9″, 22.86cm |
| Equivalent Compliance (VAS) 17.9 Liters, 0.63 Cu. Ft | Free Air ResoNAnce (Fs) 38 |
| Linear Excursion (Xmax) 8.3, 0.33″ | Mounting Depth 3-3/8″ |
| Port Diameter 7.62cm, 3″ | Port Length 7-1/2″, 19.05cm |
| Recommended Ported Box Internal volume 17 Liters, 0.6 Cu. Ft. | Recommended Sealed Enclosure Volume 0.6 Cu Ft, 17 Liters |
| Subwoofer Grille UD-10GL Sold Separately | Total Speaker “Q” (Qts) 0.83 |
| Woofer Dimensions 10″ |

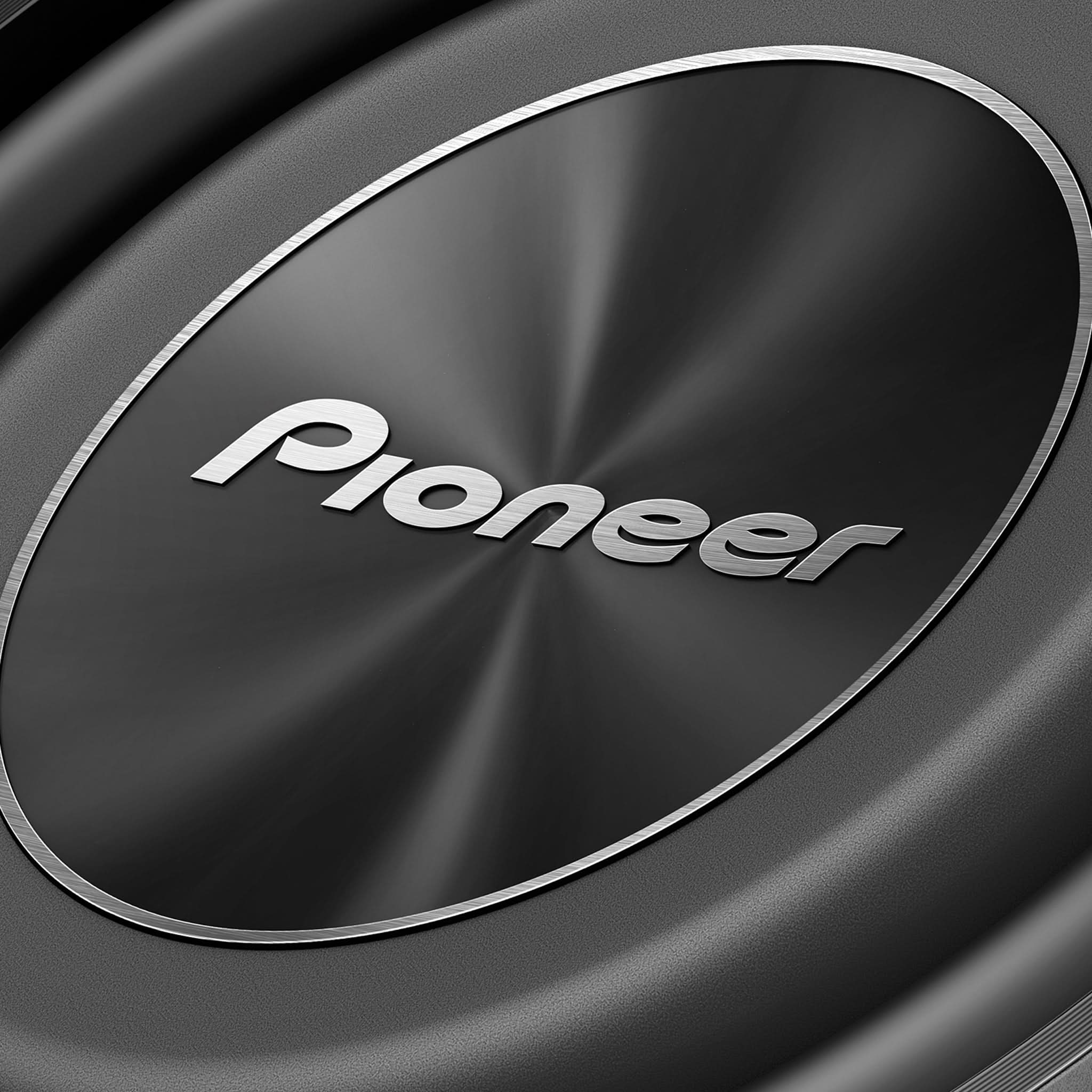

| Basket Material Stamped Metal | Center Cap Material ABS |
| Cone Material IMPP – Composite | Damper Poly cotton |
| Gasket Polypropylene | Installation Ring Polypropylene |
| Magnet Material Ferrite | Magnet Weight 43.4 oz |
| Surround Material Rubber | Surround Type Rolled |
| Voice Coil Bobbin Kapton | Voice Coil Type Single Voice Coil |

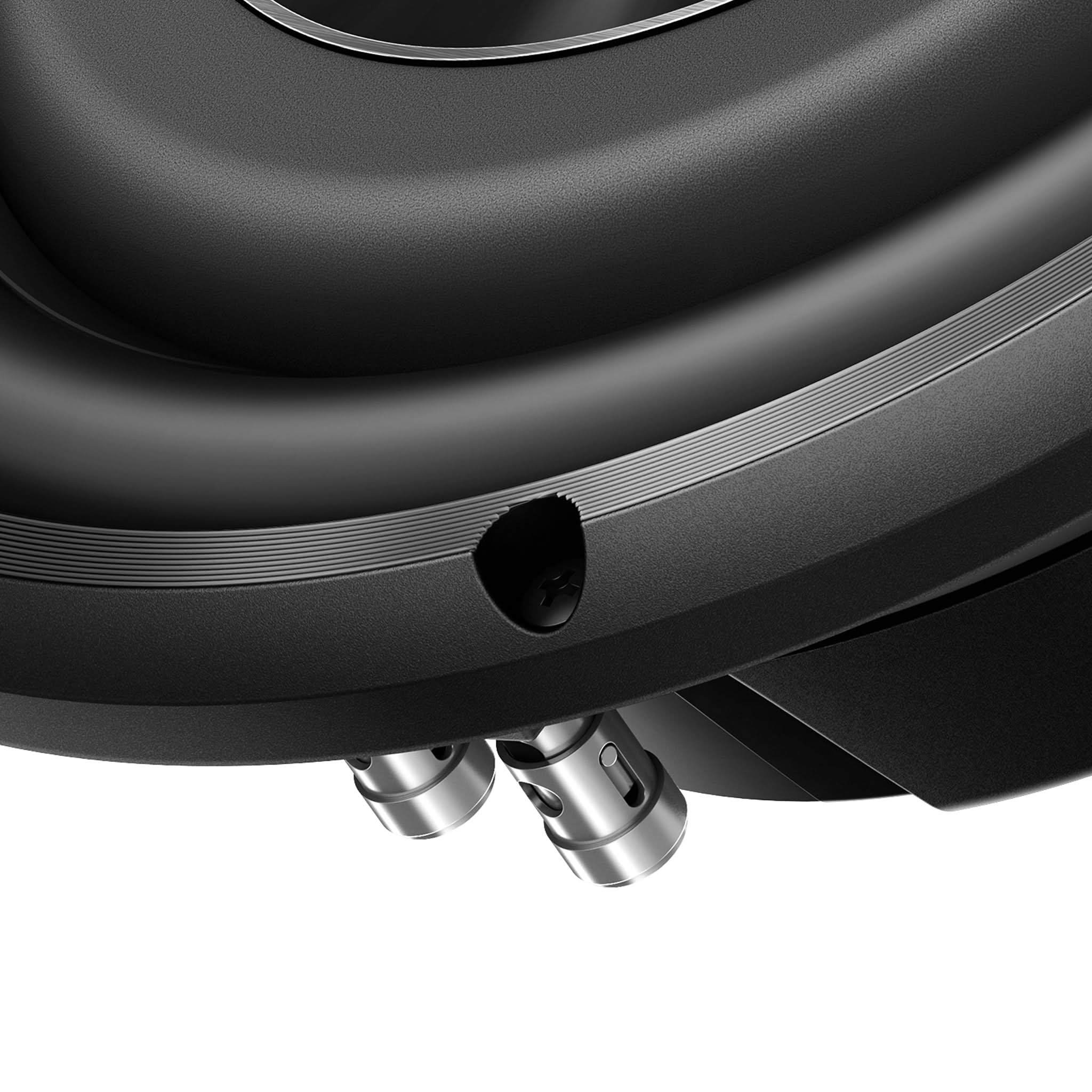

| Voice Coil wire Copper | Wire Terminals Push Type |
