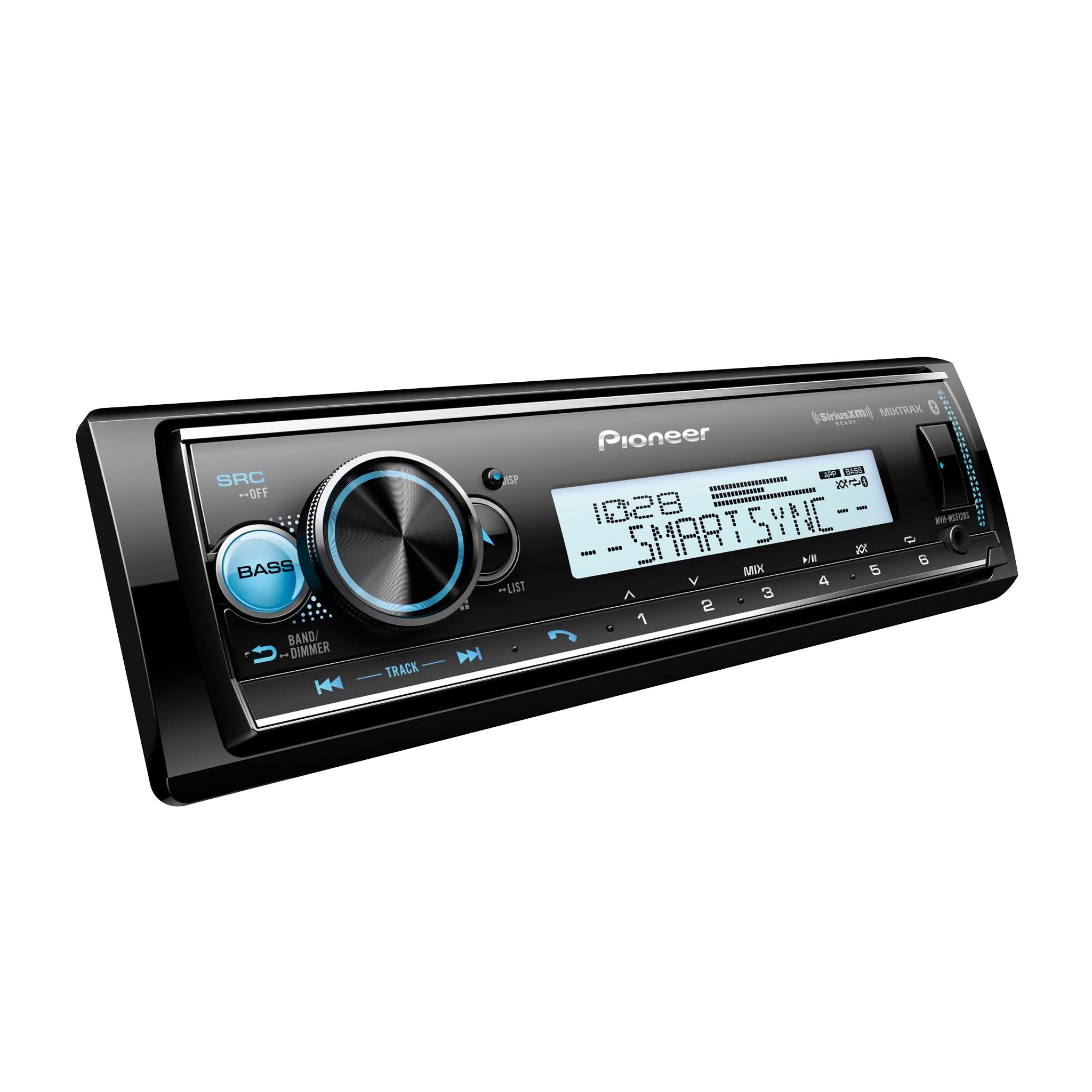

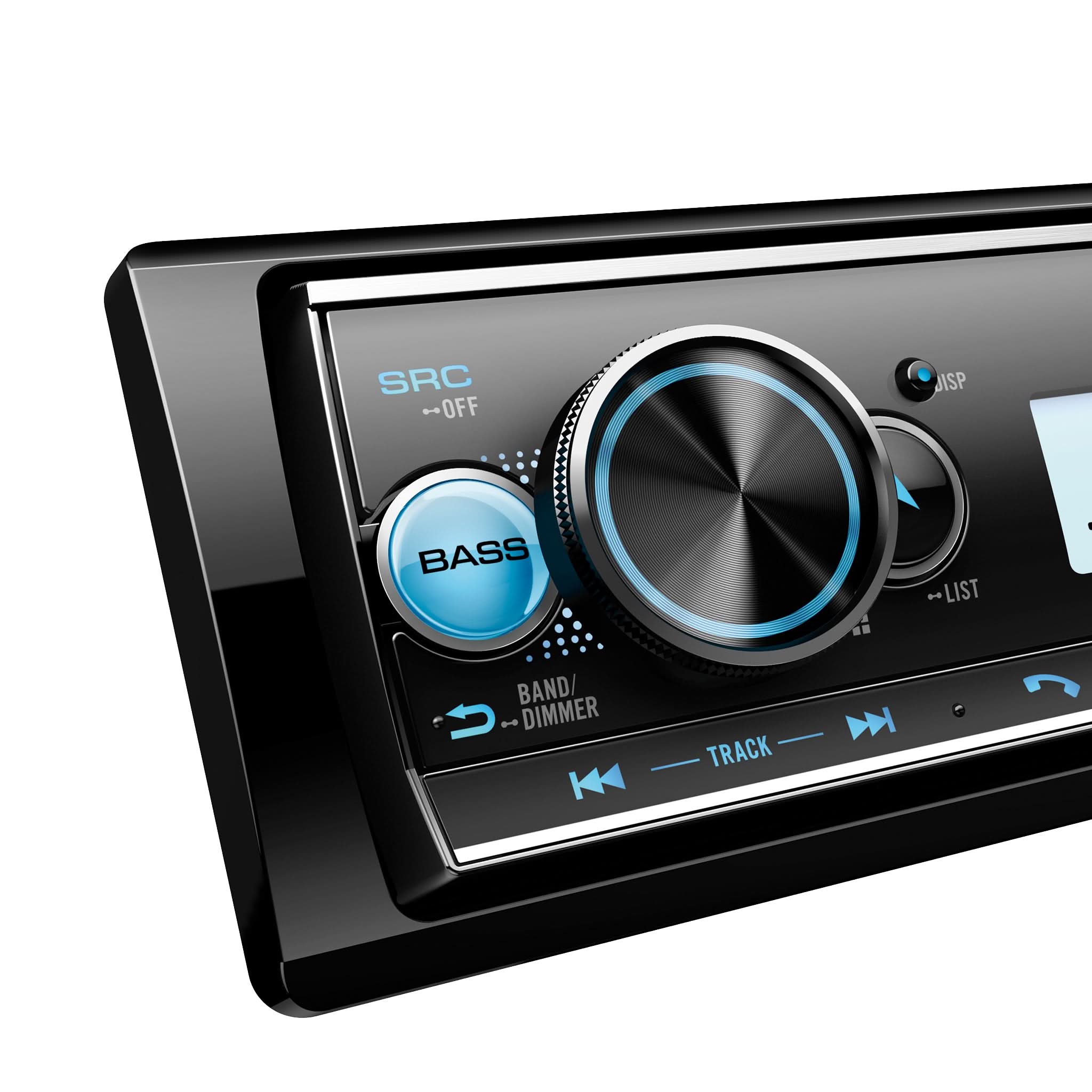

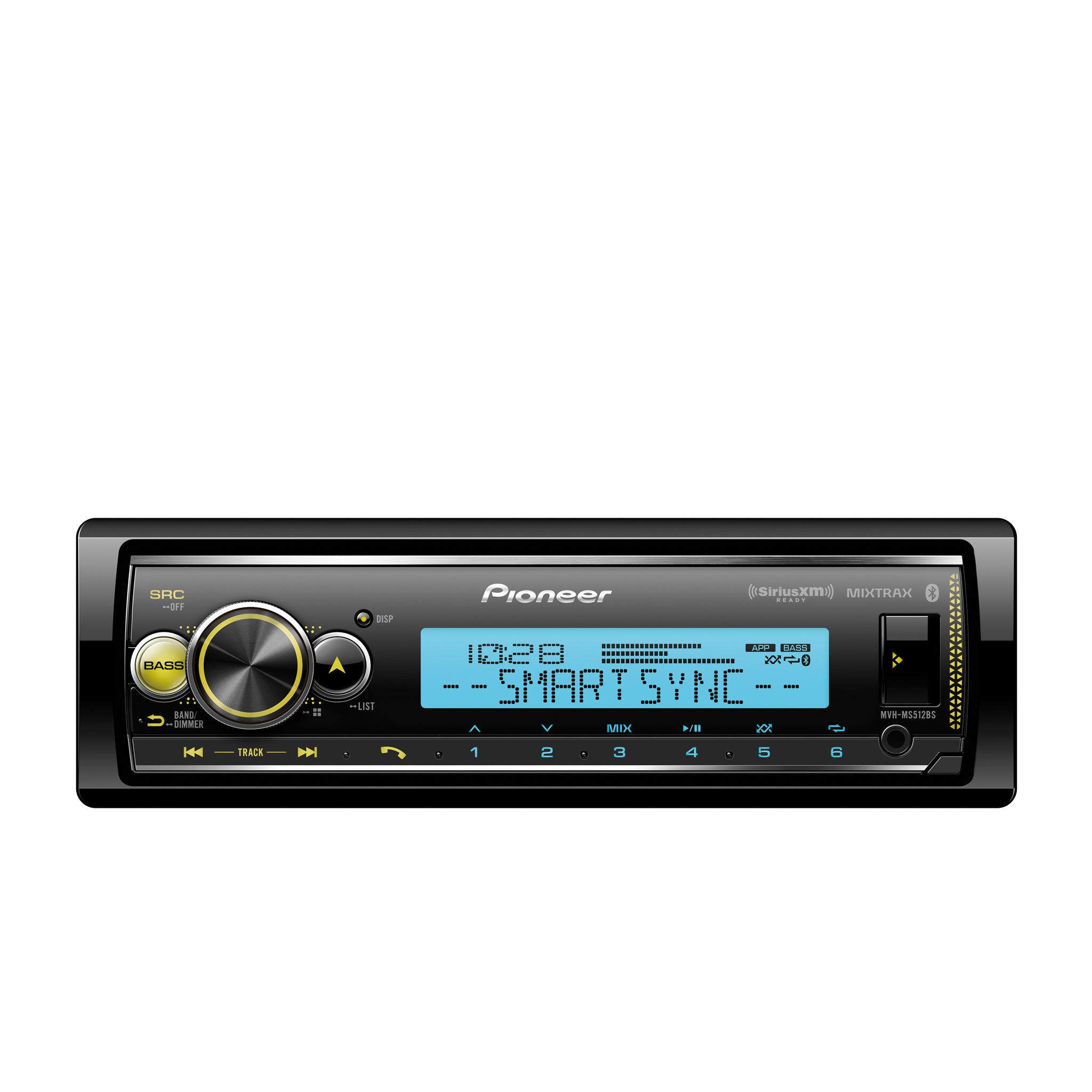

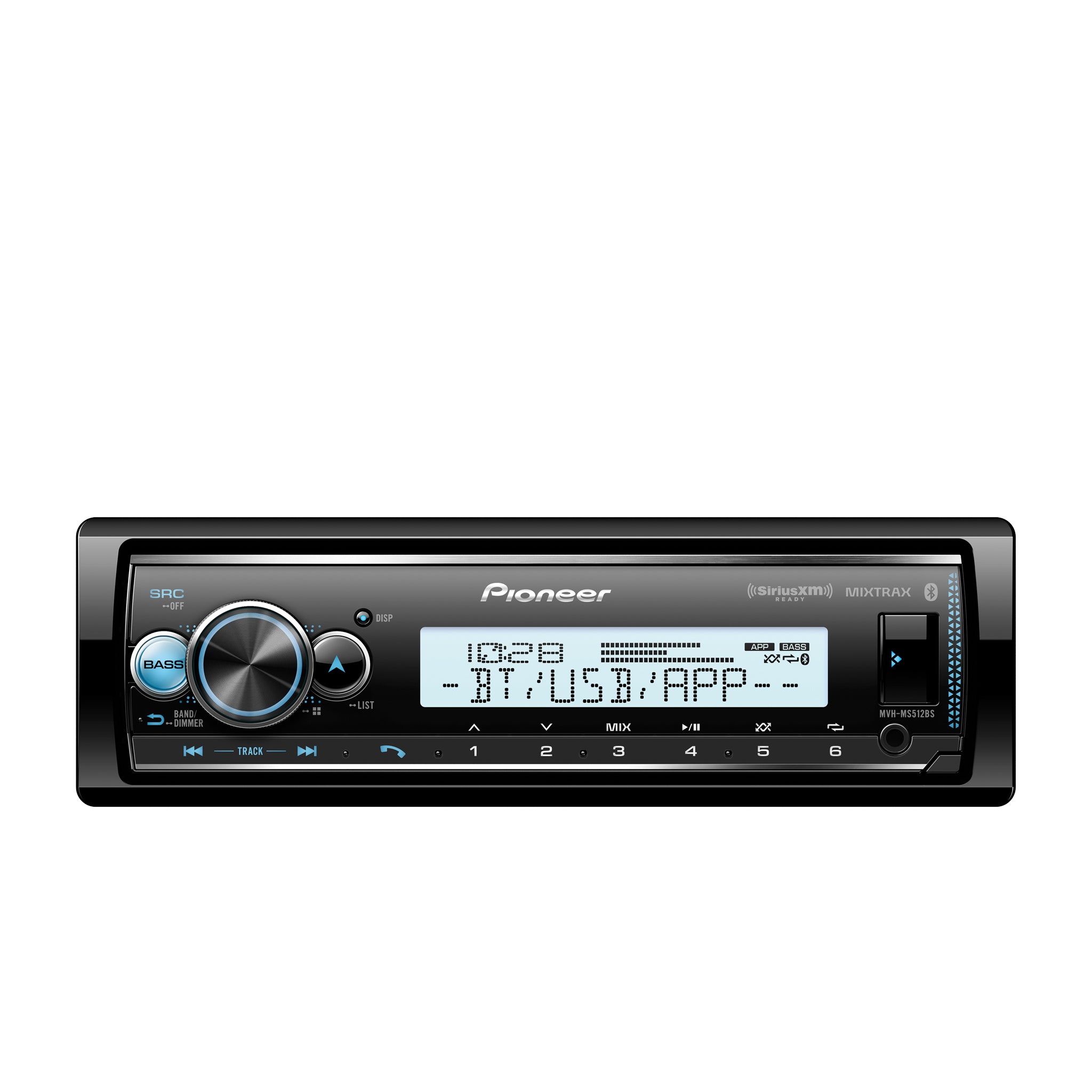

Marine Audio media receiver with advanced audio features, enhanced Pioneer Smart Sync compatibility, MIXTRAX®, built-in Bluetooth® and SiriusXM-Ready™
Features
Alexa Built-in When Paired with Pioneer Smart Sync App
iPhone® Compatibility
Android™ Compatibility
SiriusXM-Ready™
Built-in Bluetooth®
3 pairs of Hi-Volts Preouts
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm , 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
Rca Preamp Outputs 6-ch |
| Rca Preout Voltage 4V |
Rms Power Output (Cta-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Full |
Multi-Language Display English, French, Spanish |
| Music Browser USB |
Remote Control Optional |
| Rotary Volume Control Yes |
Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 210000 Colors, dual zone |
Device Display VA LCD (2-Line) |
| Device (Non-DIN/Modular Unit) 1-DIN |
Dimmer Automatic with vehicle illumination, Timer Controlled, Manual |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Dual Phone Connection Yes |
| Hands-Free Yes |
Microphone Included Included |
| Phone Registation 5-phone |
Secure Simple Pairing (SSP) Yes |
| Serial Port Profile (SPP) Yes |
Sound Retriever Air Mode 1/Mode 2/Off |
TUNER
| Best Station Memory Yes |
Local Seek tuning Yes |
| Presets 18 FM, 6 AM |
RDS Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) Yes |
INTEGRATION
| Amazon Alexa Paired with Pioneer Smart Sync |
Mobile Operating System Android, Apple iOS |
| Music Playback (MTP) Yes |
Pandora® Source through iPhone/Android |
| Pioneer App Compatibility Pioneer Smart Sync Android, Pioneer Smart Sync iPhone |
Siri® Eyes Free (VR) (Internet Required) iPhone Only |
| Spotify Streaming audio through iPhone/Android via Bluetooth or AUX input |
Voice Control Yes |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB MP3 Audio Playback, WMA Audio Playback, AAC Audio Playback, FLAC Audio Playback (Hi-Res), WAV Audio Playback (Hi-Res) |
AUDIO
| Advanced Sound Retriever Mode-1/Mode-2/Off |
Balance Yes |
| Built-in Amplifier MOSFET 50 W x 4 |
Crossover Network Mode HPF/Band Pass/LPF |
| Crossover Standard Mode HPF/LPF |
Customizable Graphic Equalizer 13 Band, 31 Band with Pioneer Smart Sync app |
| DA Converter 24 Bit |
Digital Signal Processor Built In |
| Dynamic Bass Enhancer Off/Low/High |
Easy EQ (EEQ) Preset Equalizer Yes |
| Listening Position Selector Yes |
Loudness High/Mid/Low/Off |
| MIXTRAX® Yes |
Source Level Adjuster Yes |
| Speaker Output 4-ch |
Spectrum Analyzer Yes |
| Subwoofer Control Yes |
Time Alignment Manual |
EXPANDABILITY
| Audio Video Inputs Input 2 – AUX (Minijack) |
Firmware upgradability Yes |
| USB Front Type-A (5V, 1-1/2 A) |
USB Direct Control for iPhone® 5s and newer |
