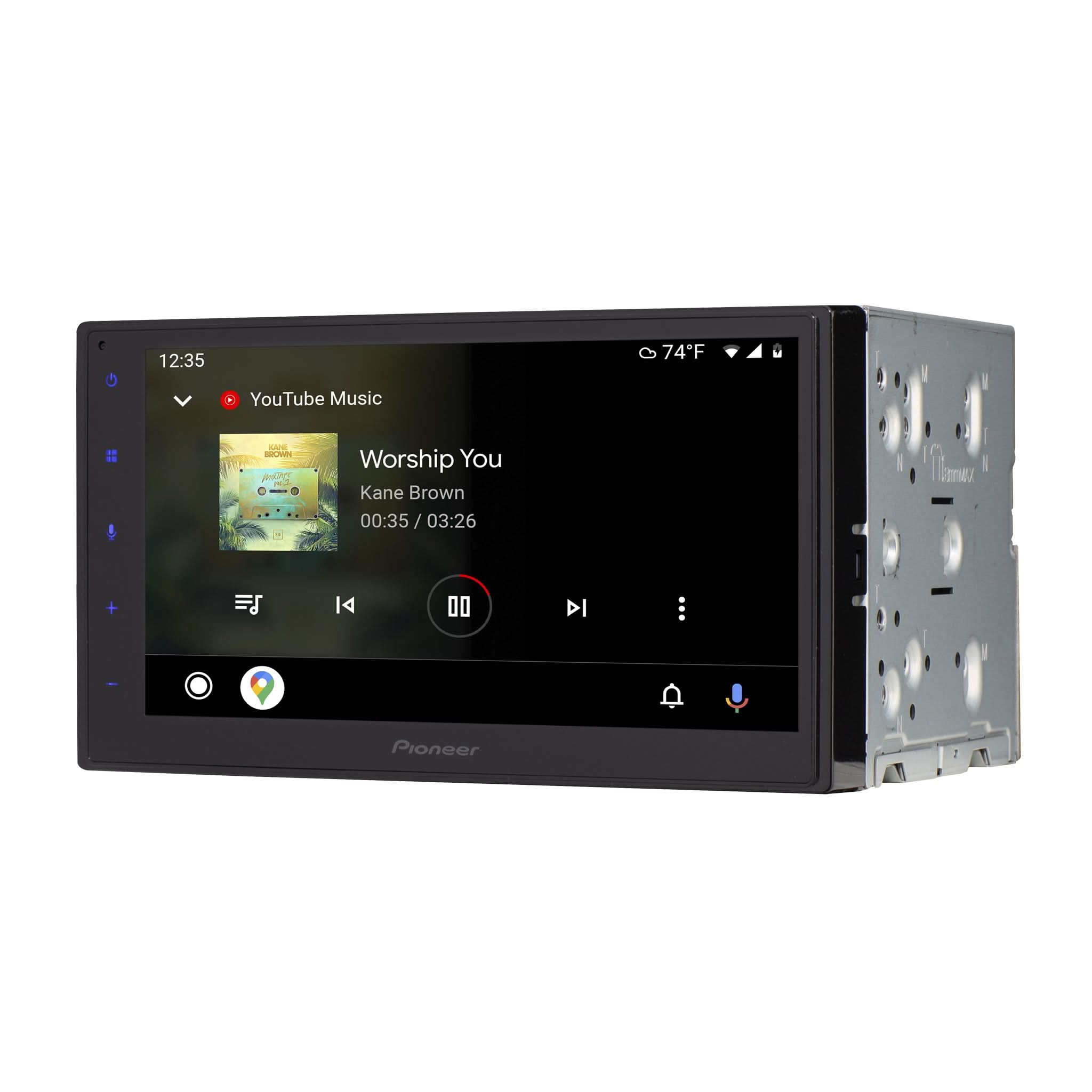

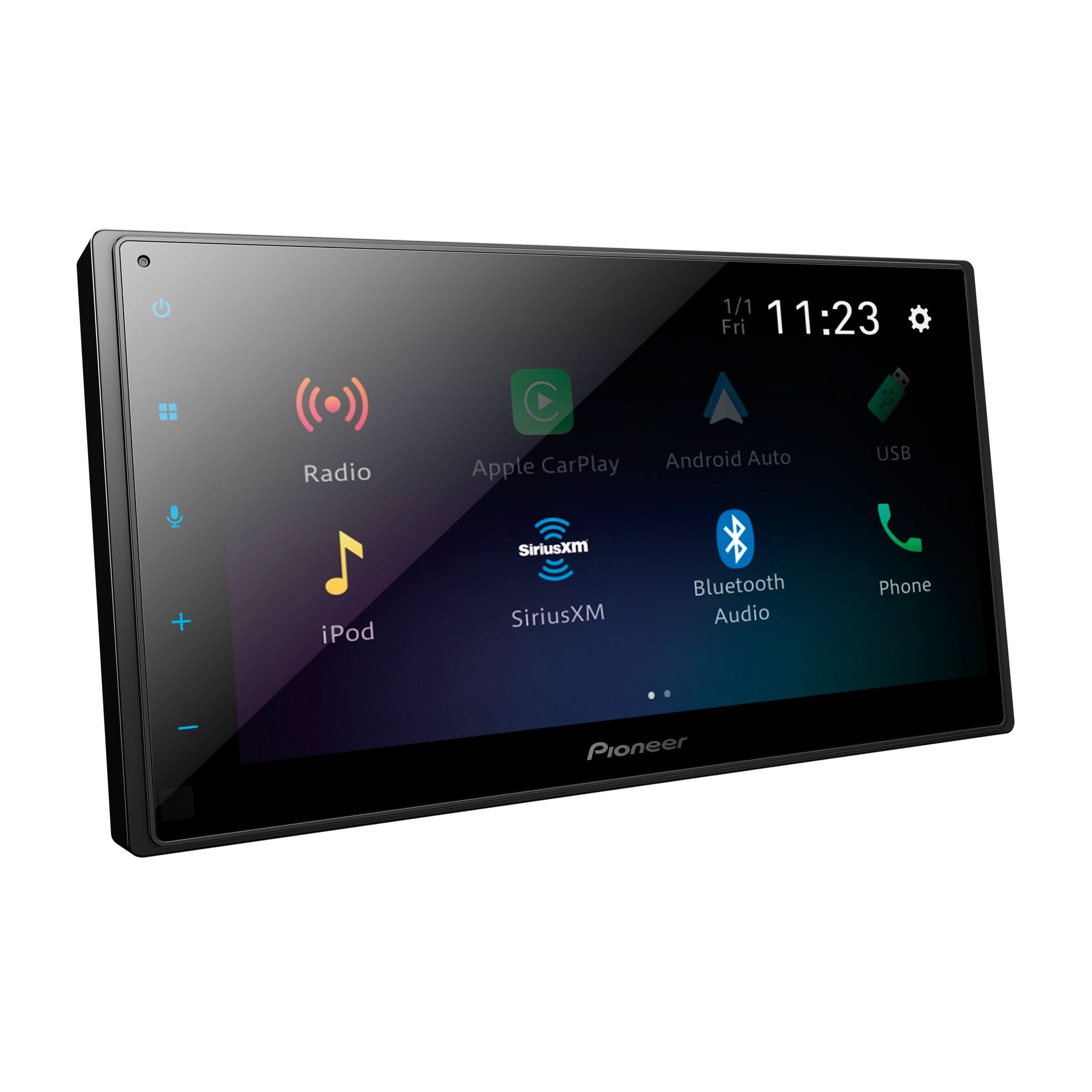

6.8″ – Bluetooth®, Android Auto™, Apple CarPlay®, iPod® Interface – Multimedia Digital Media Receiver
Features
6.8″ WVGA (Capacitive Touch)

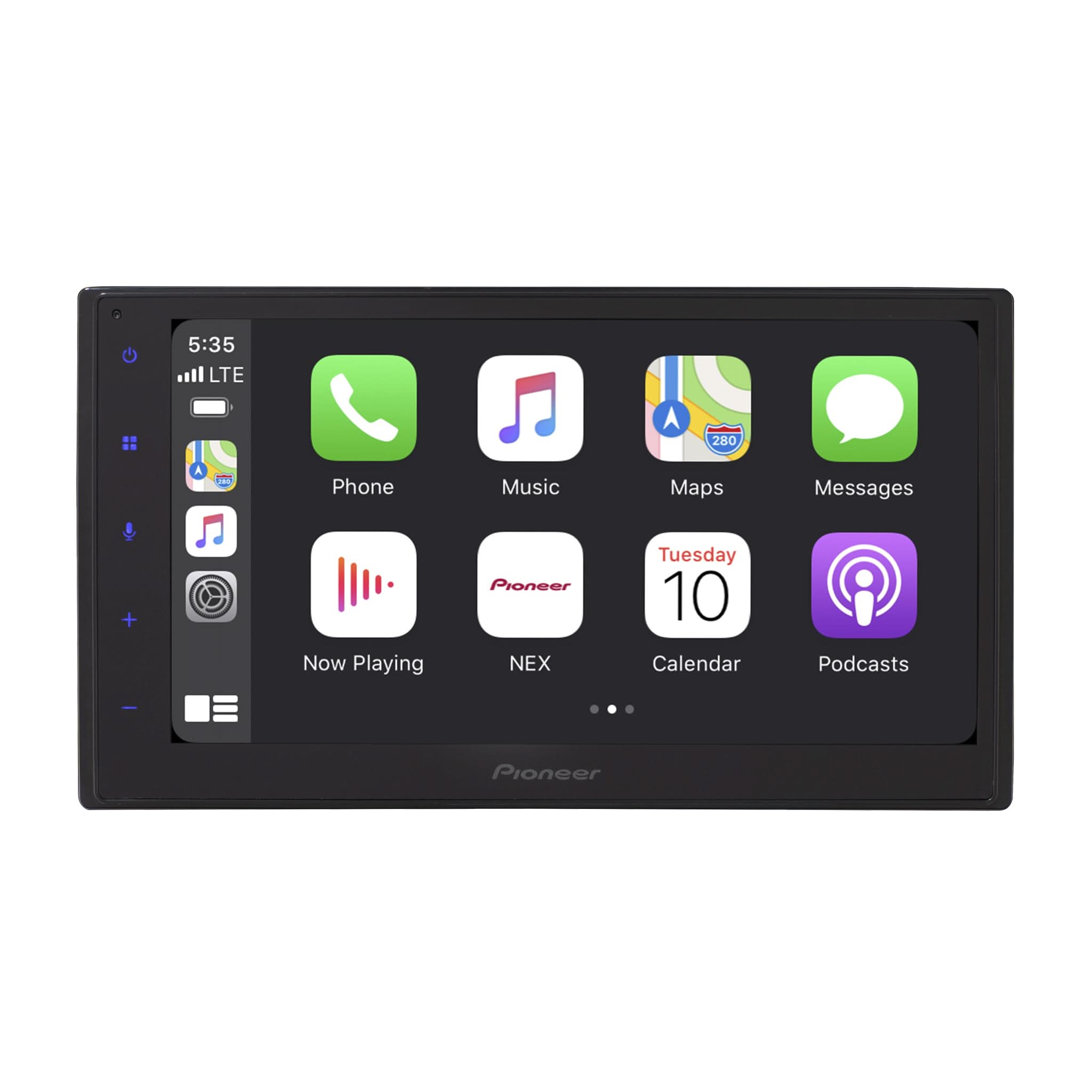

Apple CarPlay® Compatible
Android Auto™ Compatible
SiriusXM-Ready™
Built-in Bluetooth®
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm |
RCA Preamp Outputs 6-ch |
| RCA Preout Voltage 2V |
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Fixed |
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified) |
| Music Browser USB |
Remote Control Optional |
| Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 key colors |
Device (Non-DIN/Modular Unit) 2-DIN |
| Dimmer Automatic with vehicle illumination, Timer Controlled, Manual |
Display Off Mode Yes |
| Home Screen Customization Yes |
Monitor Mechanism Fixed |
| Resolution WVGA (800 x 480) |
Screen Size/Aspect Ratio 6.8″/16:9 |
| Touch Screen Capacitive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Hands-Free true |
| Microphone Included Included |
Phone Registation 1-phone |
| Secure Simple Pairing (SSP) Yes |
Serial Port Profile (SPP) Yes |
TUNER
| Best Station Memory Yes |
Local Seek tuning Yes |
| Presets 18 FM 12 AM |
RDS Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) Yes |
INTEGRATION
| Android Auto™ Wired USB Connection |
Apple® CarPlay Wired USB Connection |
| Mirroring USB-Android Phone Only |
Mobile Operating System Android,Apple iOS |
| Pandora® With Apple CarPlay or Android Auto |
Siri® Eyes Free (VR) (Internet Required) iPhone Only |
| Spotify With Apple CarPlay or Android Auto |
Voice Control Yes |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback,WAV Audio Playback (Hi-Res),FLAC Audio Playback (Hi-Res) |
Audio Video Playback via USB .avi,.mpg/mpeg,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts,.m2ts,.mts |
| Image Display Via USB BMP,JPEG,PNG |
AUDIO
| Audio Bass Boost Yes |
Balance Yes |
| Built-in Amplifier MOSFET 50 W x 4 |
Crossover Standard Mode HPF/LPF |
| Customizable Graphic Equalizer 13 Band |
DA Converter 24 Bit |
| Digital Signal Processor Built In |
Easy EQ (EEQ) Preset Equalizer Yes |
| Loudness High/Mid/Low/Off |
Speaker Output 4-ch |
| Subwoofer Control Yes |
EXPANDABILITY
| Audio Video Inputs Input 1 – Backup Camera Dedicated,Input 2 – AUX (Minijack) |
Firmware upgradability Yes |
| Parking Assist Lines Yes |
RCA-Video-Output Yes |
| USB Single Rear Type-A (5 V, 1.5 A) |
USB Direct Control for iPhone® 5s and newer |
