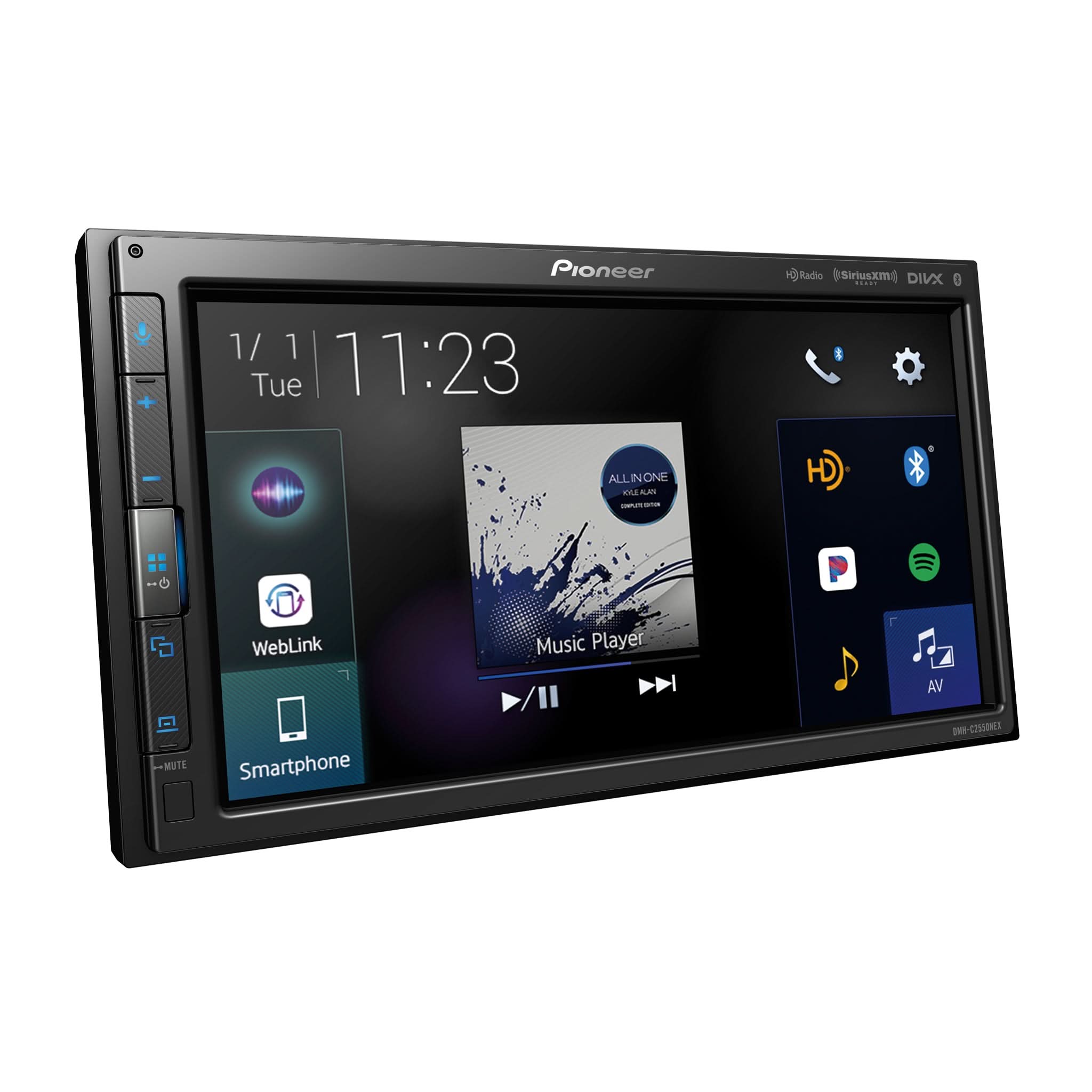

6.8″ Modular – Apple CarPlay®, Android Auto™, Amazon Alexa via Pioneer Vozsis, Bluetooth® – Multimedia Digital Media Receiver.
Features
Modular Chassis with 6.8″ WXGA capacitive display

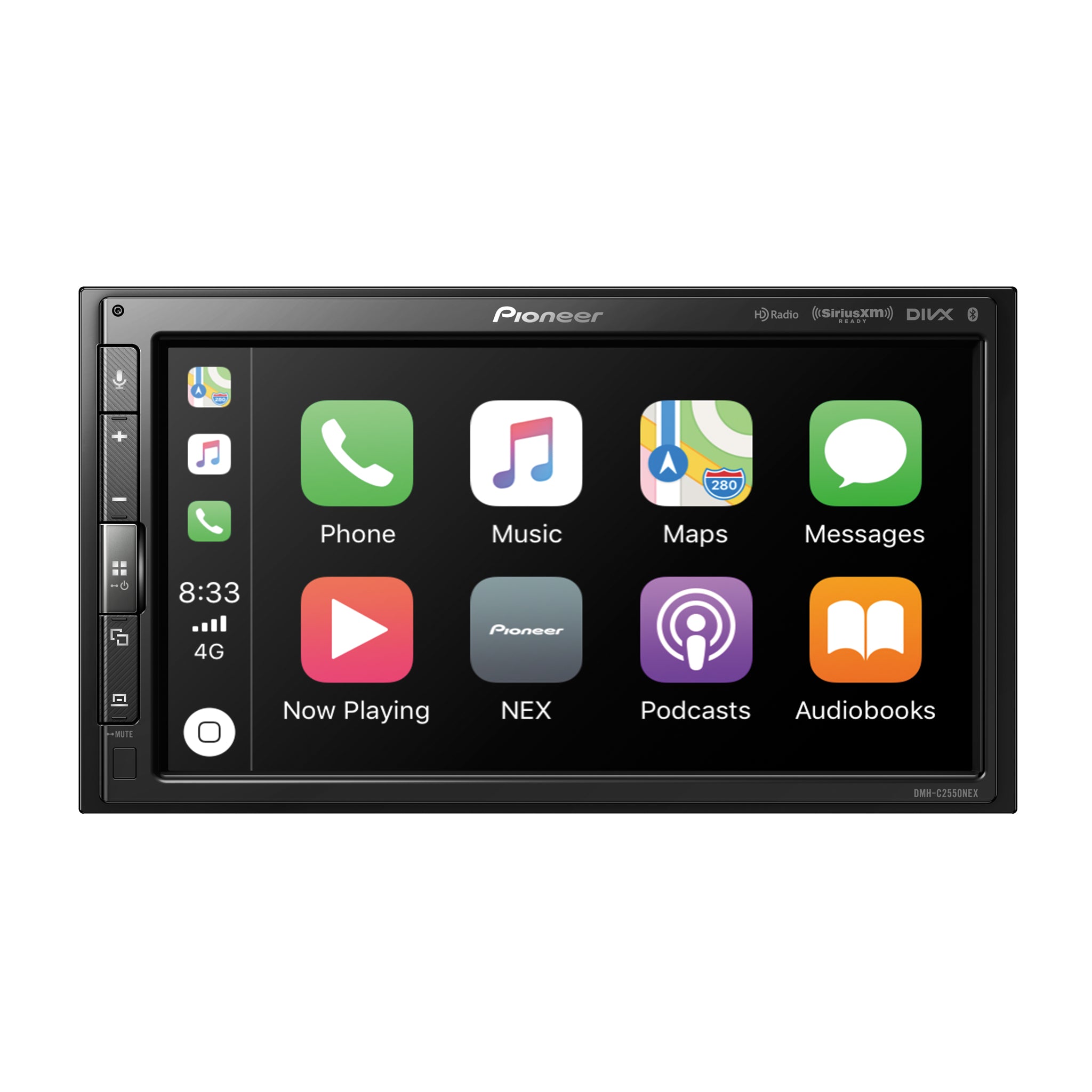

Apple CarPlay® (Wired)

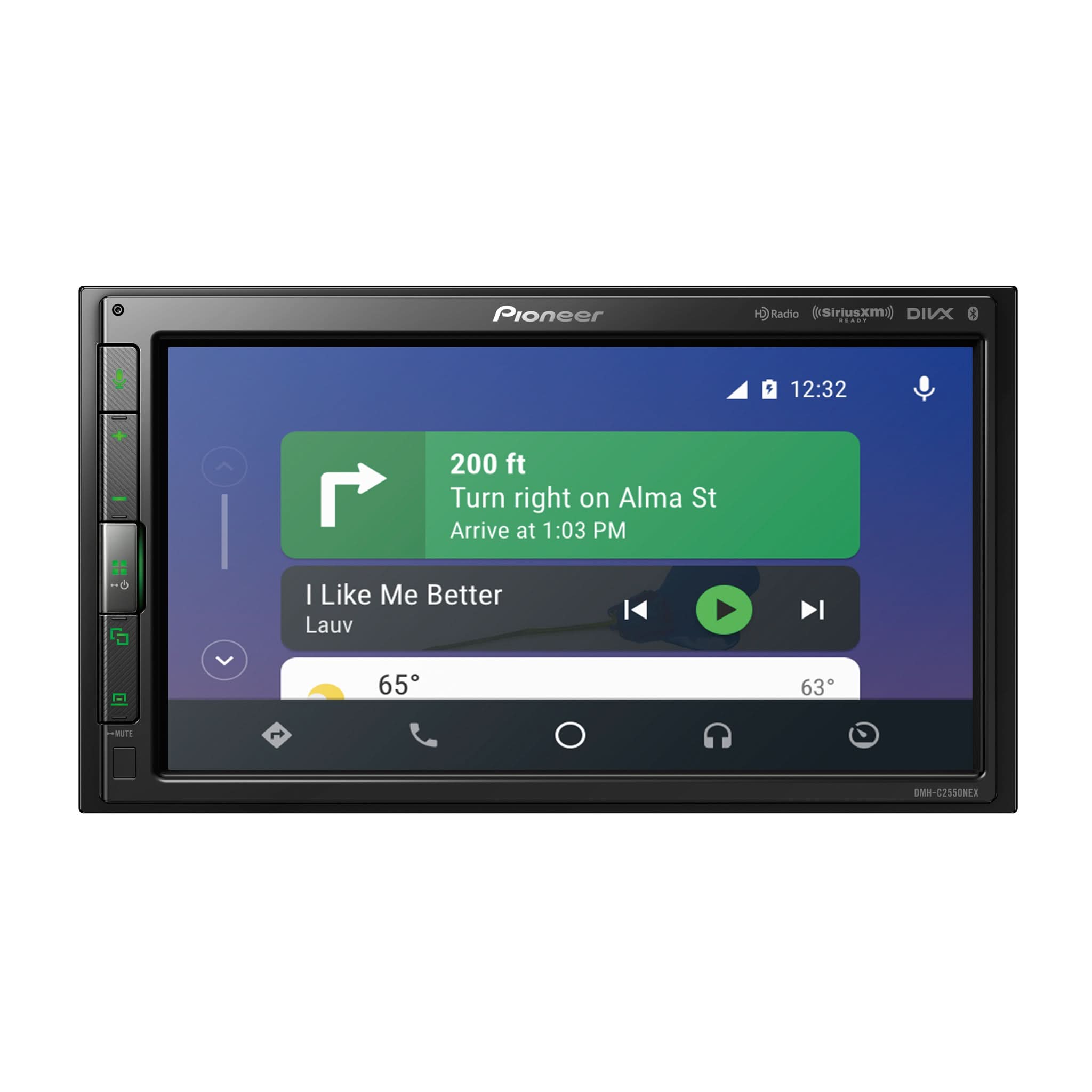

Android Auto™ (Wired)
Pioneer Vozsis with Alexa app.
HD Radio™ and SiriusXM-Ready™
iDatalink® Maestro™ compatible
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
RCA Preamp Outputs 6-ch |
| RCA Preout Voltage 4V |
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Fixed |
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified) |
| Music Browser USB |

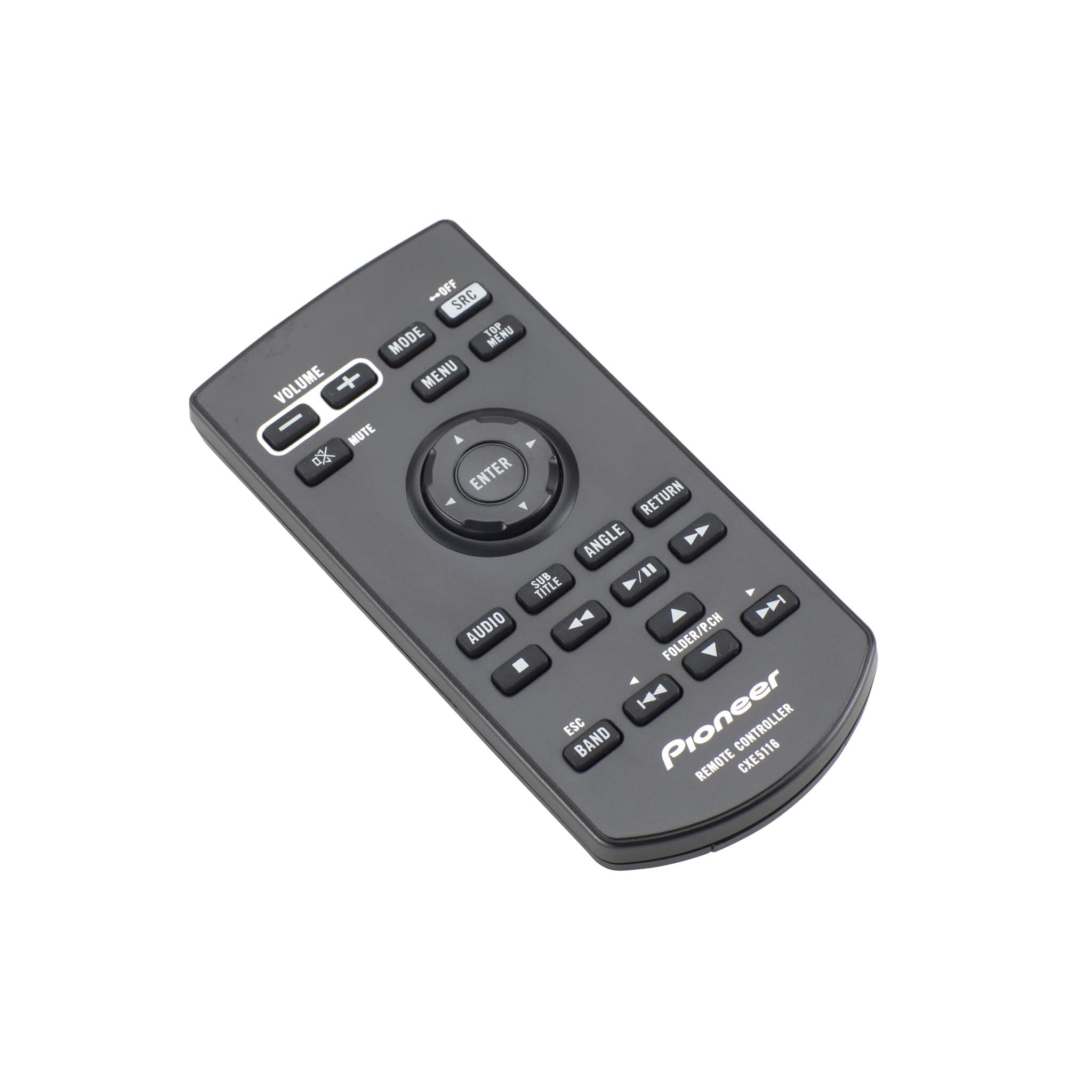

Remote Control Included |
| Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 display colors, 112 key colors |
Device (Non-DIN/Modular Unit) Modular, Non-DIN |
| Dimmer Automatic with vehicle illumination, Timer Controlled, Manual |
Display Off Mode Yes |
| Home Screen Customization Yes |
Monitor Mechanism Fixed |
| Resolution WVGA (800 x 480) |
Screen Size/Aspect Ratio 6.8″/16:9 |
| Touch Screen Resistive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Dual Phone Connection Yes |
| Hands-Free Yes |
Microphone Included Included |
| Phone Registation 5-phone |
Secure Simple Pairing (SSP) Yes |
| Serial Port Profile (SPP) Yes |
Sound Retriever Air Mode 1/Mode 2/Off |
TUNER
| Best Station Memory Yes |
HD Radio™ Built In,Artist Experience,Multicasting |
| Local Seek tuning Yes |
Presets 18 FM, 6 AM |
| RDS Yes |
SiriusXM-Ready™ (Tuner Sold Separately) Yes |
INTEGRATION
| Amazon Alexa Paired with Pioneer Vozsis |
Android Auto™ Wired USB Connection |
| Apple® CarPlay Wired USB Connection |
Mobile Operating System Android,Apple iOS |
| Music Playback (MTP) Yes |
Pandora® Source through iPhone/Android |
| Pioneer App Compatibility Vozsis Android, Vozsis iPhone |
Siri® Eyes Free (VR) (Internet Required) iPhone Only |
| Spotify Streaming audio through iPhone/Android via Bluetooth or AUX input |
Voice Control Yes |
| Weblink Yes |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB MP3 Audio Playback,WMA Audio Playback,WAV Audio Playback (Hi-Res),AAC Audio Playback,FLAC Audio Playback (Hi-Res) |
Audio Video Playback via USB .avi,.mpg/mpeg,.divx,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts/.m2ts/.mts,H.263,H.264 |
| Image Display Via USB BMP,JPEG,PNG |
AUDIO
| Advanced Sound Retriever Mode-1/Mode-2/Off |
Audio Bass Boost Yes |
| Auto EQ (CD-MC20 Microphone sold separately) Yes |
Automatic Level Control Mode-1/Mode-2/Off |
| Balance Yes |
Built-in Amplifier MOSFET 50 W x 4 |
| Crossover Network Mode HPF/Band Pass/LPF |
Crossover Standard Mode HPF/LPF |
| Customizable Graphic Equalizer 13 Band |
DA Converter 24 Bit |
| Digital Signal Processor Built In |
Easy EQ (EEQ) Preset Equalizer Yes |
| Listening Position Selector Yes |
Loudness High/Mid/Low/Off |
| Speaker Output 4-ch |
Spectrum Analyzer true |
| Subwoofer Control Yes |
Time Alignment Auto,Manual |
EXPANDABILITY
| Audio Video Inputs Input 1 – Backup Camera Dedicated,Input 2 – AUX (Minijack),Input 3 – A/V or 2nd Camera |
OEM Integration iDatalink Maestro RR |
| Parking Assist Lines Yes |
RCA-Video-Output Yes |
| USB At Hideaway unit , USB – Type-A (5V_1.5A) |
USB Direct Control for iPhone® 5s and newer |
