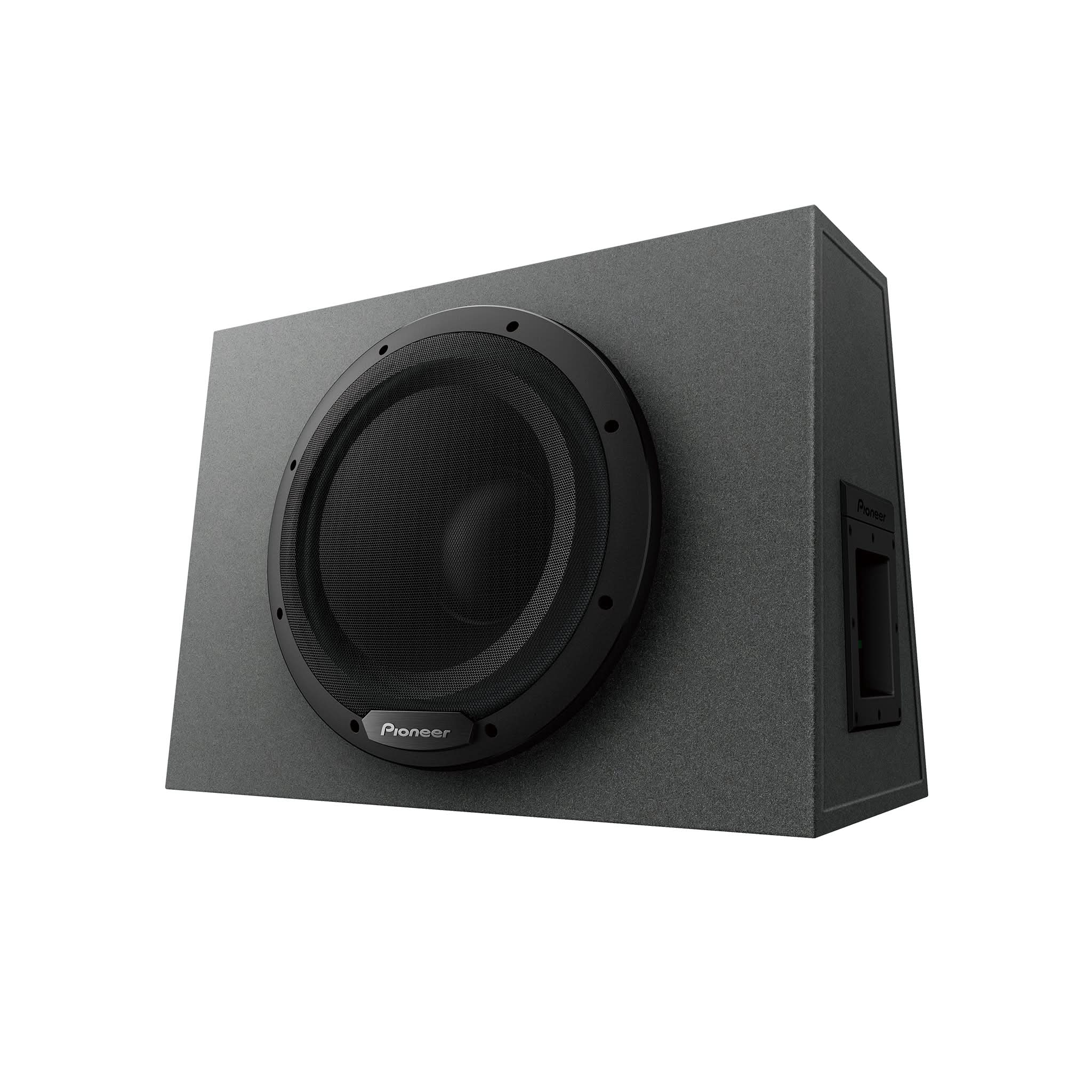

12″ – 1300 W pre-loaded subwoofer, sealed box design and built-in 350 Class-D W amplifier
Features
1300 Watts Max. Power / 150 Watts Nominal Power 12″ woofer
Speaker Efficiency: 114 dB (1W/1M)
Built-in Class-D Amplifier of 350 Watts
Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
Variable Bass Boost : 40 Hz to 100 Hz

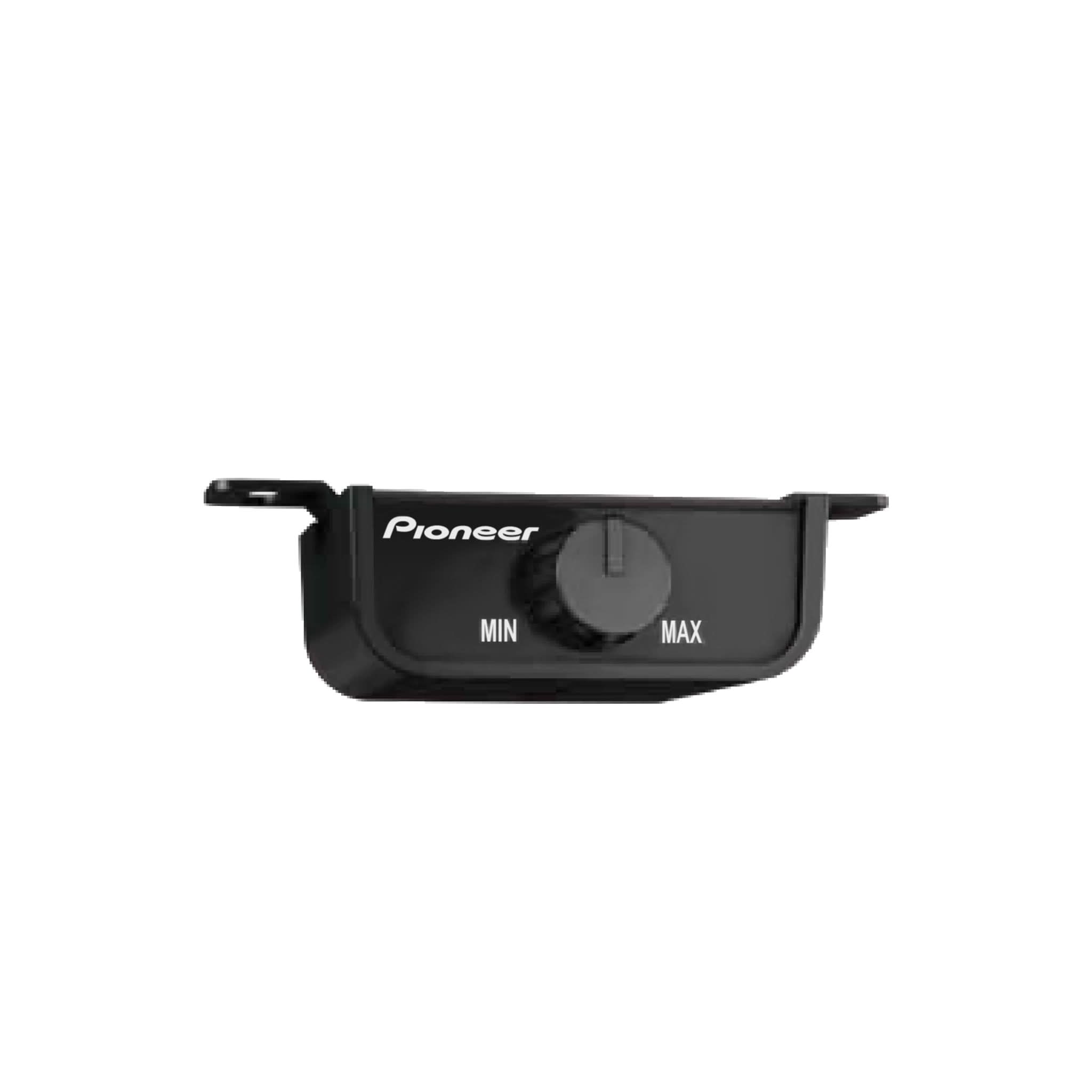

Wired Bass Remote volume control (included)
Box dimensions (WxHxD) : 20.75″ (528mm) x 15.0″ (380mm) x 11.0″ (279mm)
Trapezoidal shape to match rear seat angle
| Amp – Max Current Consumption 13 A | Amp – Power Source 14.4 V DC (10. 6 V to 15.1 V) |
| Bass Boost Yes | Bass Boost – Frequency 40Hz to 100Hz |
| Bass Boost Knob – Wired Yes | Bass Boost – Level 0 to +12 dB |
| Continuous Power Handling (Rms) – Watts 350 | Frequency Response 20 Hz to 125 Hz |
| Input Level @Gain Max 2 V to 6 V | Maximum Peak Power Handling – Watts 1300 |
| Nominal Impedance – Ohm 4-Ohm | Sensitivity (1W/1M) 114 dB |
| Speaker Line Input Sensor 2V+2V/5kOhm | System-Type Powered |
| Amp – Grounding Negative | Built In Amp Yes |
| CarSoundFit Yes | Subwoofer Grille Fully Covered Steel Mesh |
| Woofer Dimensions 12″ |
| Basket Material Stamped Metal | Center Cap Material Polypropylene |
| Cone Material Cellulose fiber | Damper Aramid Fiber |
| Installation Ring ABS | Magnet Material Ferrite |
| Magnet Weight 33.5 oz | Surround Material Urethane |
| Surround Type Rolled | Voice Coil Bobbin Polyimide |
| Voice Coil Type Single Voice Coil | Voice Coil wire Copper |
