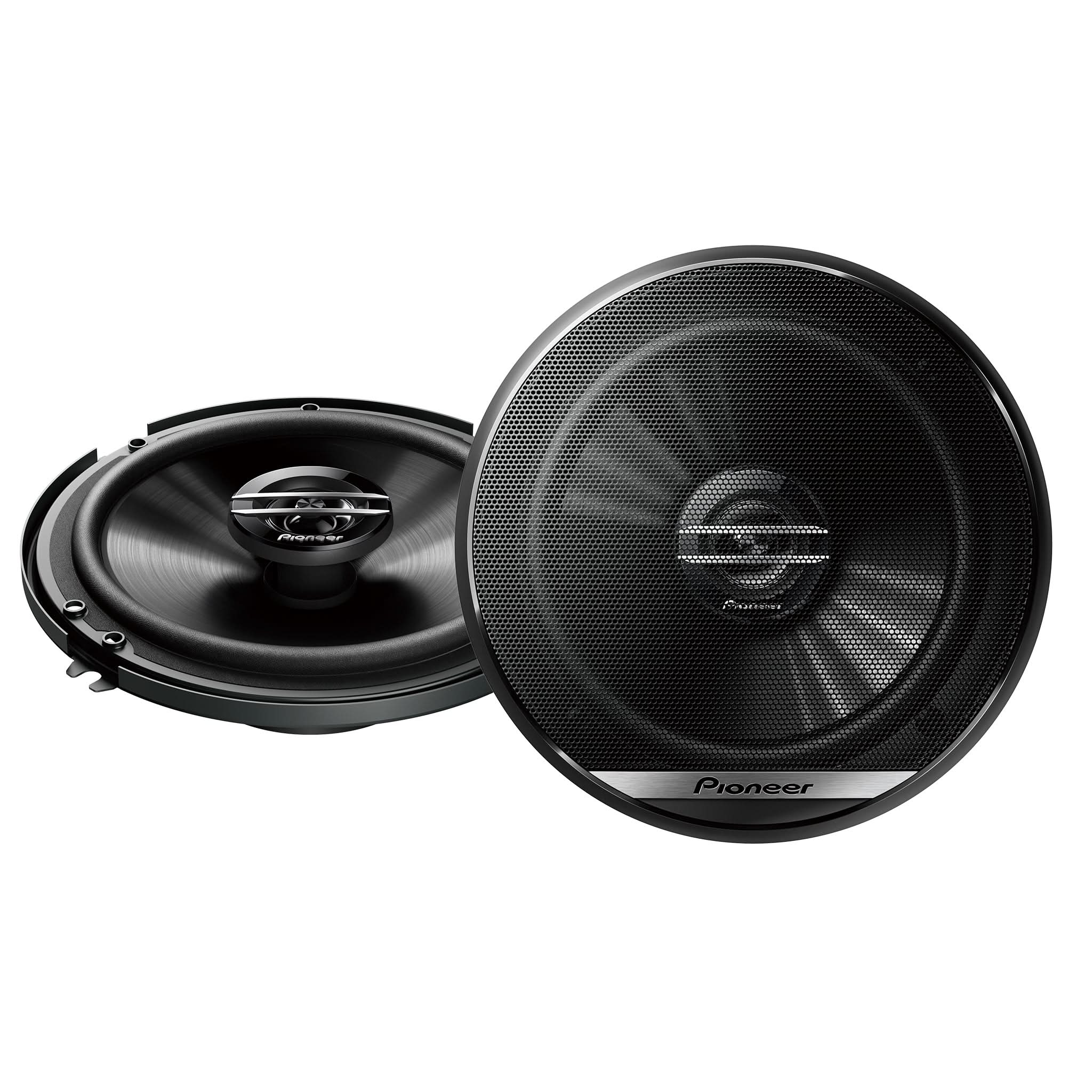

6.5” – 2-way, 300 W Max Power, Mica-reinforced IMPP™ cone, 1.2″ (30 mm) PET tweeter – Coaxial Speakers (pair)
Features
300 Watts Max. Power / 40 Watts Nominal Power
6.5” Mica reinforced IMPP™ cone
30 mm (PET) hard dome tweeter
Frequency range: 31 Hz to 18 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 89 dB (1W/1M)
Patented Pioneer P.F.S.S. Spider
| Continuous Power Handling (Rms) – Watts 40 | Frequency Response 31 Hz to 18 kHz |
| Maximum Peak Power Handling – Watts 300 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 89 dB | System-Type Coaxial 2-way, Balance Dome – Tweeter |
| Cut Out dimensions 5″ | Mounting Depth 1-5/8″ |
| Speaker Grill Included | Tweeter Dimensions 1.18″ |
| Woofer Dimensions 6.5″ |
| Basket Material Metal | Cone Material IMPP – with MICA |
| Damper Poly cotton | Diaphragm Material Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material Ferrite | Magnet Weight 5.5 oz |
| Shorting Ring Material Copper | Surround Material Rubber Coated Cloth |
| Surround Type Rolled | Voice Coil Material Kapton |
| Voice Coil wire Copper | Wire Terminals Lug Type |
