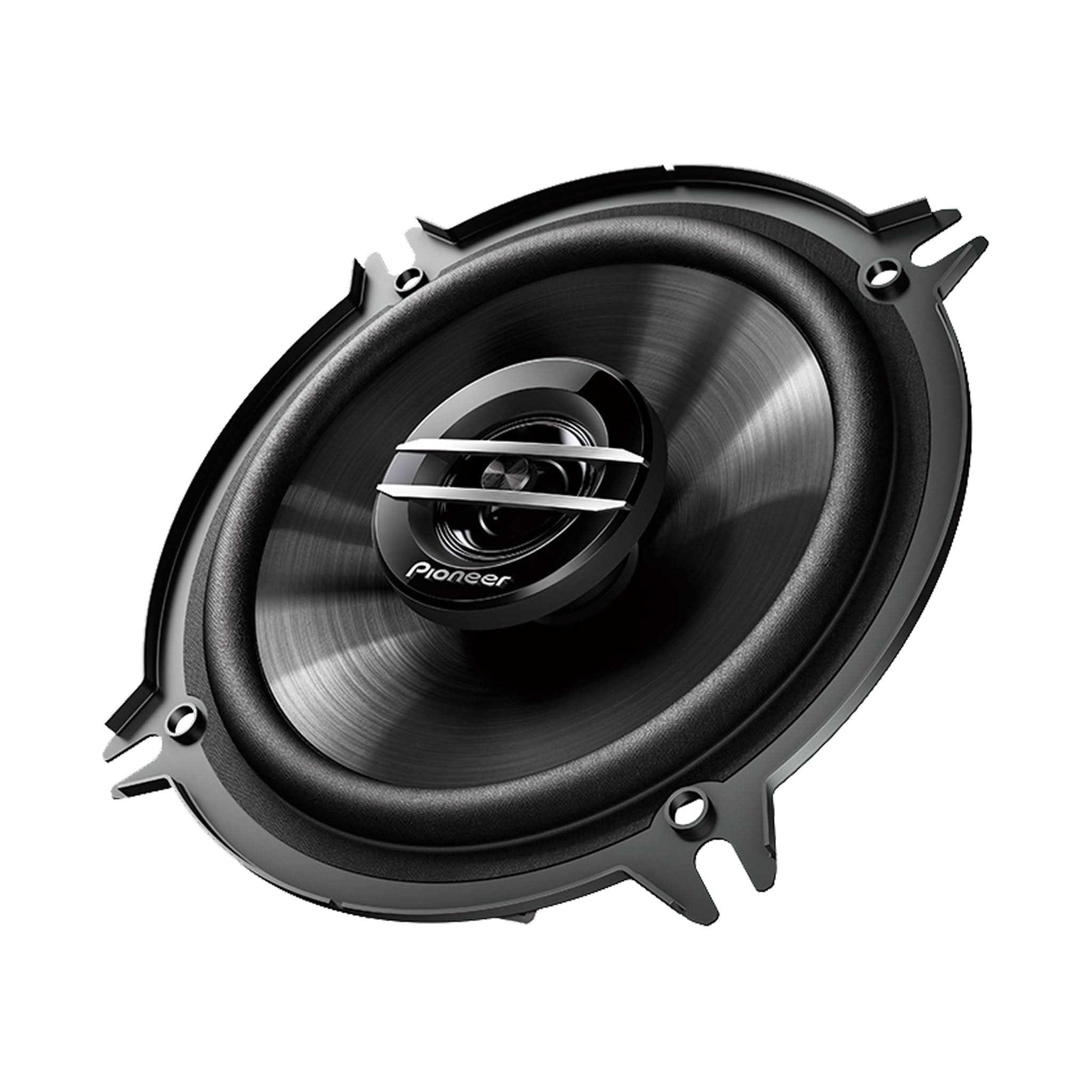

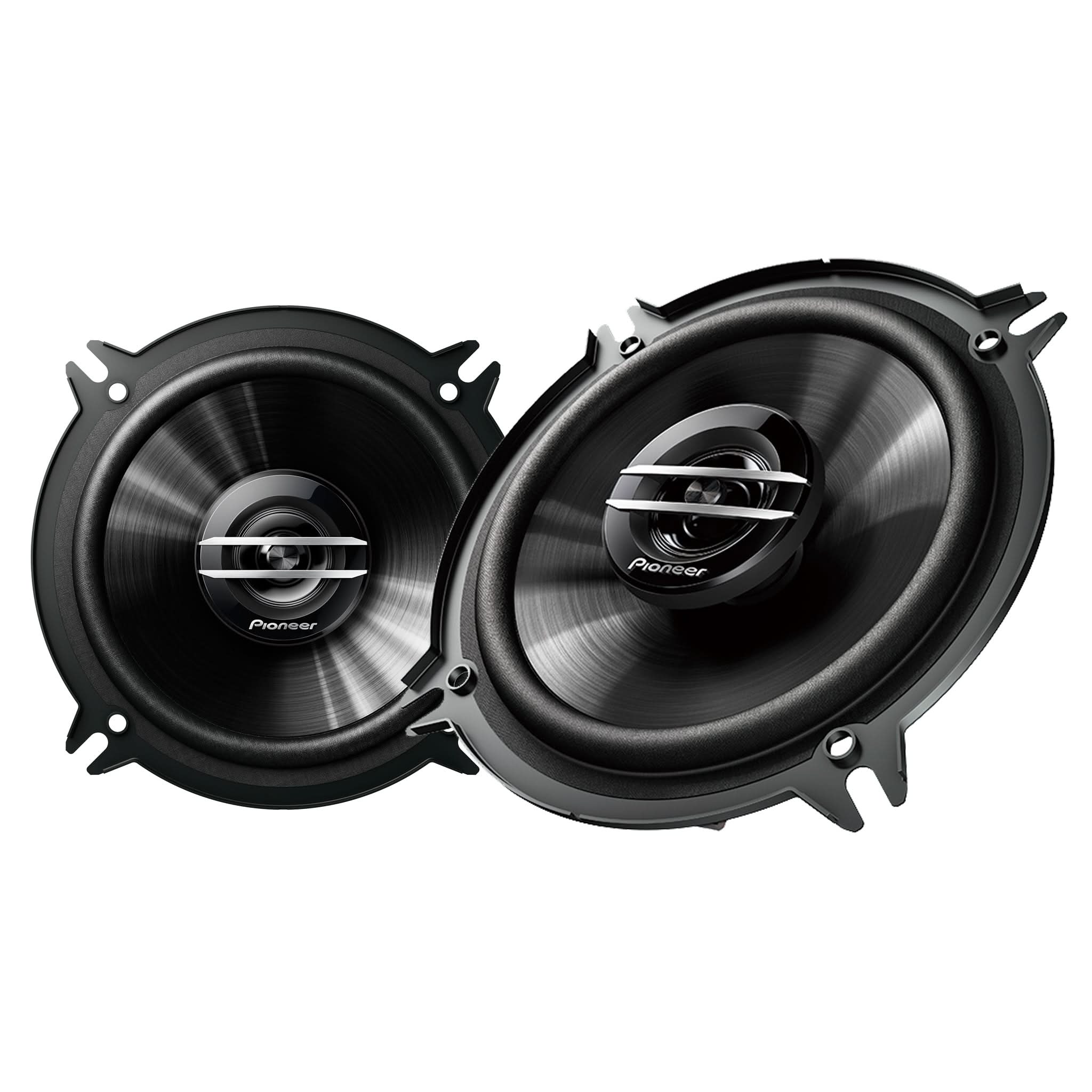

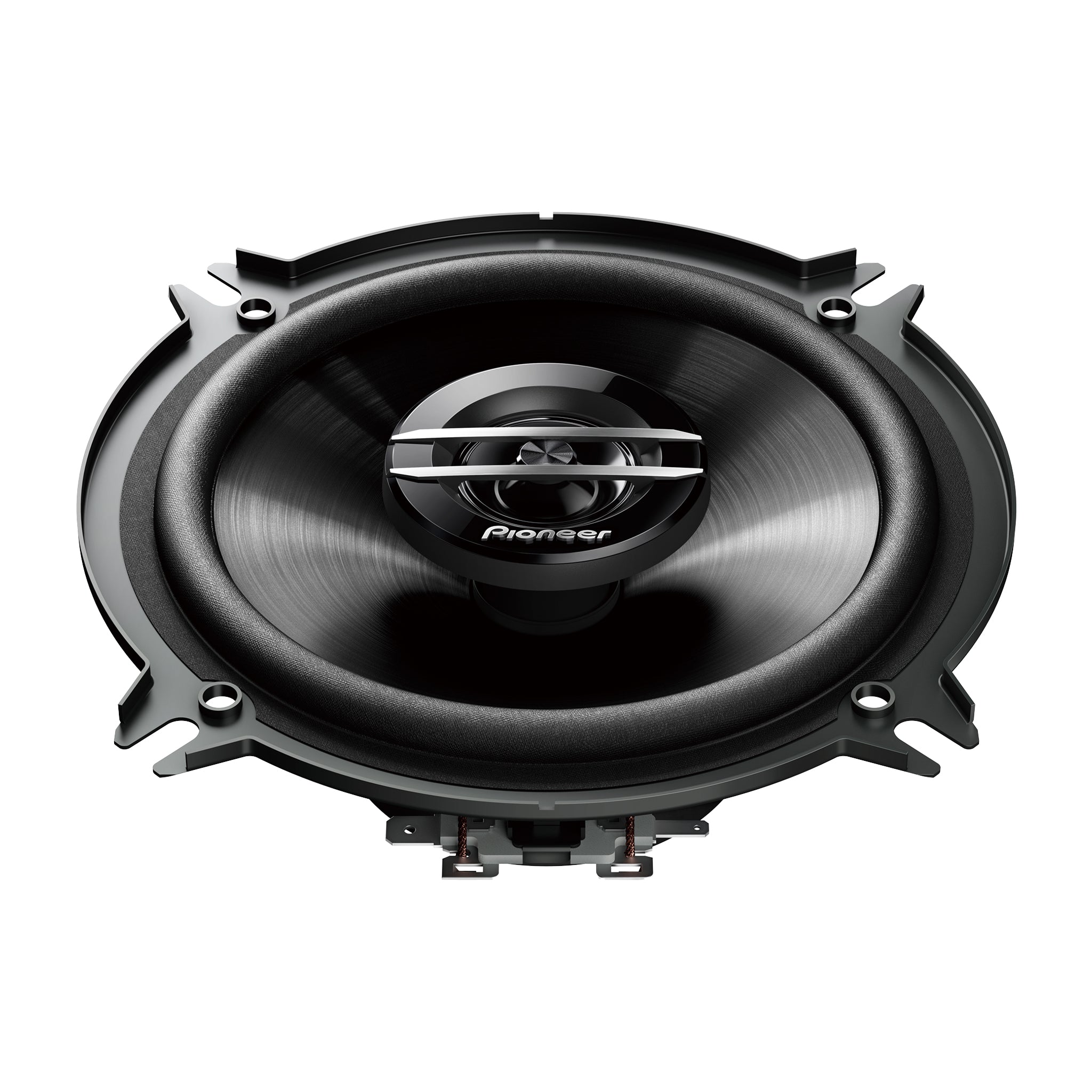

5.25” – 2-way, 250 W Max Power, Mica-reinforced IMPP™ cone, 1.2″ (30 mm) PET tweeter – Coaxial Speakers (pair)
Features
250 Watts Max. Power / 35 Watts Nominal Power
5.25” Mica reinforced IMPP™ cone
30 mm (PET) hard dome tweeter
Frequency range: 33 Hz to 24 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 88 dB (1W/1M)
Patented Pioneer P.F.S.S. Spider
| Continuous Power Handling (Rms) – Watts 35 | Frequency Response 33 Hz to 24 kHz |
| Maximum Peak Power Handling – Watts 250 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 88 dB | System-Type Coaxial 2-way, Balance Dome – Tweeter |

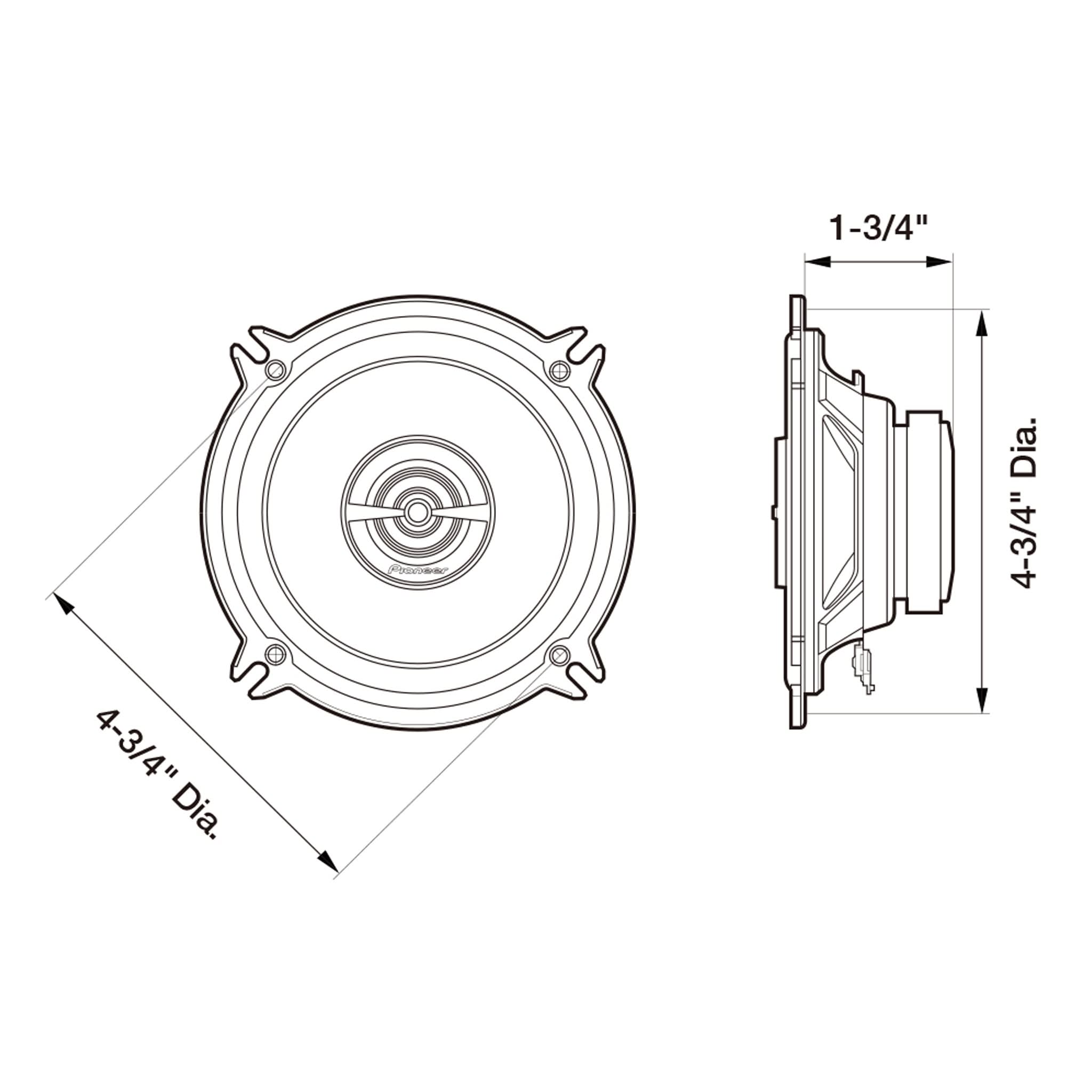

| Cut Out dimensions 4-3/4″ | Mounting Depth 1-3/4″ |
| Tweeter Dimensions 1.19″ | Woofer Dimensions 5.25″ |
| Basket Material Metal | Cone Material IMPP – with MICA |
| Damper Poly cotton | Diaphragm Material Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material Ferrite | Magnet Weight 3.9 oz |
| Shorting Ring Material Copper | Surround Material Rubber Coated Cloth |
| Surround Type Rolled | Voice Coil Material Kapton |
| Voice Coil wire Copper | Wire Terminals Lug Type |
