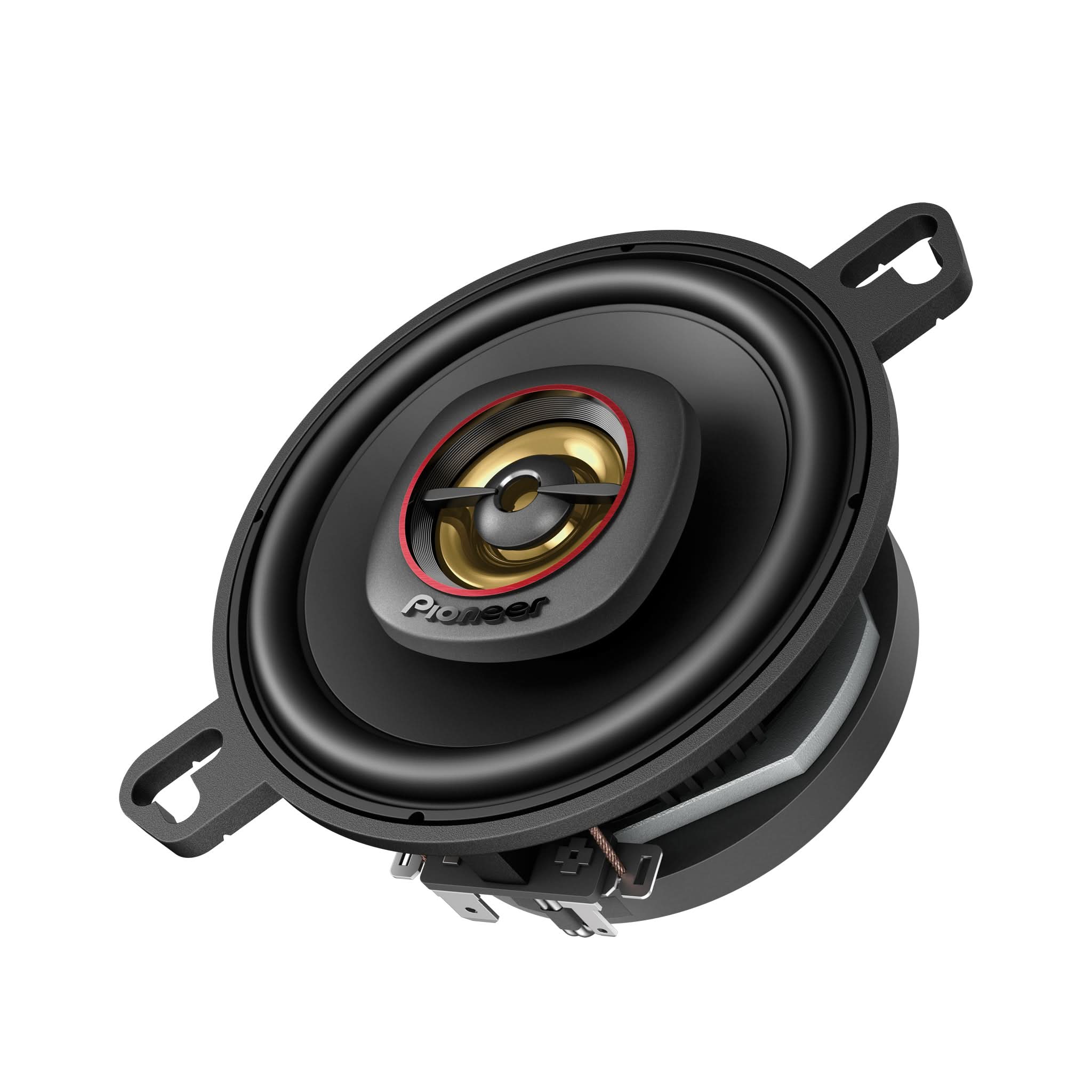

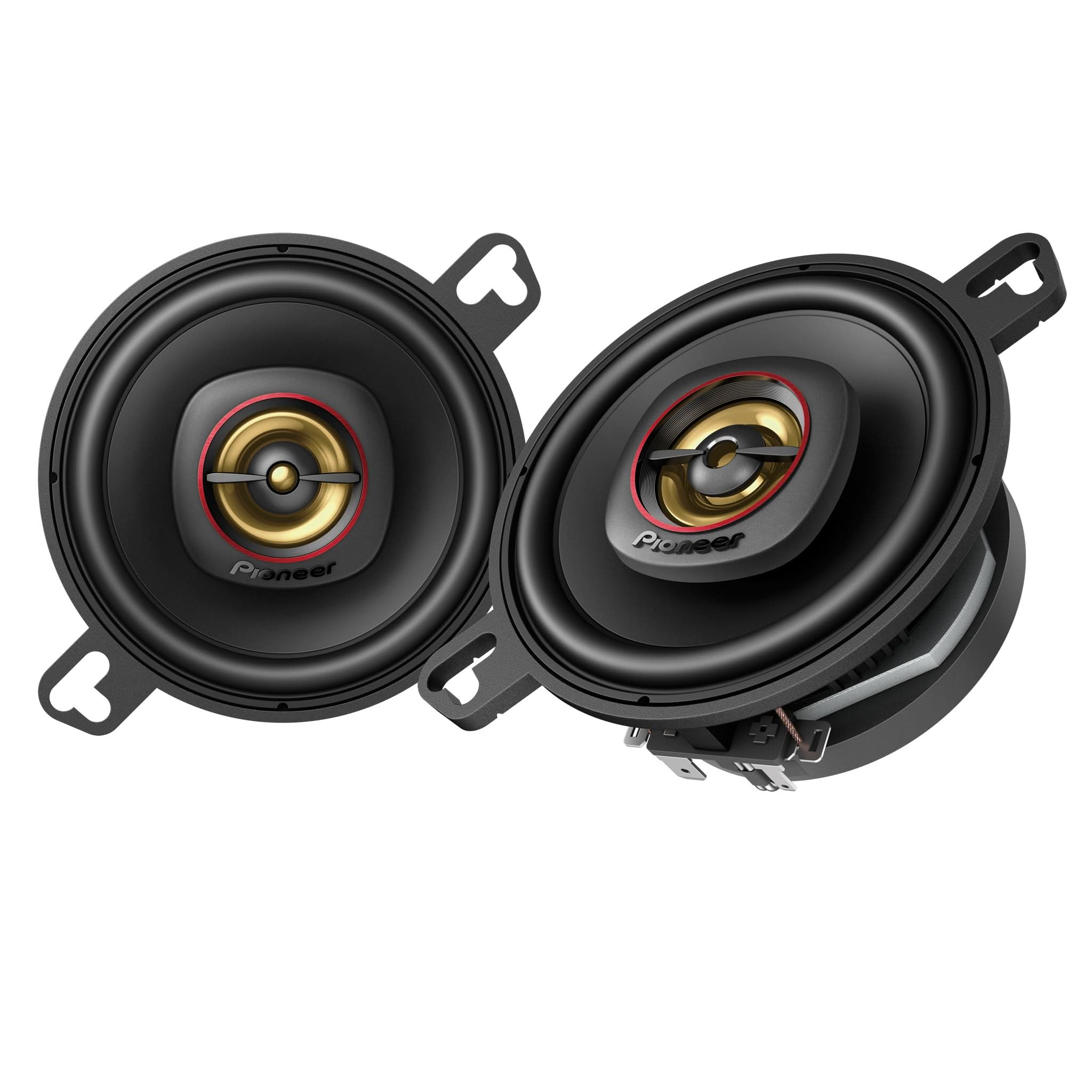

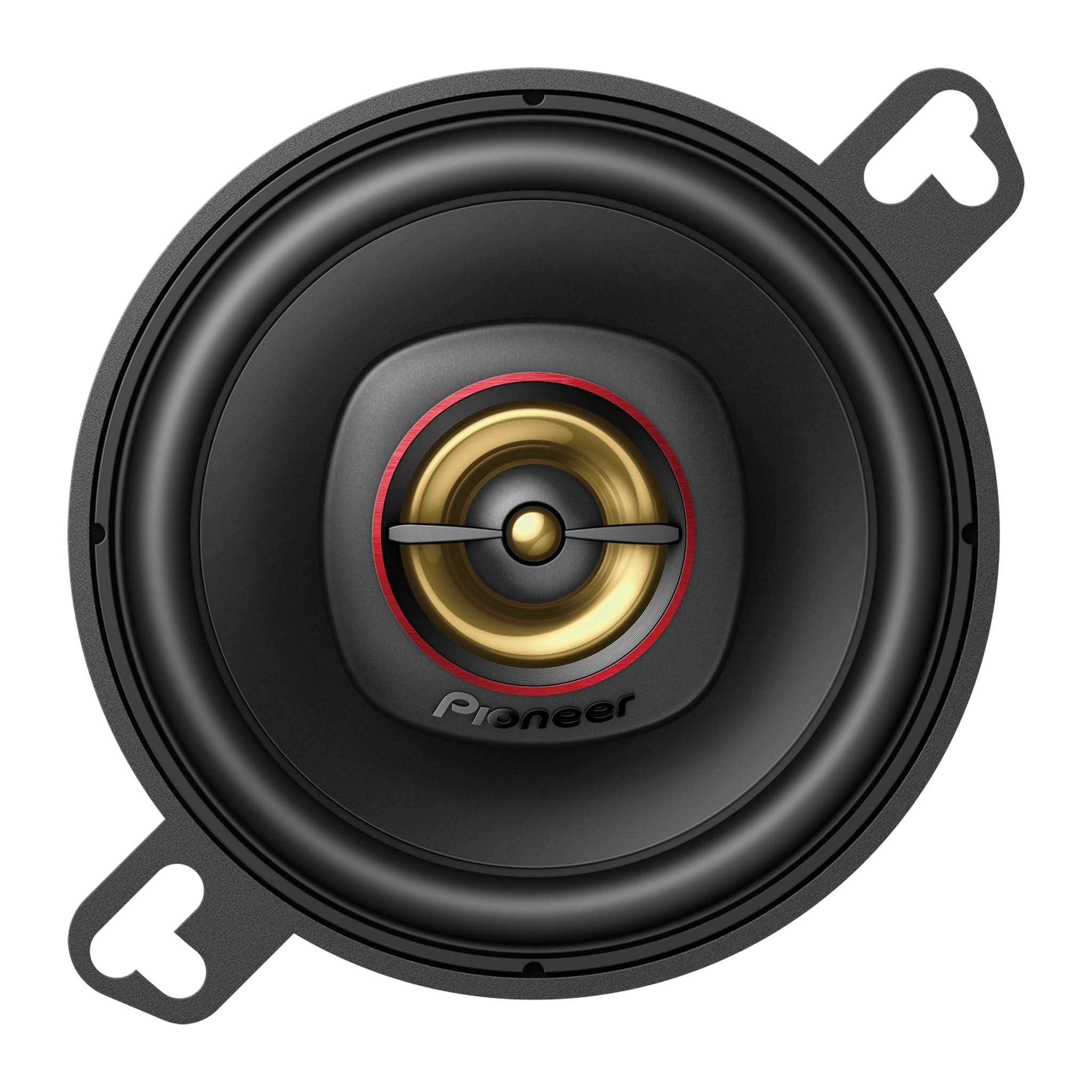

3.5″ – 2-way, 450 W Max Power, Carbon/Mica-reinforced IMPP™ cone, 21mm PEI hard dome tweeter – Coaxial Speakers (pair)
Features
450 Watts Max. Power / 100 Watts Nominal Power (with in-line filter)
3.5″ Carbon and Mica reinforced IMPP™ cone
21mm polyetherimide (PEI) hard dome tweeter
Frequency range: 52 Hz to 33 kHz (without filter)
Frequency range: 850 Hz to 33 kHz (with filter)
Speaker Efficiency: 85 dB (1W/1M)
| Continuous Power Handling (Rms) – Watts 100 | Frequency Response 52 Hz to 33 kHz, 850 Hz to 33kHz – with inline packaged crossover network |
| Maximum Peak Power Handling – Watts 450 with packaged crossover network | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 85 dB | System-Type Coaxial 2-way, Balance Dome – Tweeter |
| Cut Out dimensions 3″ | Mounting Depth 1-3/8″/34.9mm |
| Basket Material Resin | Cone Material Carbon and Mica reinforced Injected Molded Polypropylene – IMPP |
| Damper Aramid Fiber | Diaphragm Material Polyetherimide (PEI) – Tweeter |
| Magnet Material Ferrite – Woofer, Neodymium – Tweeter | Magnet Weight 4.5 oz – Woofer, 0.1 oz – Tweeter |
| Surround Material Rubber | Surround Type Rolled |
| Voice Coil Material Glass Imide | Voice Coil Type Single Voice Coil |
| Voice Coil wire Copper | Wire Terminals Lug Type |
