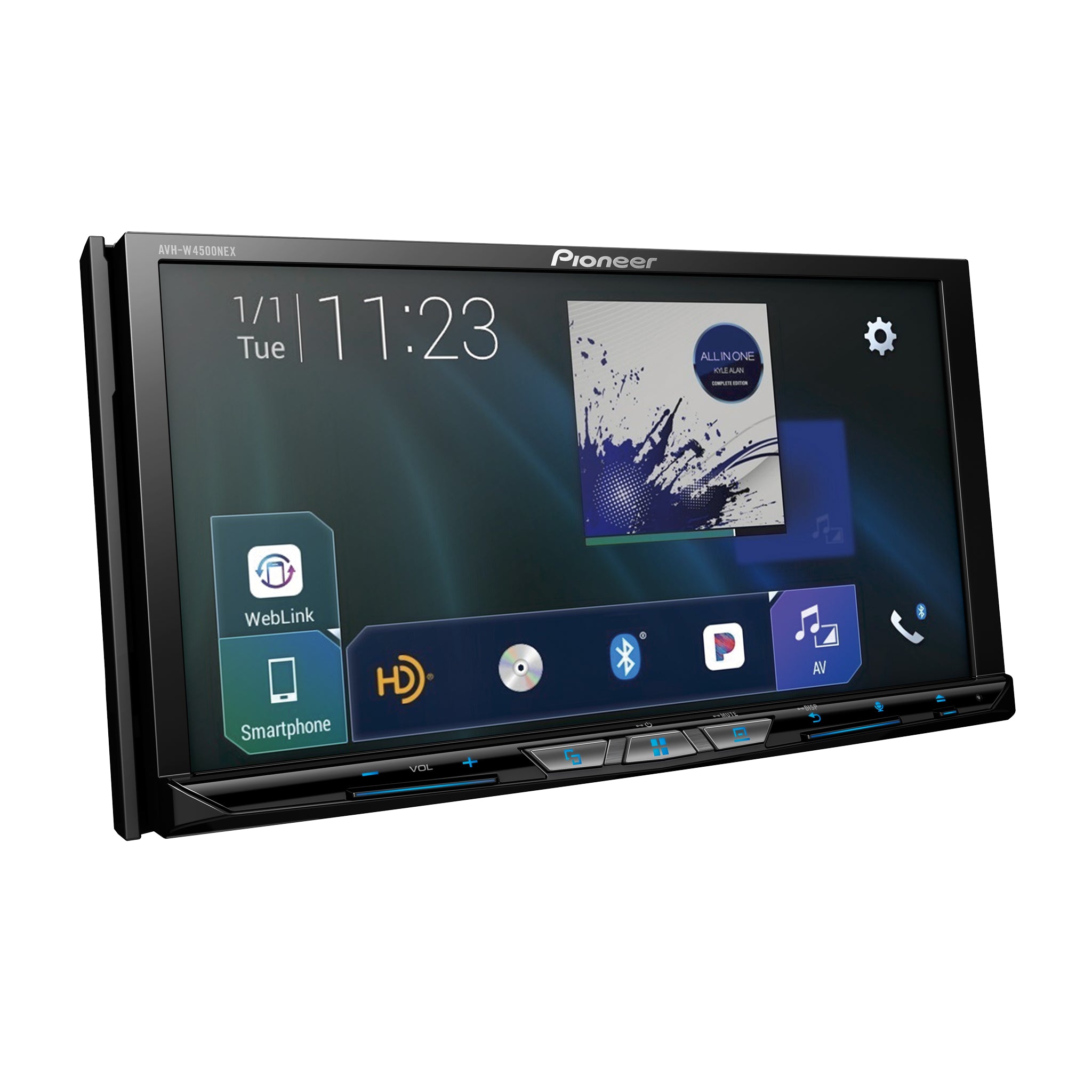

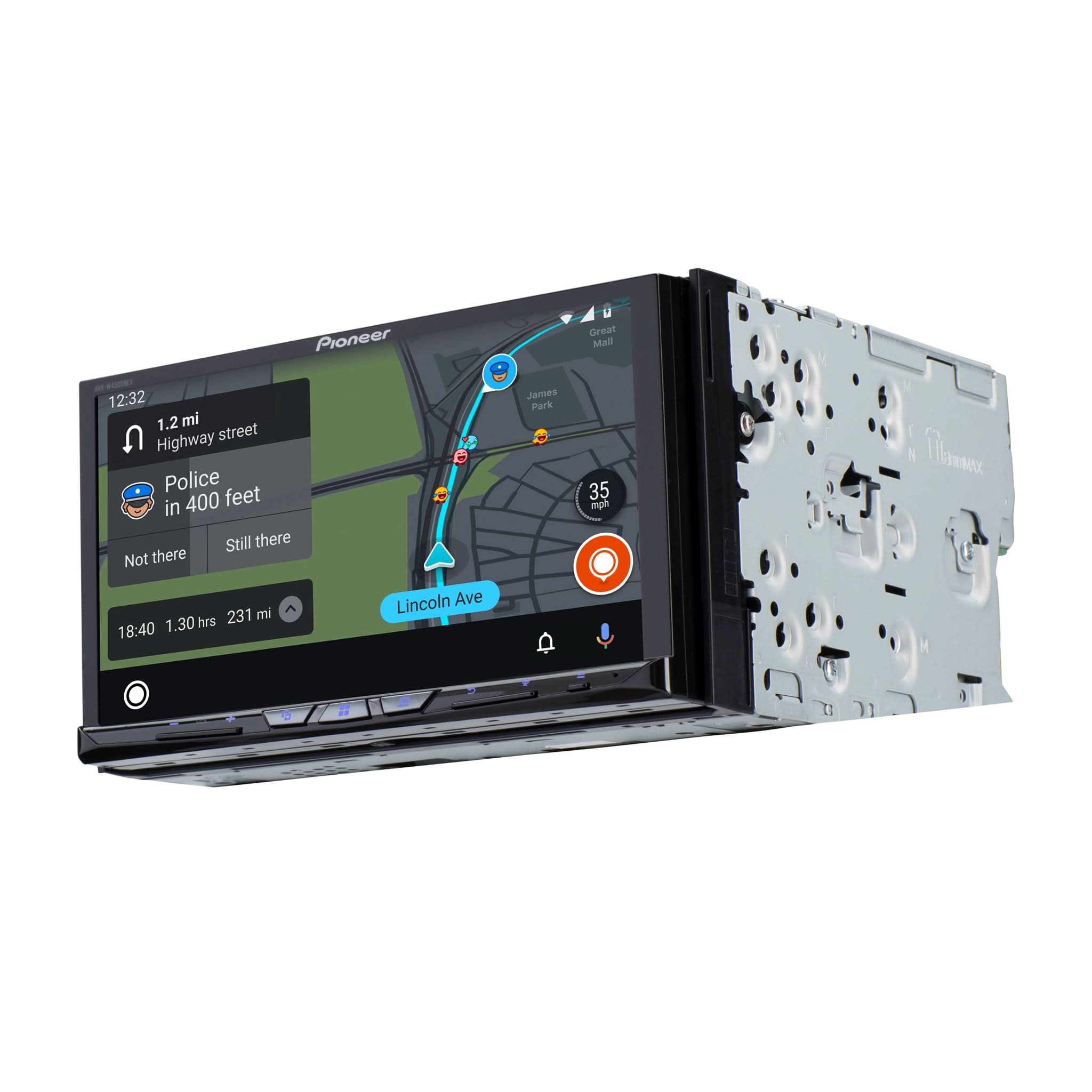

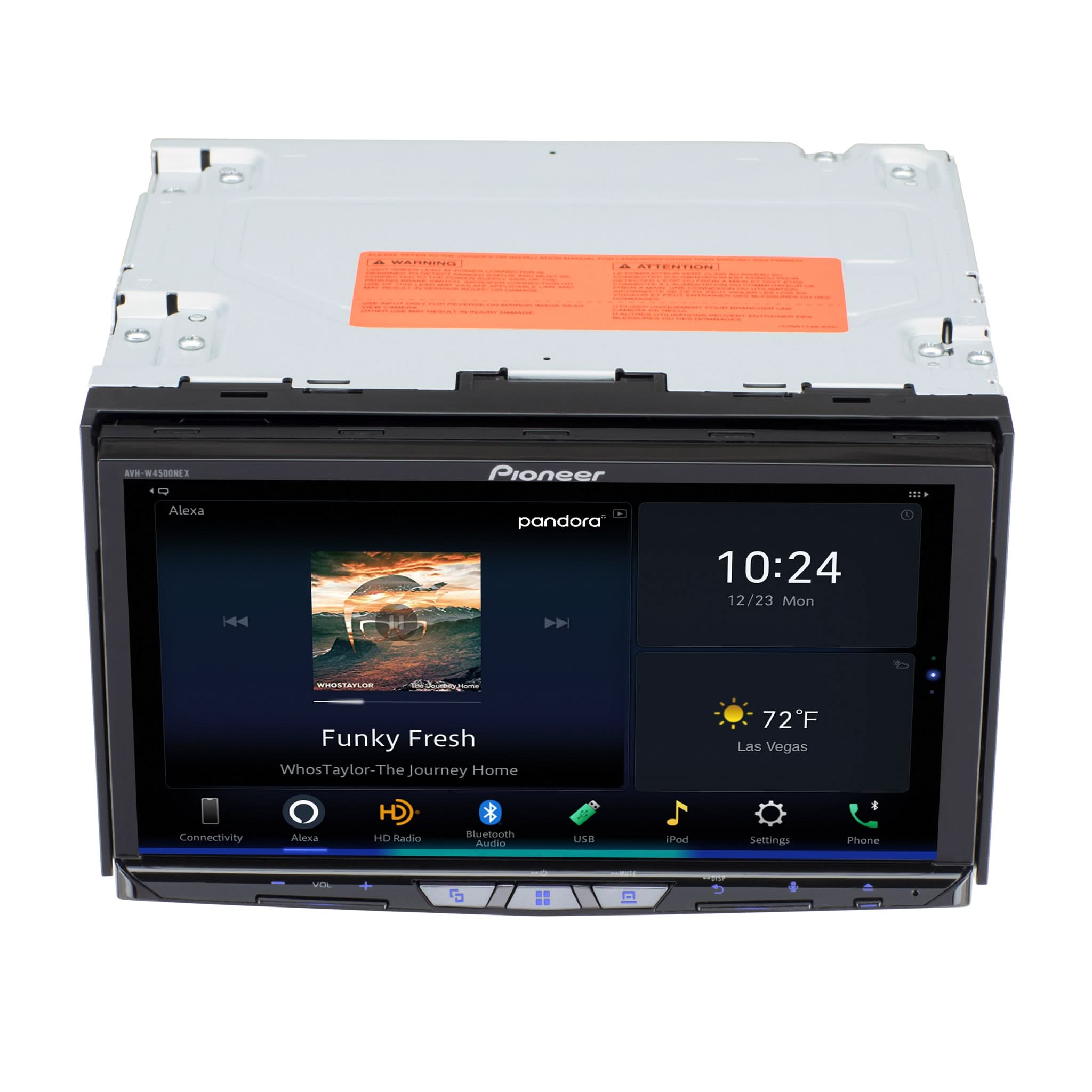

7.0″– CD/DVD player, Apple CarPlay®, Android Auto™, Pioneer Vozsis with Alexa app., Bluetooth® – Multimedia Receiver with built-in Wifi® and dual-zone control.
Features
Double-Din chassis with 7.0″ WXGA display

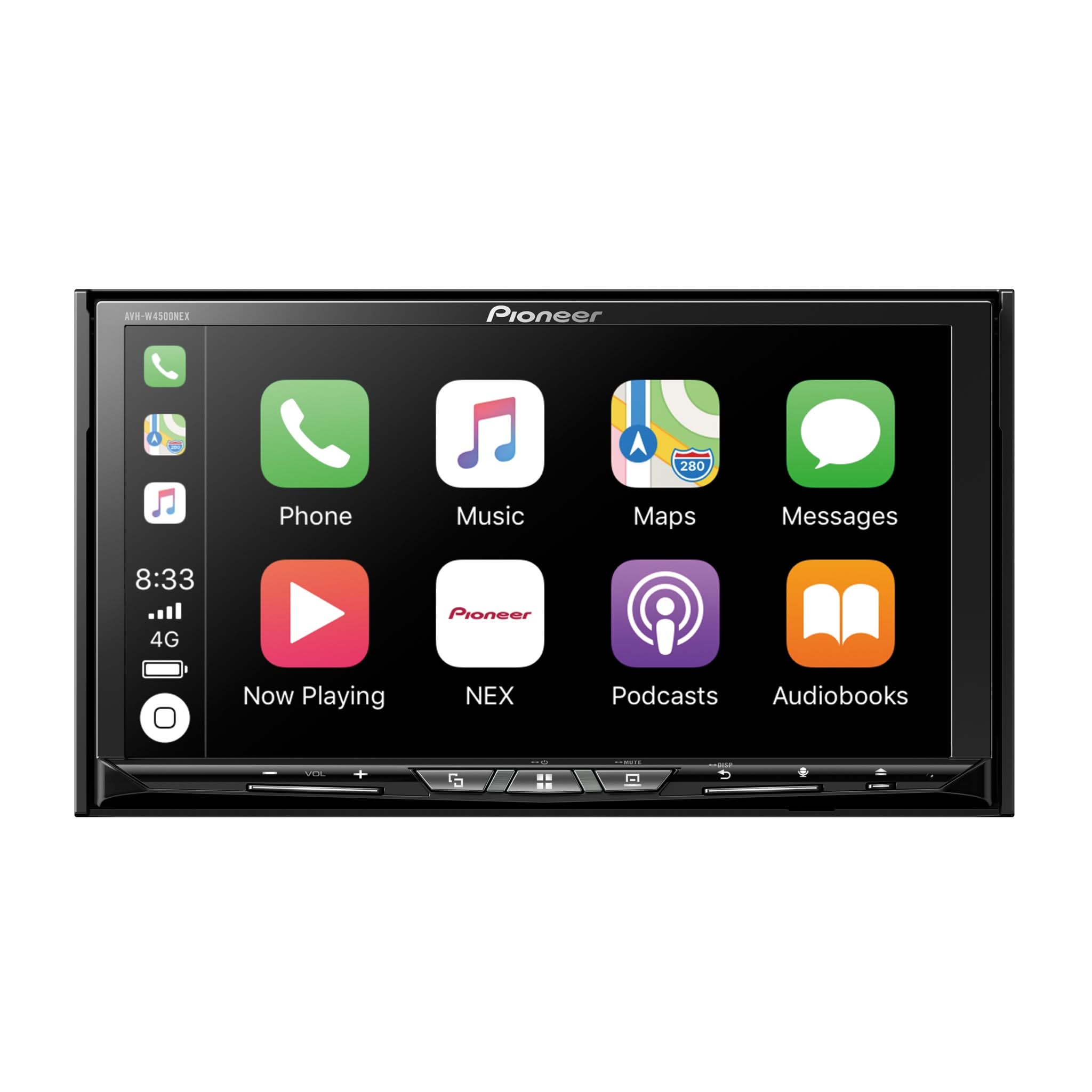

Apple CarPlay® (Wired, Wireless)
Android Auto™ (Wired, Wireless)
Pioneer Vozsis with Alexa app.
HD Radio™ and SiriusXM-Ready™
iDatalink® Maestro™ compatible
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
RCA Preamp Outputs 6-ch |
| RCA Preout Voltage 4V |
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Detachable |
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified) |
| Music Browser SD Card,USB1,USB2 |
Remote Control Included |
| Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 display colors, 112 key colors |
Device (Non-DIN/Modular Unit) 2-DIN |
| Dimmer Automatic with vehicle illumination, Timer Controlled, Manual |
Display Off Mode Yes |
| Home Screen Customization Yes |
Monitor Mechanism Motorized |
| Resolution WVGA (800 x 480) |
Screen Size/Aspect Ratio 7″/16:9 |
| Touch Screen Resistive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Dual Phone Connection Yes |
| Hands-Free Yes |
Microphone Included Included |
| Phone Registation 5-phone |
Secure Simple Pairing (SSP) Yes |
| Serial Port Profile (SPP) Yes |
Sound Retriever Air Mode 1/Mode 2/Off |
TUNER
| Best Station Memory Yes |
HD Radio™ Built In,Artist Experience,Multicasting |
| Local Seek tuning Yes |
Presets 18 FM, 6 AM |
| RDS Yes |
SiriusXM-Ready™ (Tuner Sold Separately) Yes |
INTEGRATION
| Amazon Alexa Paired with Pioneer Vozsis |
Android Auto™ Wireless Connection or Wired USB Connection |
| Apple® CarPlay Wireless Connection or Wired USB Connection |
Mirroring Miracast-Android Phones Only |
| Mobile Operating System Android,Apple iOS |
Pandora® Source through iPhone/Android |
| Pioneer App Compatibility Vozsis Android, Vozsis iPhone |
Siri® Eyes Free (VR) (Internet Required) iPhone Only |
| Spotify With Apple CarPlay or Android Auto |
Voice Control Yes |
| Weblink Yes |
DIGITAL MEDIA PLAYBACK
| Audio Playback via CD MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback,CD Audio Playback |
Audio Playback via DVD MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback |
| Audio Playback via SD AAC Audio Playback,FLAC Audio Playback,MP3 Audio Playback,WAV Audio Playback,WMA Audio Playback |
Audio Playback via USB MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback,FLAC Audio Playback (Hi-Res),WAV Audio Playback (Hi-Res) |
| Audio Video Playback Via CD-R/CD-RW AVI Audio Video Playback,DivX Audio Video Playback,DVD Audio Video Playback |
Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW AVI Audio Video Playback,DVD Audio Video Playback,DivX Audio Video Playback |
| Audio Video Playback via SD .f4V,.3gp,.avi,.flv,.mkv,.mov,.mp4,.mpg/mpeg,.vob,.wmv/.asf,H.263,H.264 |
Audio Video Playback via USB .f4V,.3gp,.avi,.flv,.mkv,.mov,.mp4,.mpg/mpeg,.vob,.wmv/.asf,H.263,H.264 |
| Image Display via SD JPEG |
Image Display Via USB JPEG |
AUDIO
| Advanced Sound Retriever Mode-1/Mode-2/Off |
Audio Bass Boost Yes |
| Auto EQ (CD-MC20 Microphone sold separately) Yes |
Automatic Level Control Mode-1/Mode-2/Off |
| Auto Sound Levelizer (ASL) Yes |
Balance Yes |
| Built-in Amplifier MOSFET 50 W x 4 |
Crossover Network Mode HPF/Band Pass/LPF |
| Crossover Standard Mode HPF/LPF |
Customizable Graphic Equalizer 13 Band |
| DA Converter 24 Bit |
Digital Signal Processor Built In |
| Easy EQ (EEQ) Preset Equalizer Yes |
Listening Position Selector Yes |
| Loudness High/Mid/Low/Off |
Speaker Output 4-ch |
| Spectrum Analyzer Yes |
Subwoofer Control Yes |
| Time Alignment Auto,Manual |
EXPANDABILITY

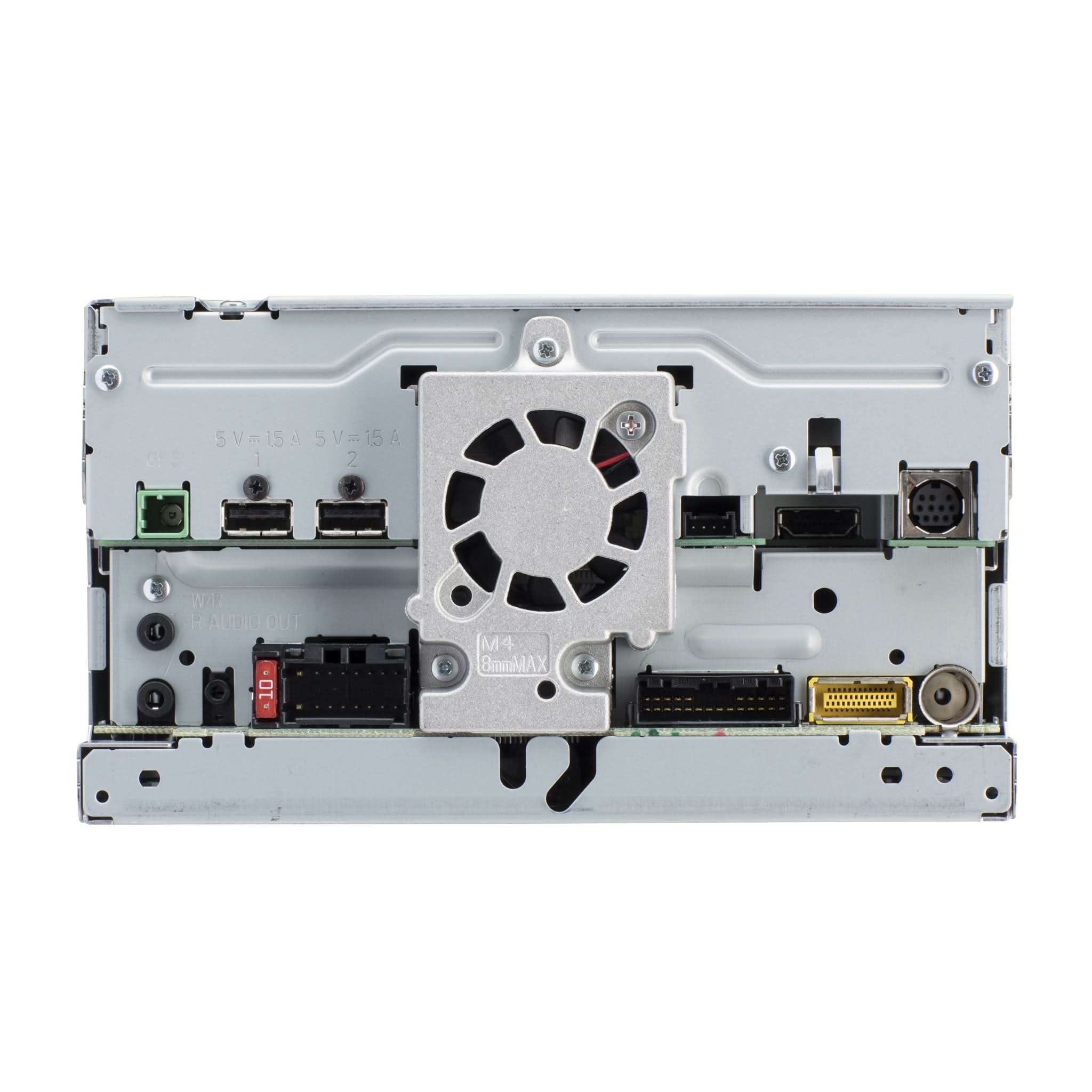

| Audio Video Inputs Input 1 – Backup Camera Dedicated,Input 2 – AUX (Minijack),Input 3 – A/V or 2nd Camera,Input 4 – HDMI Standard (Type A) |
Dual Zone Rear-Seat Entertainment Yes |
| OEM Integration iDatalink Maestro RR |
Parking Assist Lines Yes |
| RCA-Video-Output Yes |
SD/SDHC Memory Card Slot SDXC |
| USB Dual Rear Type-A (5 V, 1-1/2 A) |
USB Direct Control for iPhone® 5s and newer |
